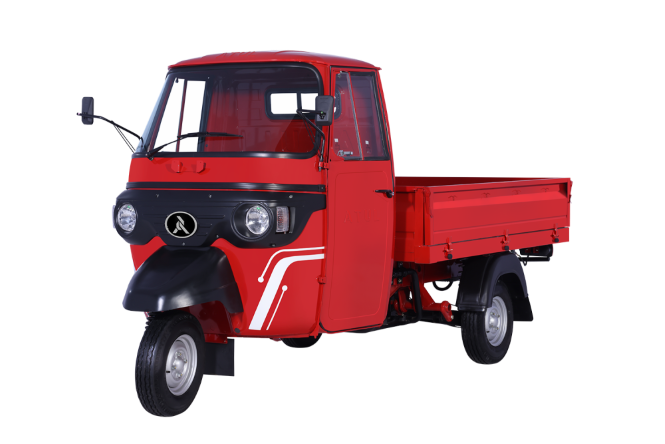

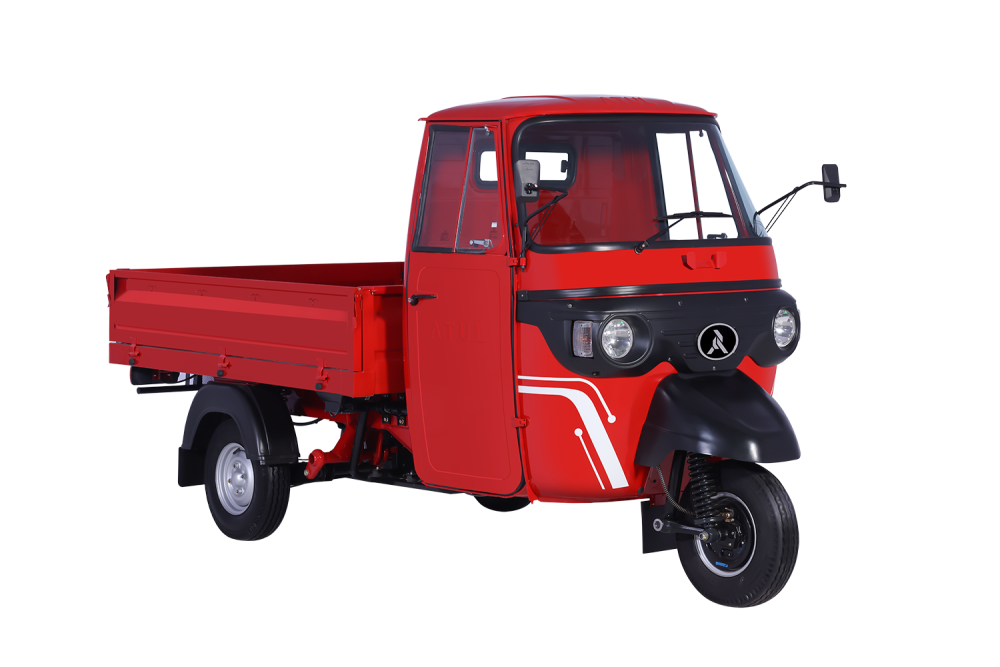

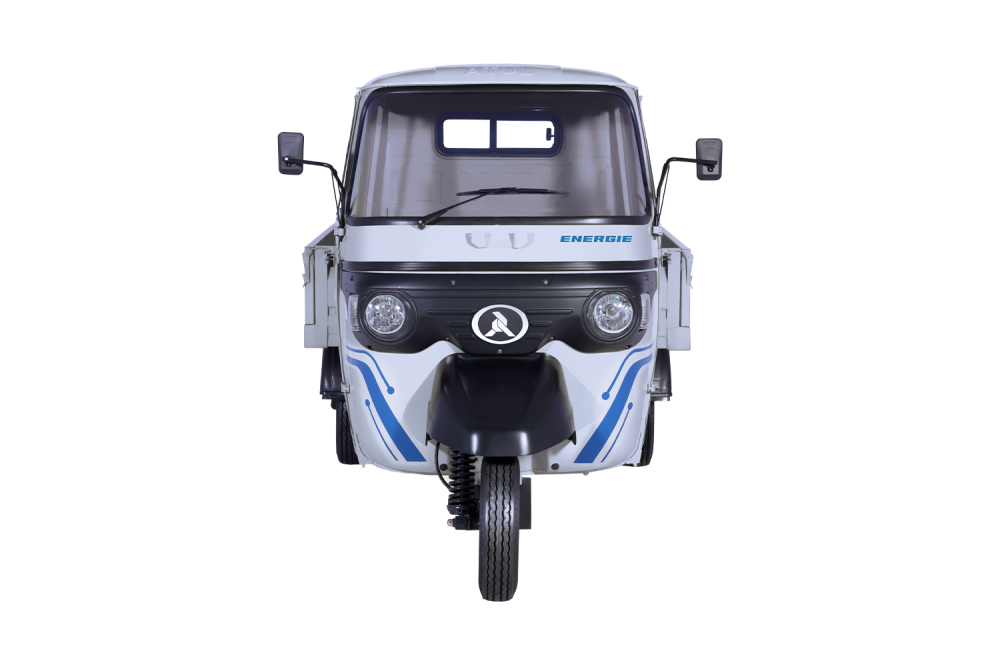

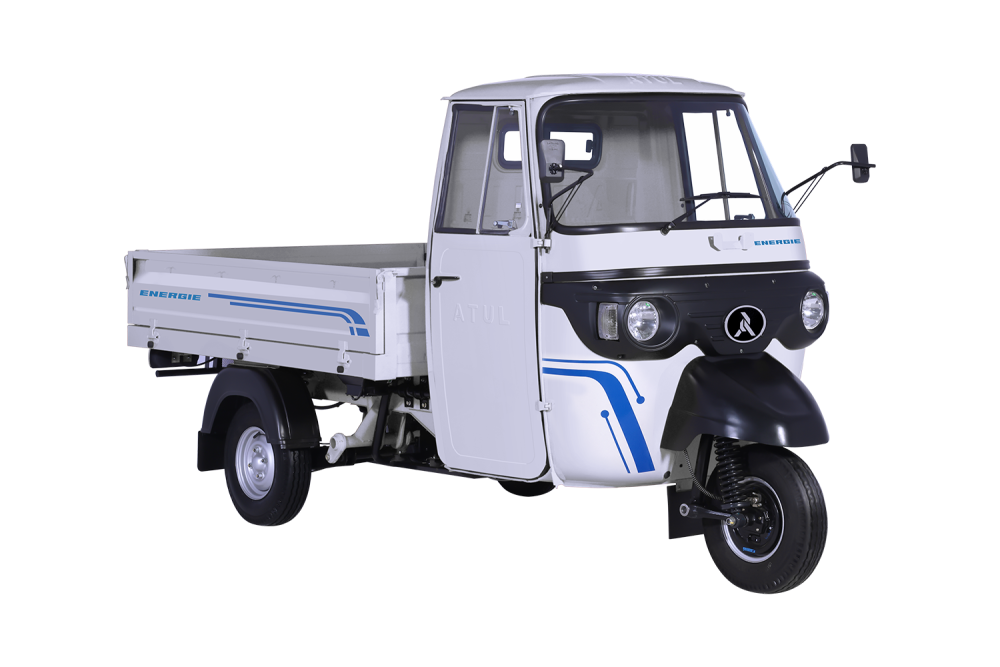

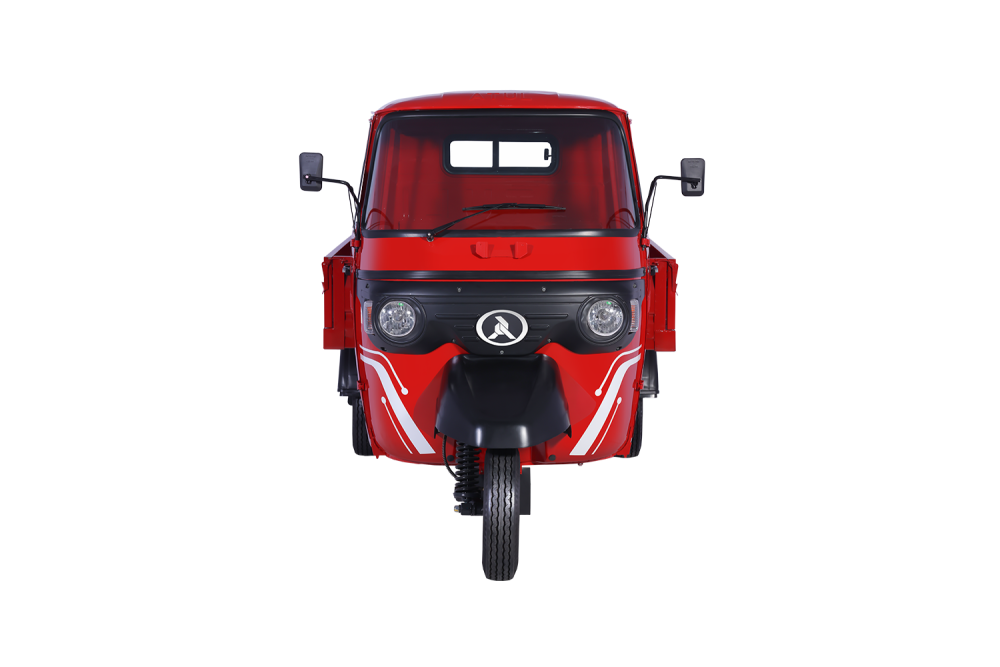

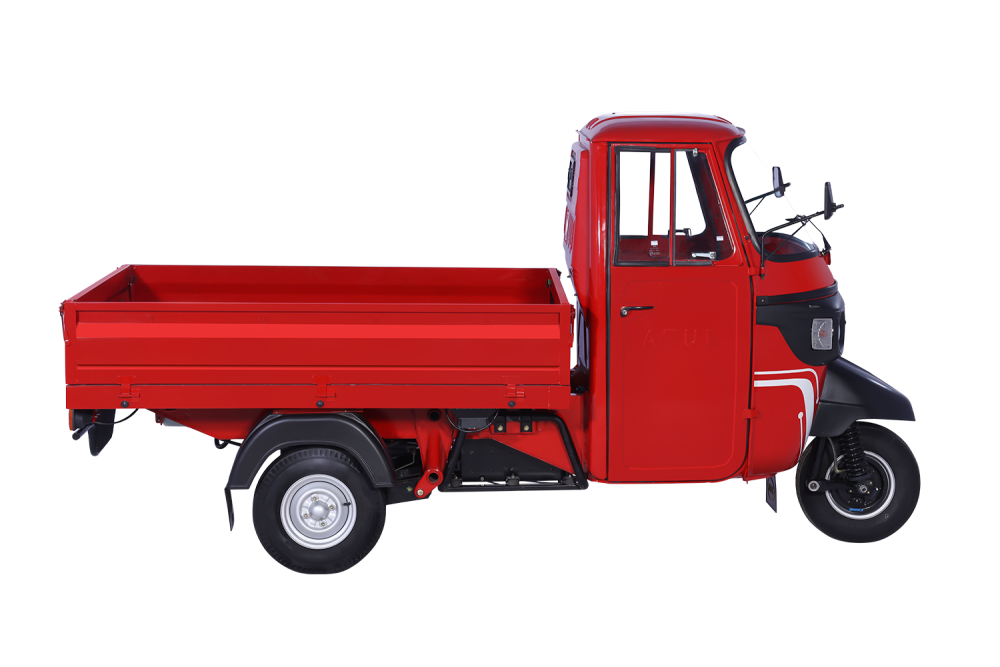

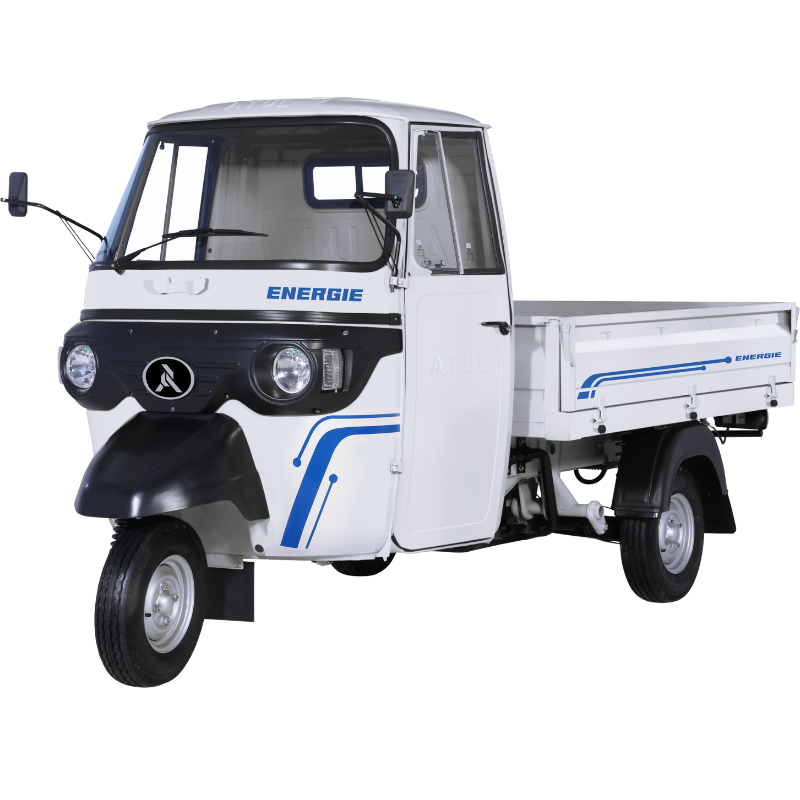

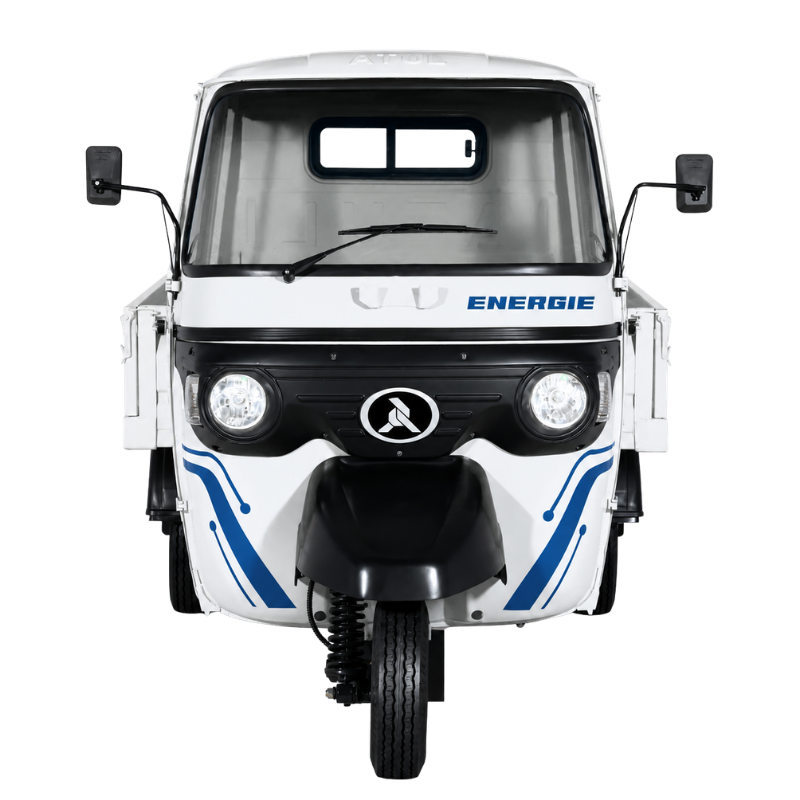

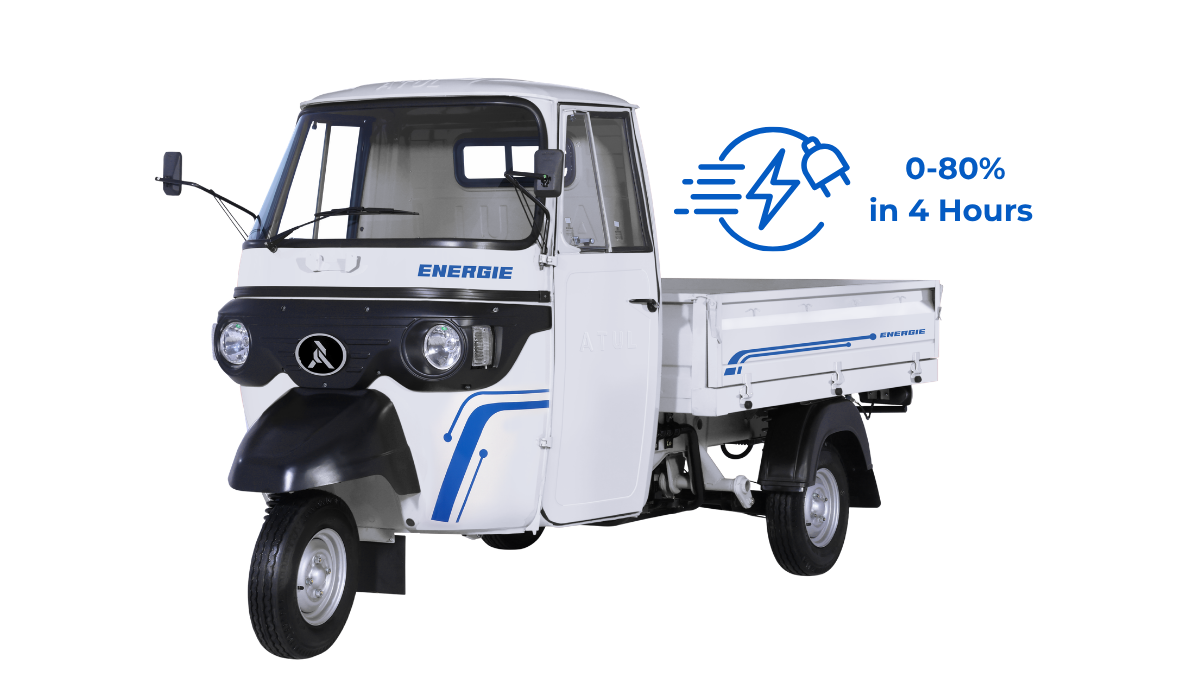

ENERGIE CARGO
Built for Smarter Business Growth
CERTIFIED RANGE
190 Km
CHARGING TIME
6 Hrs
MAXIMUM SPEED
45 Kmph
BATTERY CAPACITY
13.2 kWh
KERB WEIGHT
545 kg

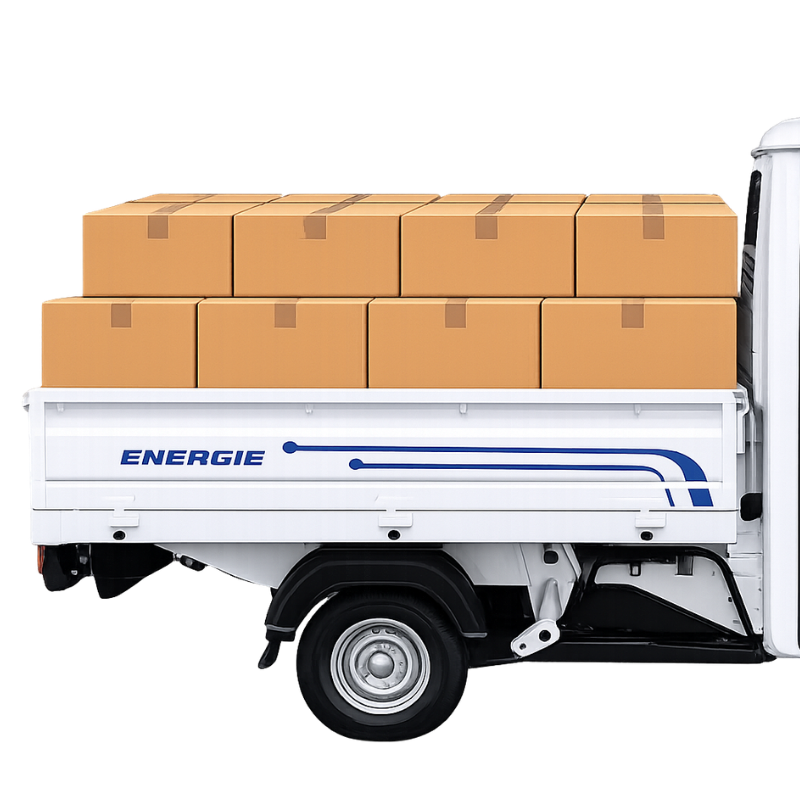

LOADING CAPACITY
500 Kg
Know More
Download Brochure
ATUL EV - ENERGIE CARGO specification
Performance
Steering & Suspension
Brakes & Tyre
Battery Power Pack
Dimensions
Body & Weights
Performance
| Motor Type | – | AC synchronous Motor |
| Power Peak | – | 9.92 kW |
| Peak Torque | – | 40.32 Nm |

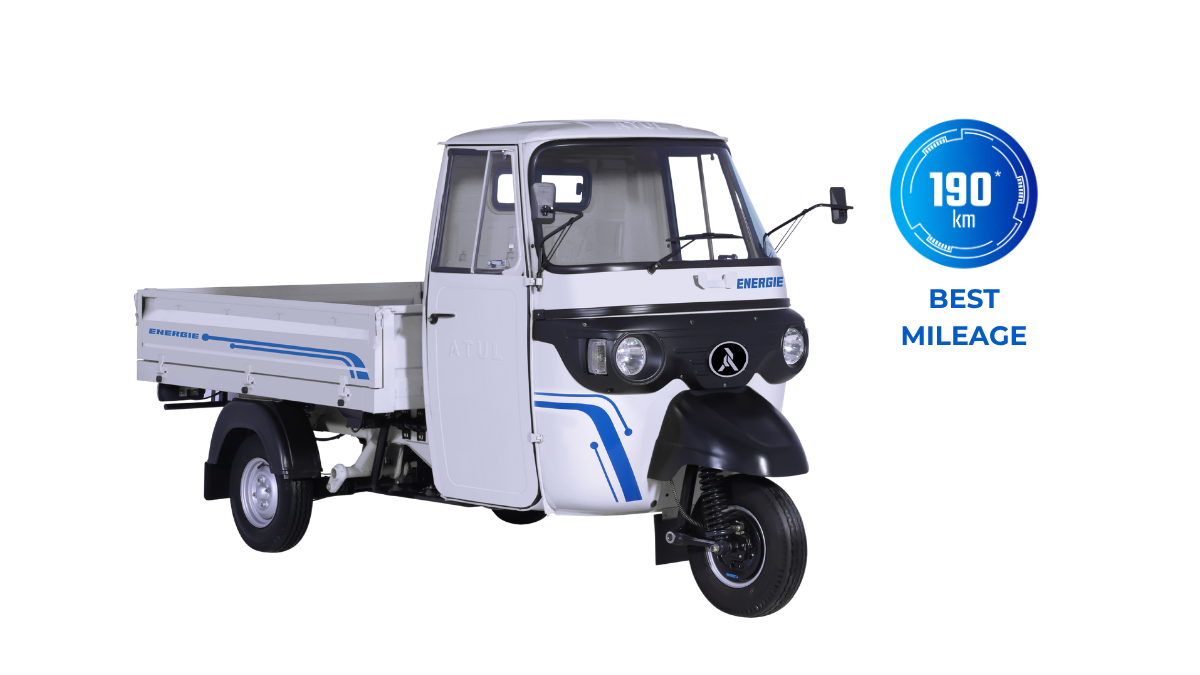

| Certified Range | – | 190 Km |
| Charging Time (0 to 80%) | – | 6 Hrs |

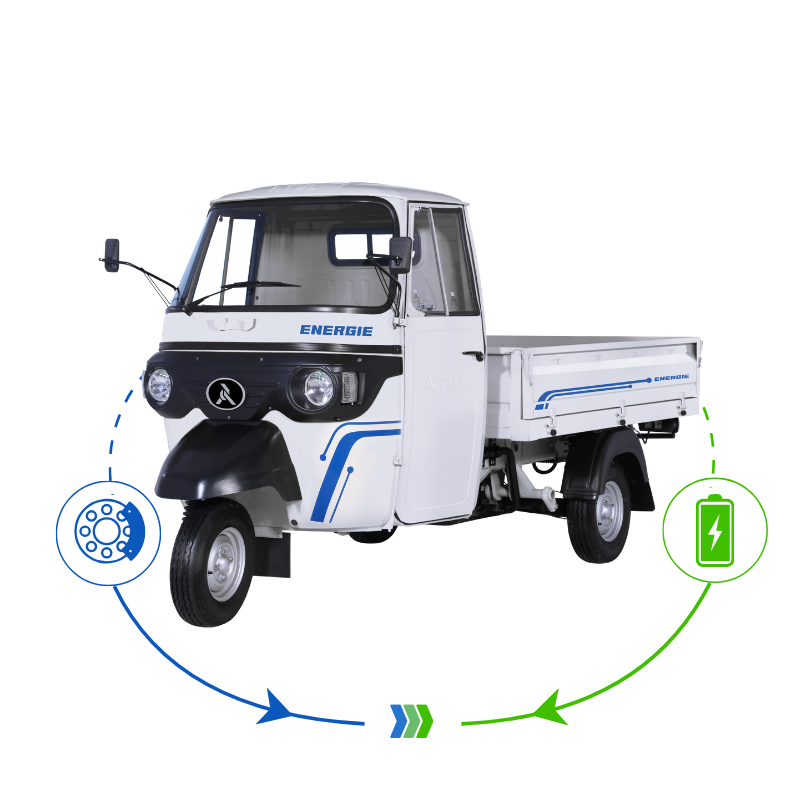

| Regenerative Braking | – | Efficient Energy Recovery |
| Motor, Charger, Battery & All connectors | – | IP 67 Rated Components |

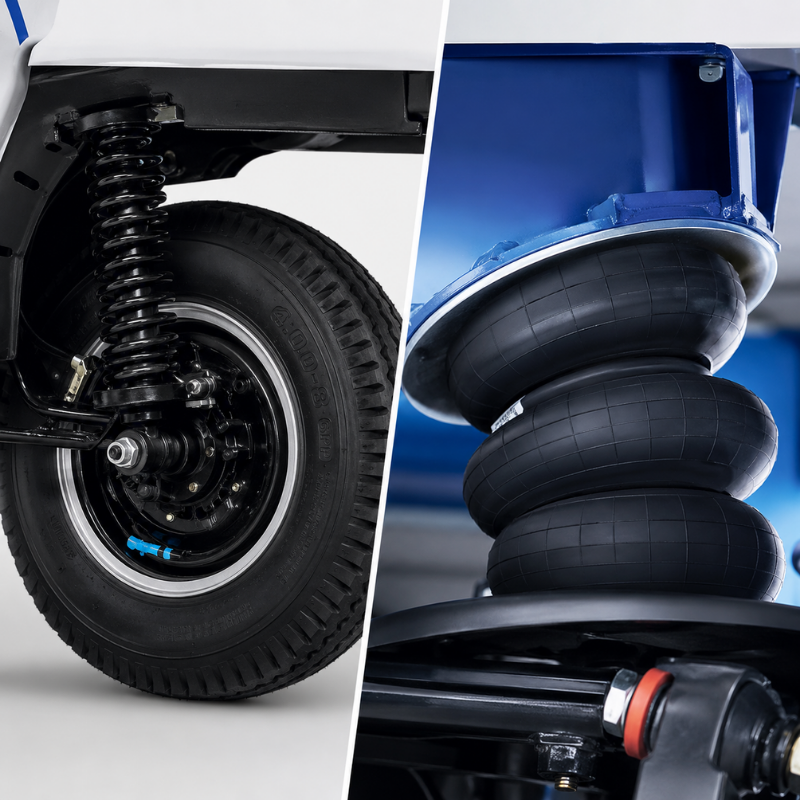

Steering & Suspension
| Suspension type | – | Column and strut type suspension system |

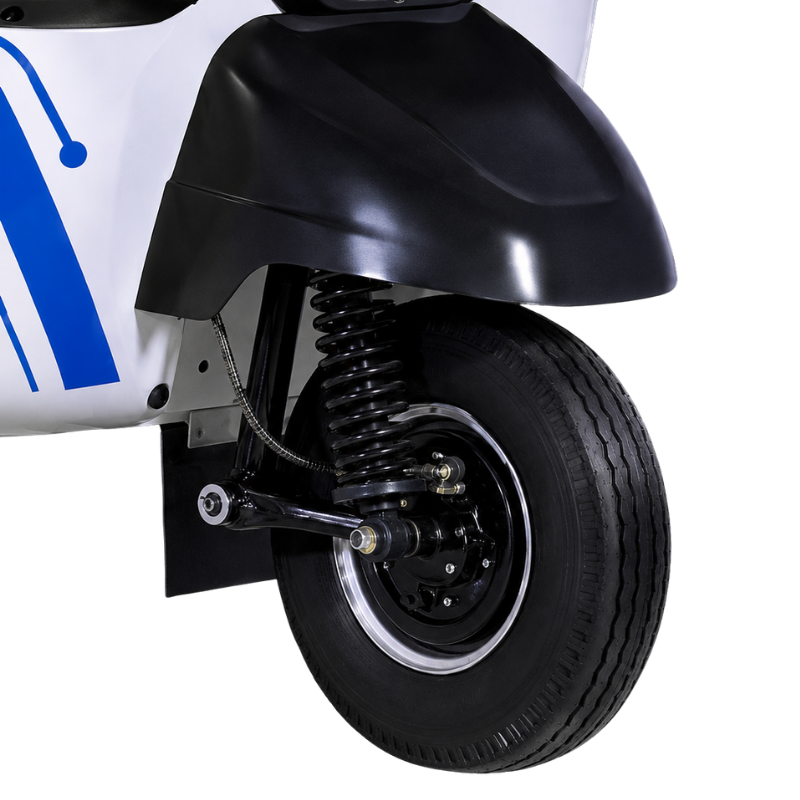

| Front Suspension | – | Anti dive leading link with dual action Telescopic hydraulic shock absorber, Helical compression coil spring. |
| Rear Suspension | – | Trailing arm, Helical compression with coil spring with Telescopic shock absorber. |

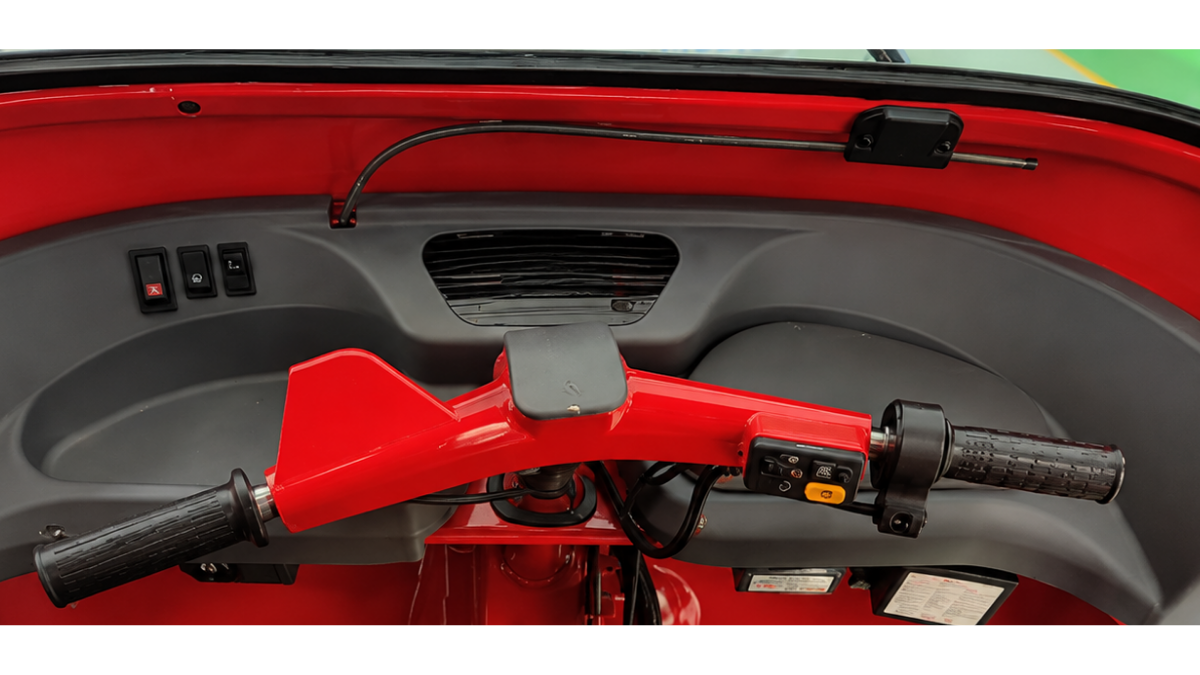

| Steering Type | – | Handle bar |
Brakes & Tyre
| Brake Type | – | Drum Type, Dual Circuit Hydraulic Front & Rear with TMC. |
| Parking brake | – | Hand operated, Ratchet & lever type, acting on rear wheel |
| Tyre size | – | 4.5 x 10 inch |

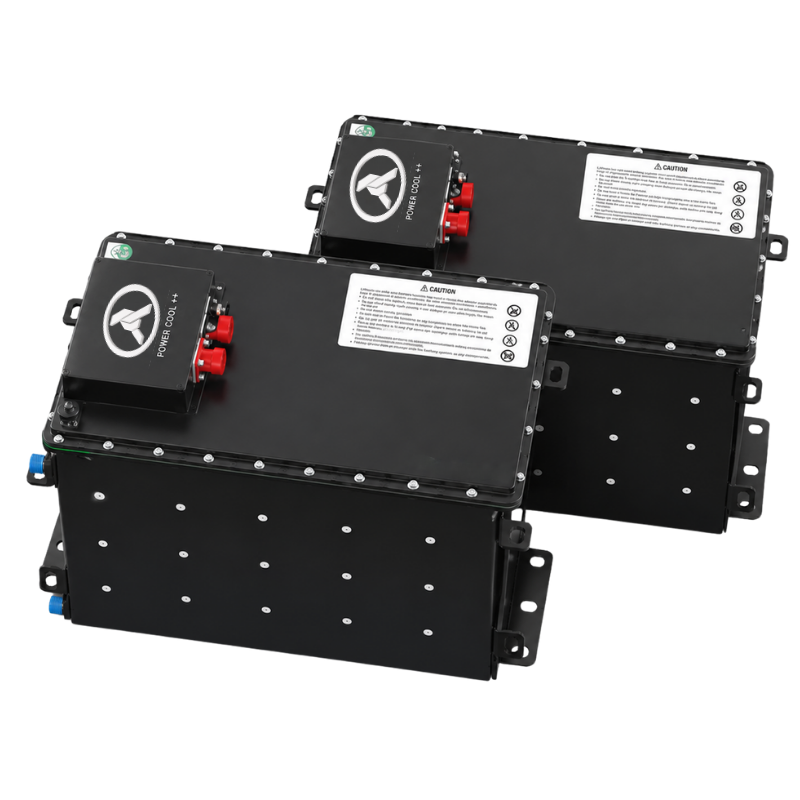

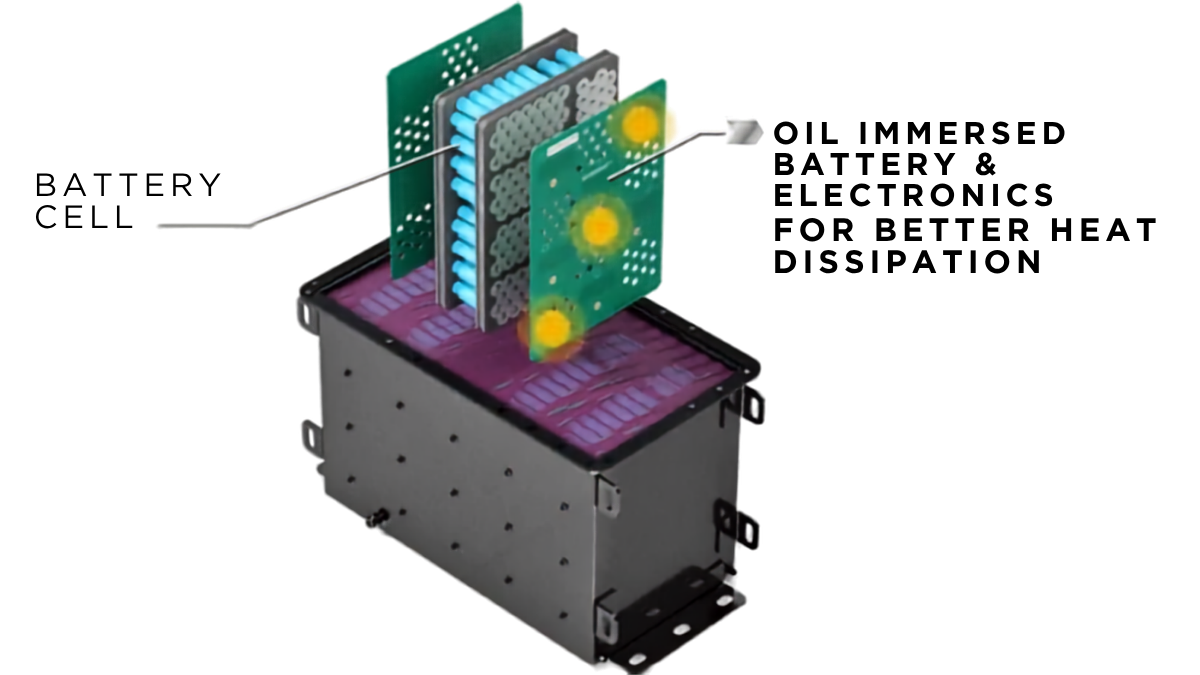

Battery Power Pack
| Battery Type | – | Lithium-ion |
| Battery Capacity | – | 13.2 kWh |
| Portable Charger | – | 3 kW |
| Battery Thermal Management System | – | Active Intelligent Cooling |
Dimensions
| Wheel base (mm) | – | 2125 mm |
| Overall width (mm) | – | 1510 mm |
| Overall length (mm) | – | 3350 mm |
| Overall height (mm) | – | 1700 mm |

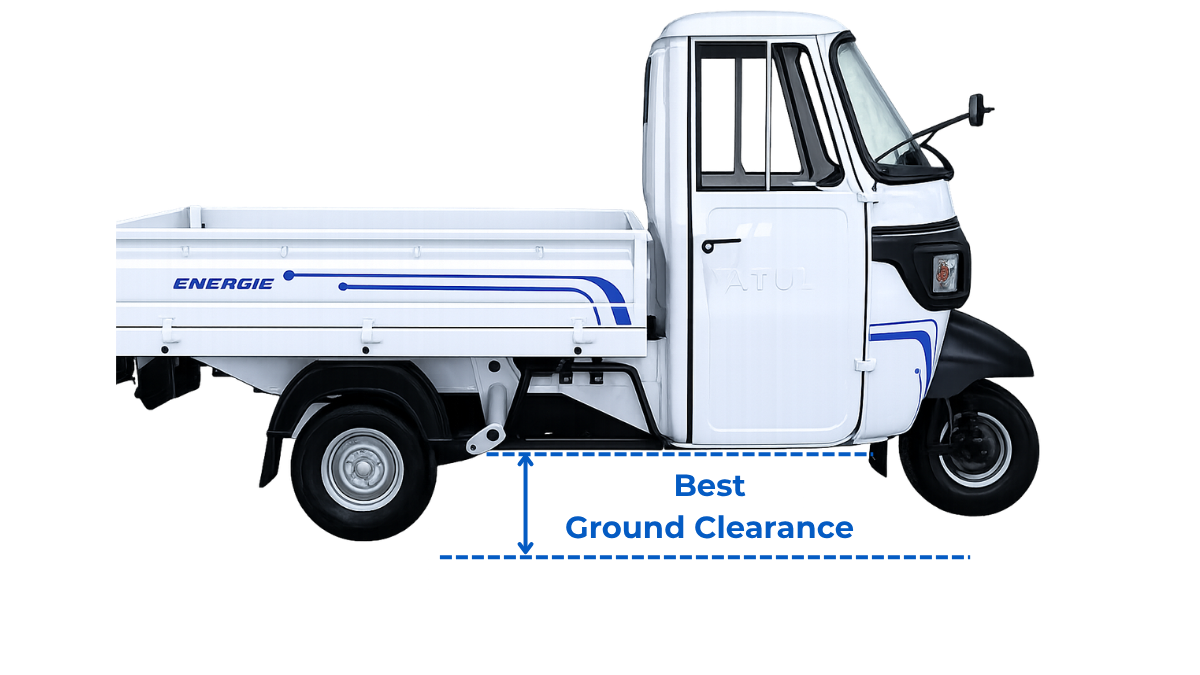

| Min. ground clearance (mm) | – | 215 mm |
| Turning radius (mm) | – | 3500 mm |
| Gradeability | – | 10.2 Degree |

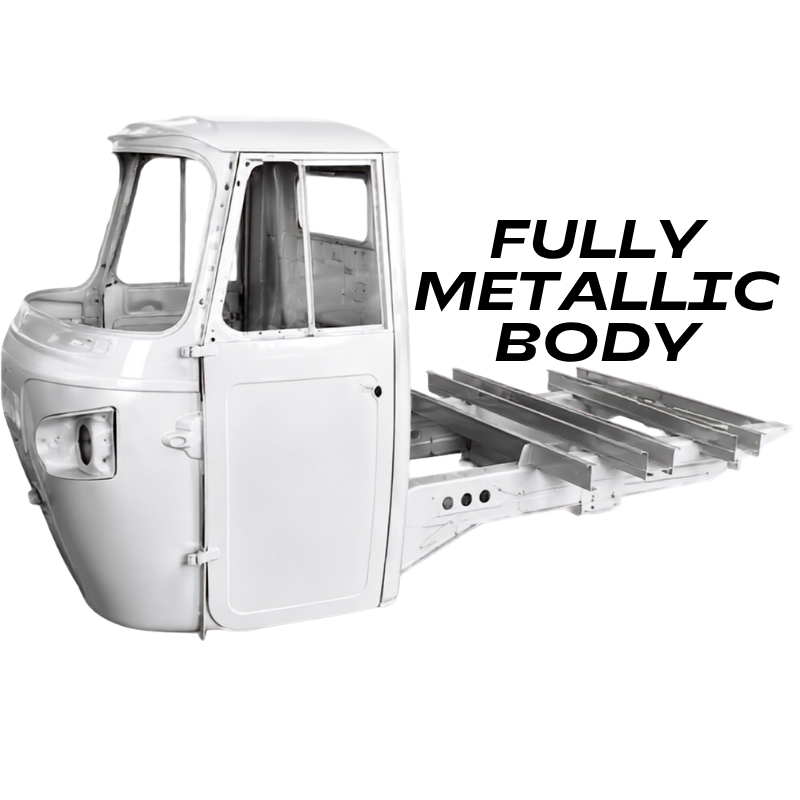

| Chassis Frame | – | Monocoque Type |
Body & Weights
| Maximum GVW kg (for rigid vehicles) | – | 995 kg |
| Kerb weight | – | 545 kg |
