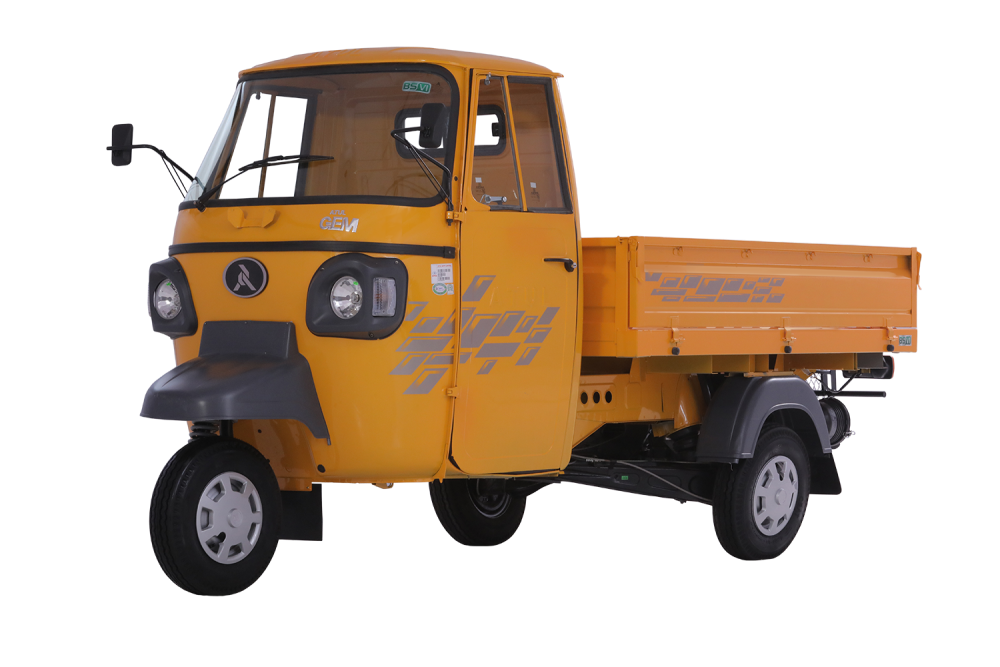

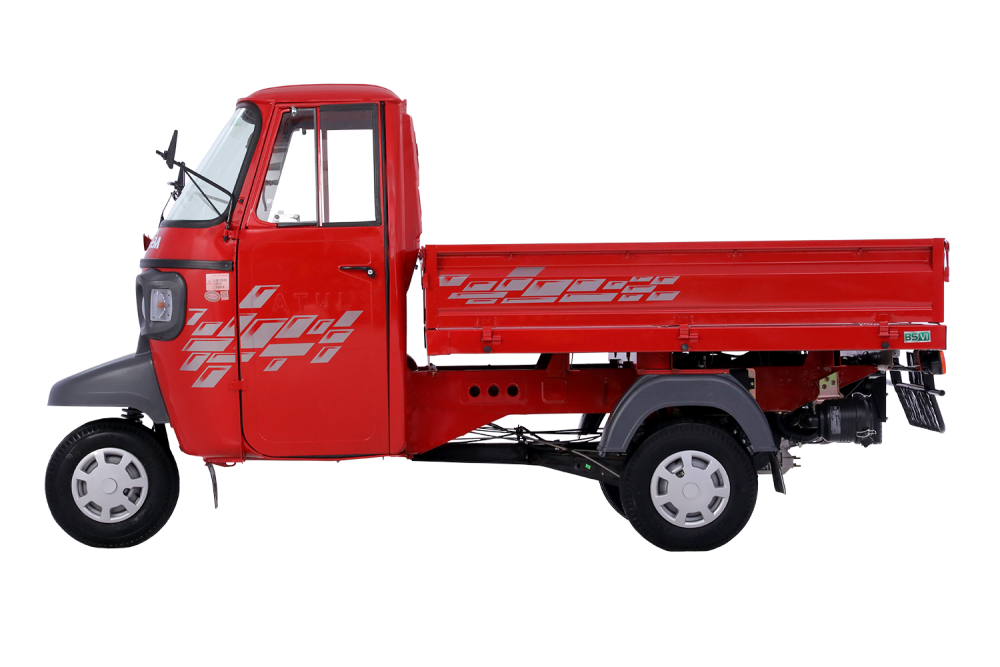

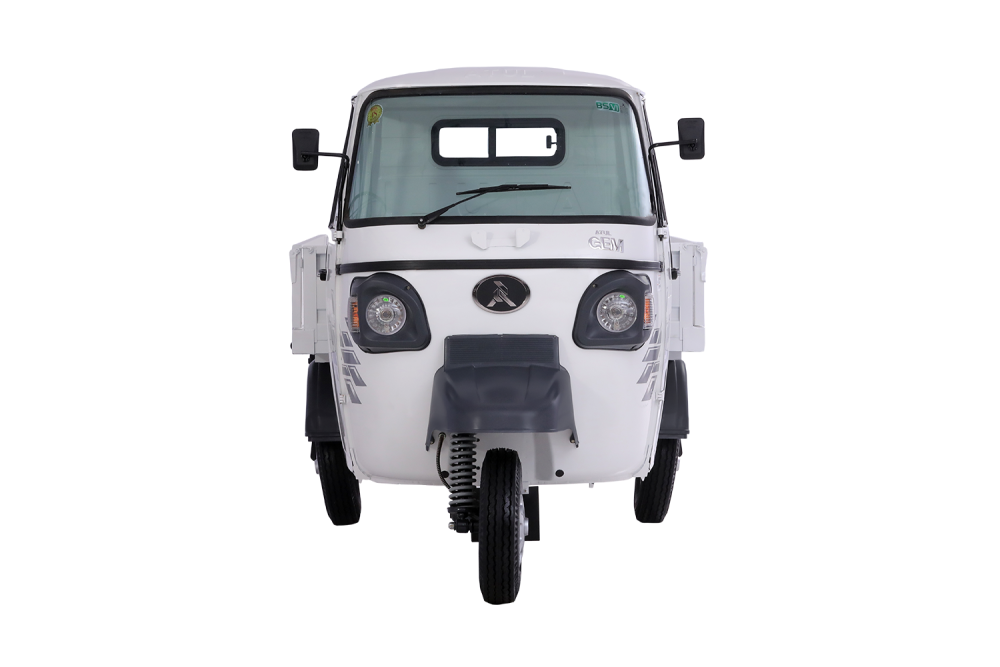

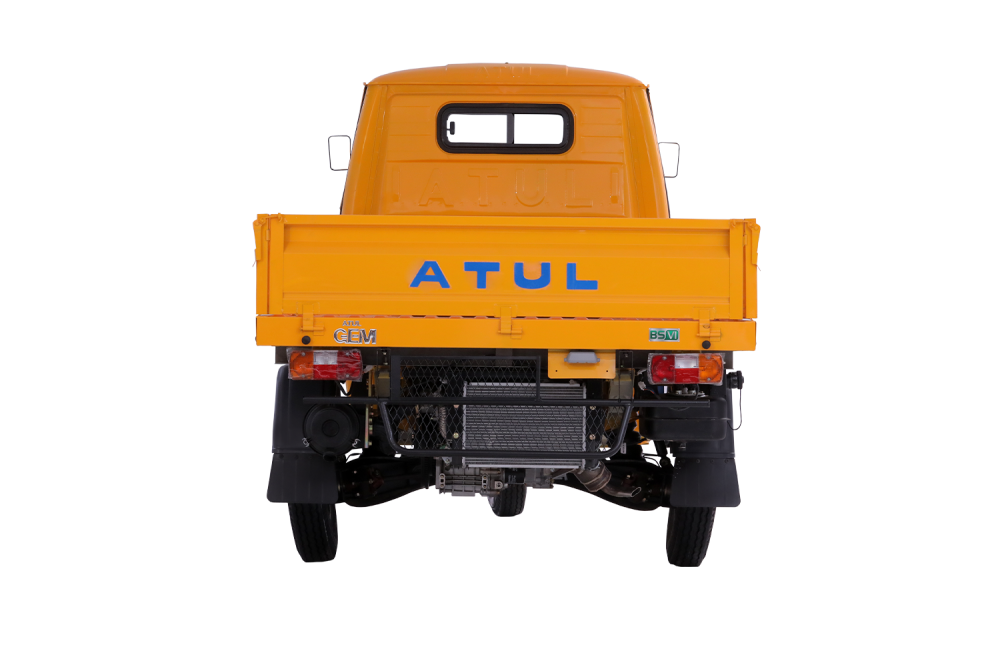

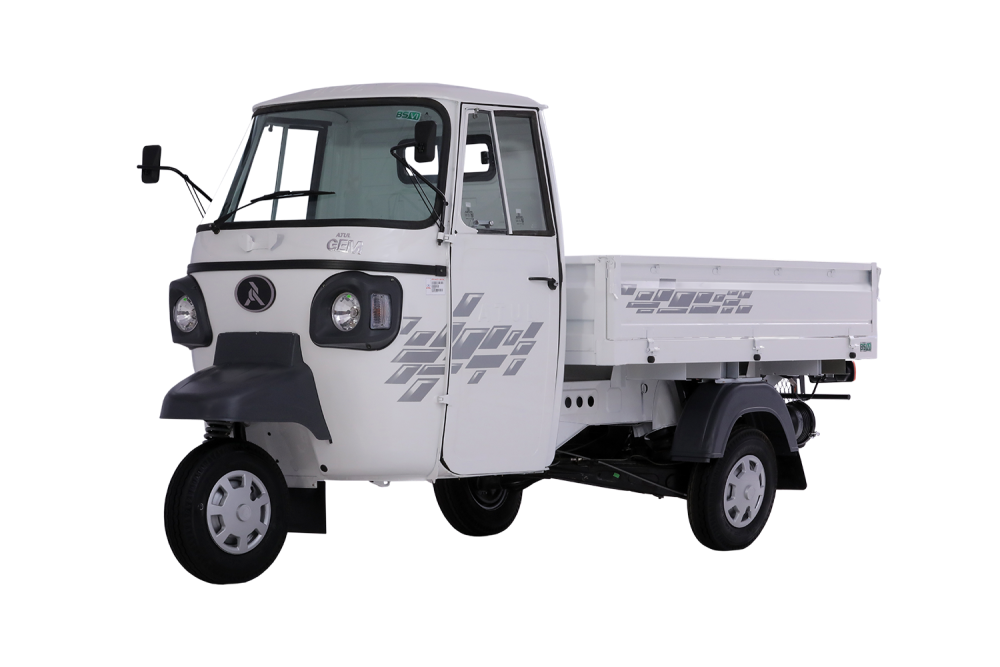

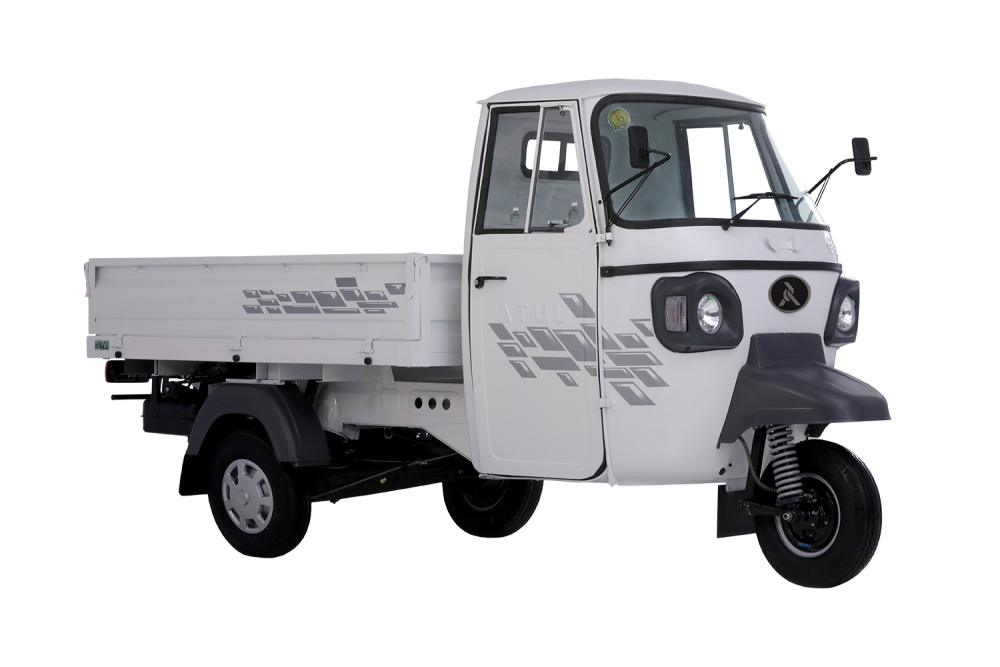

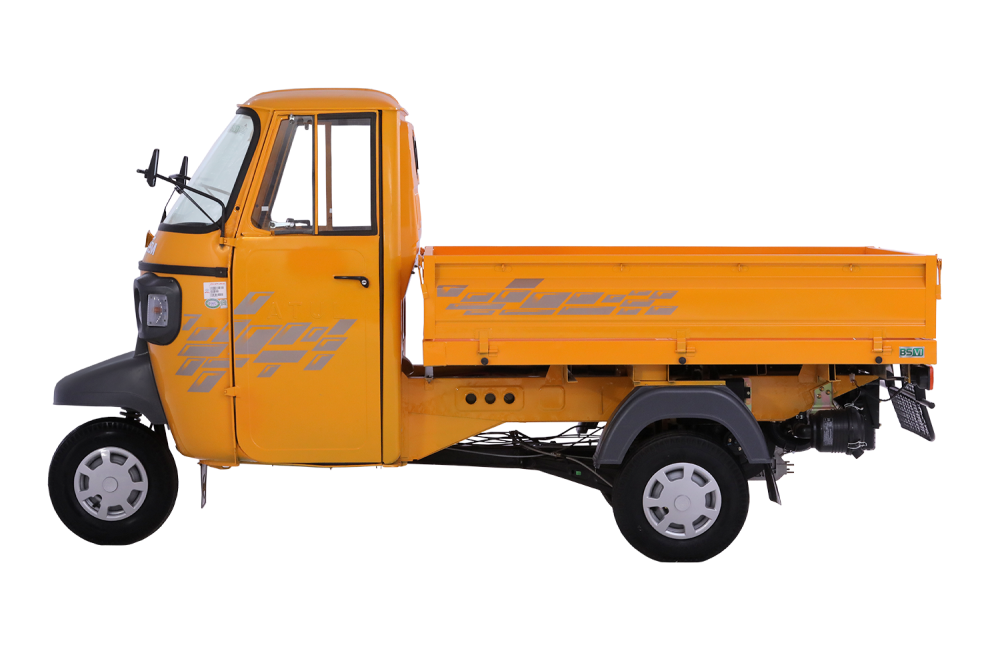

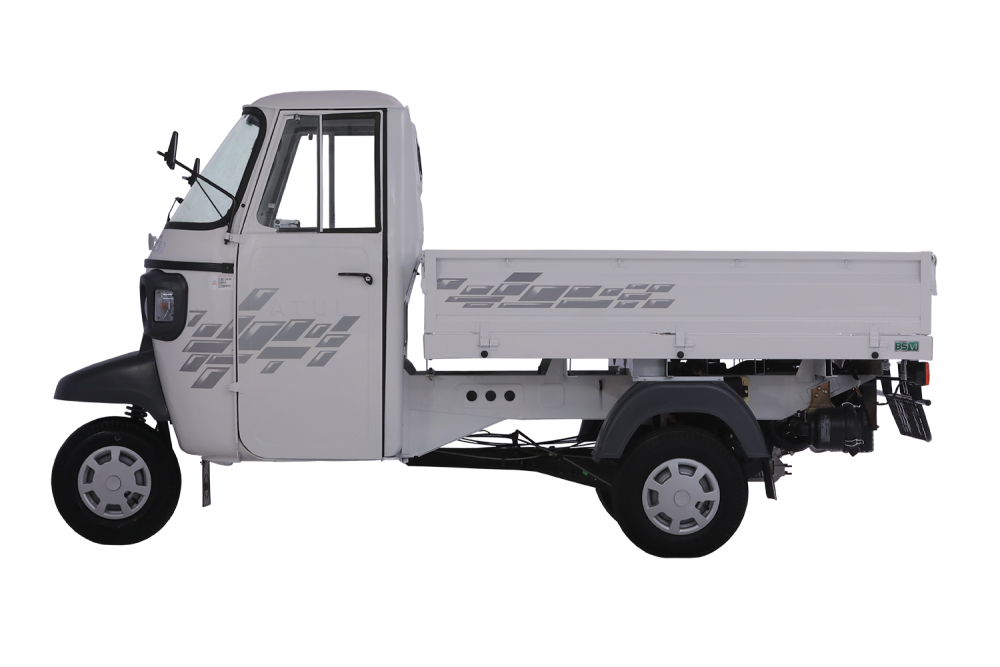

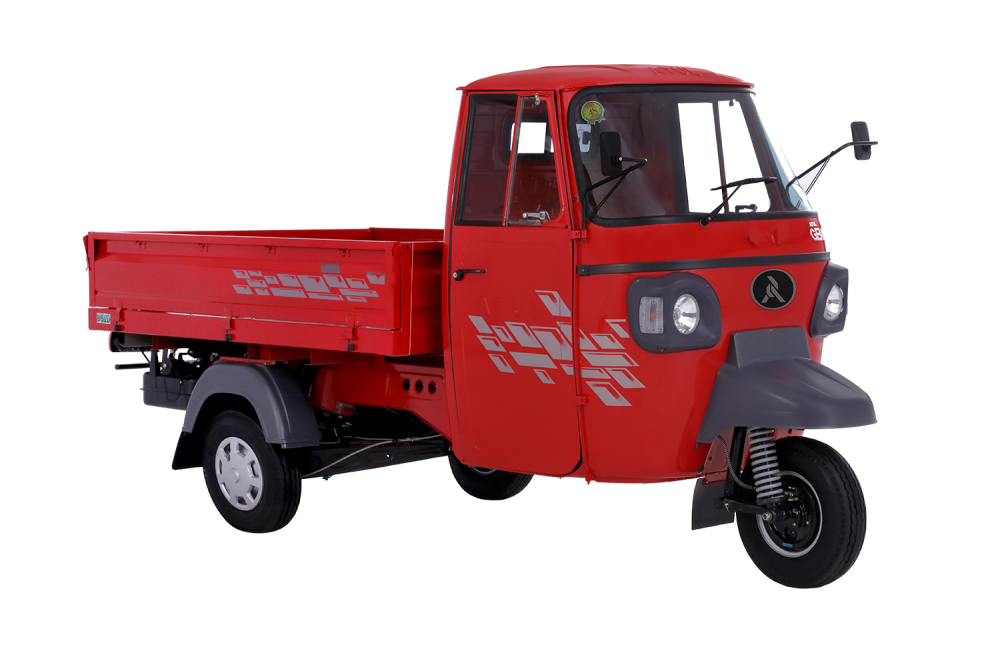

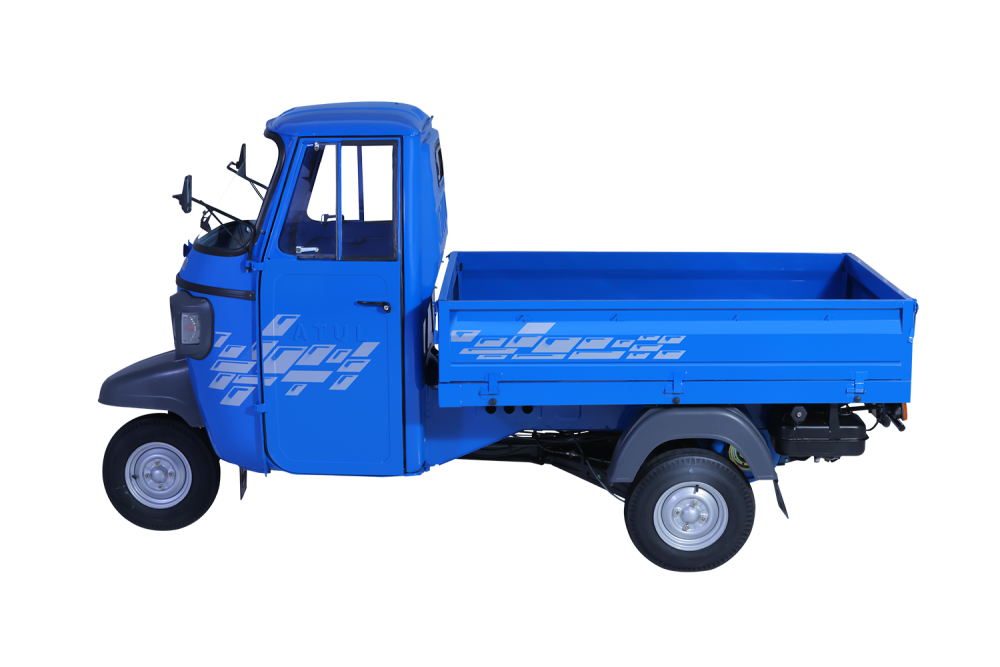

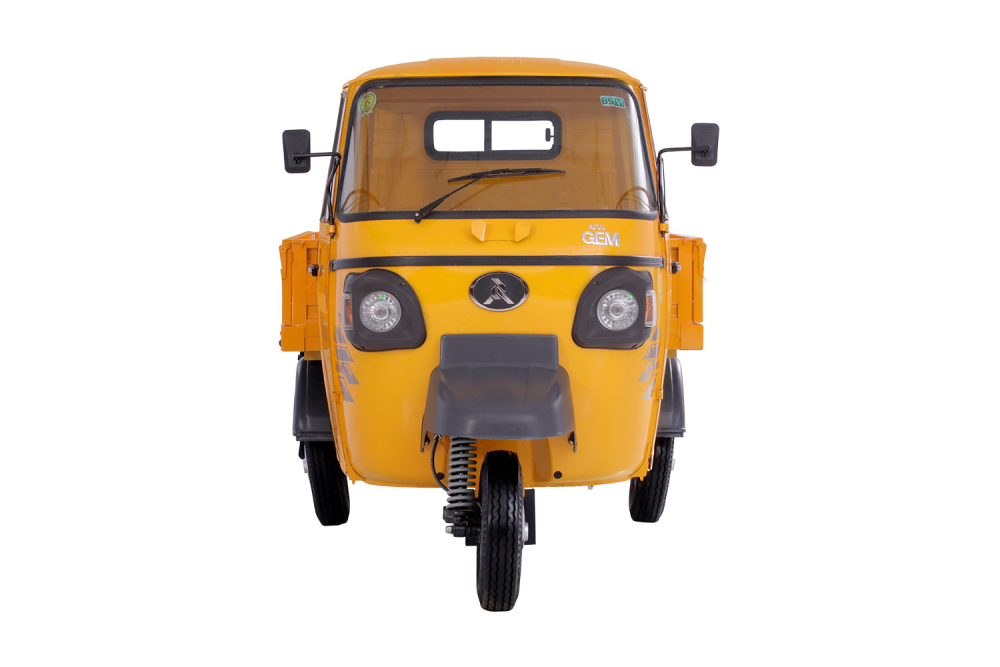

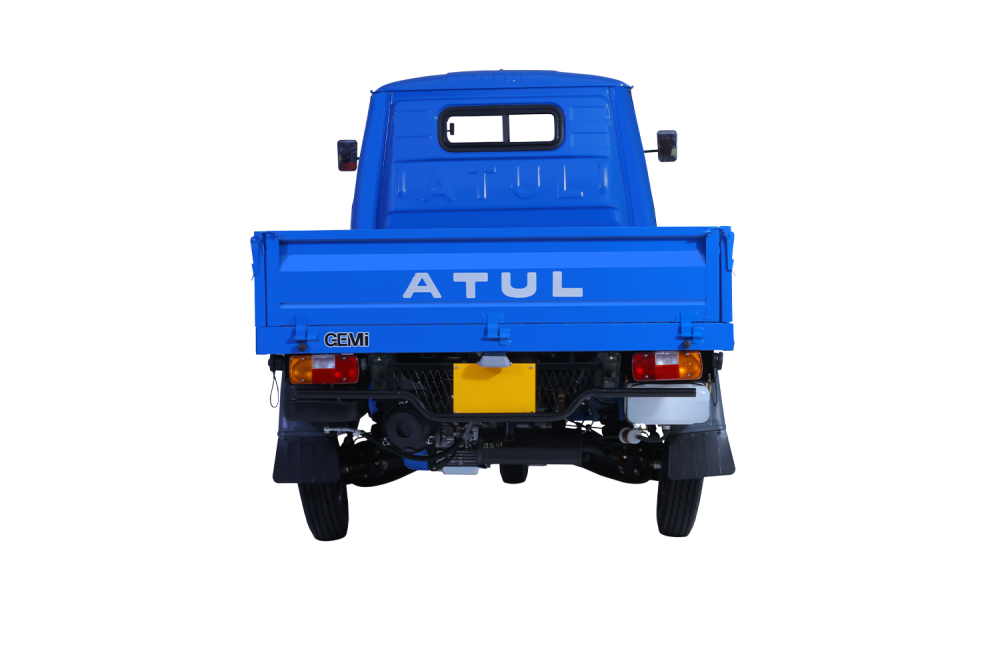

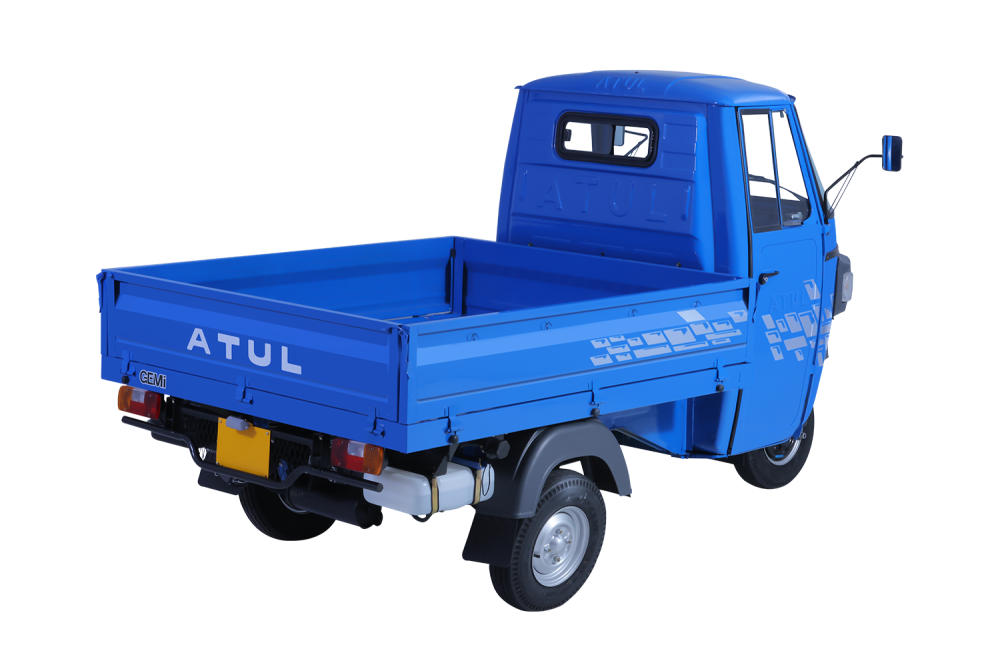

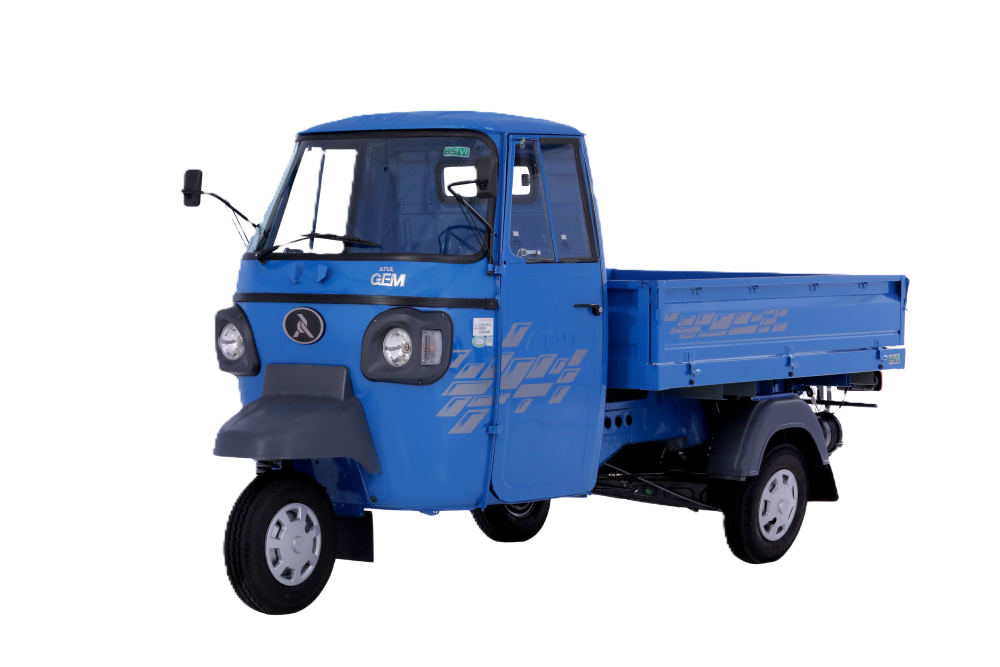

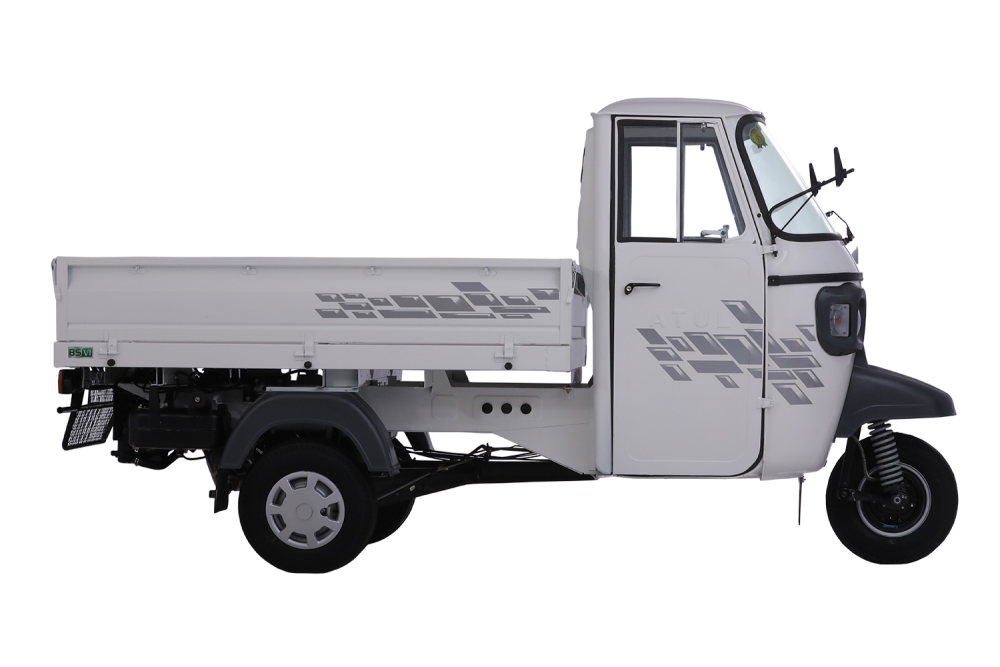

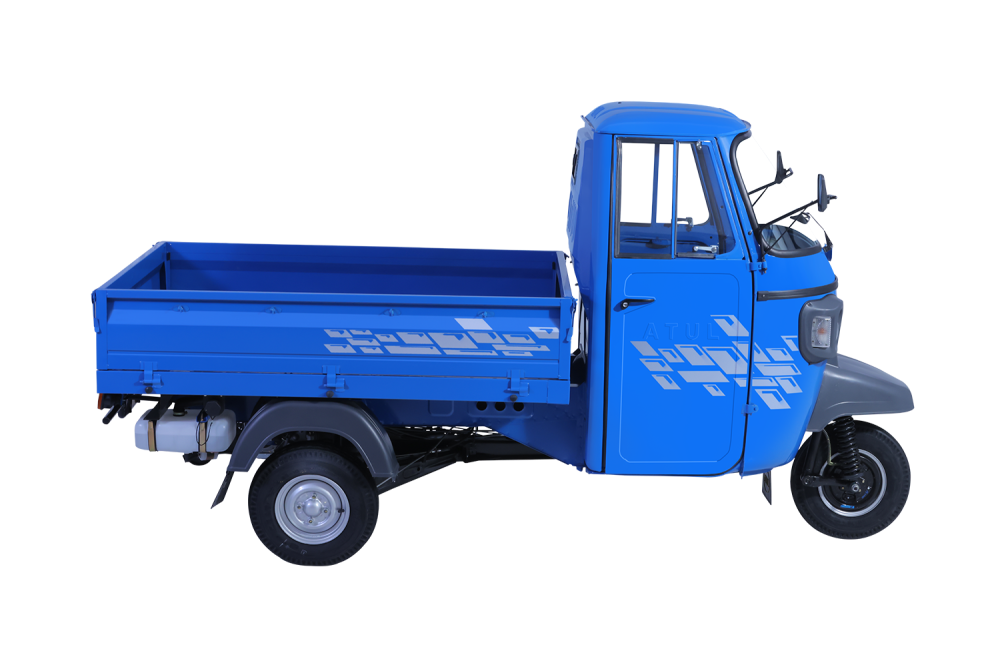

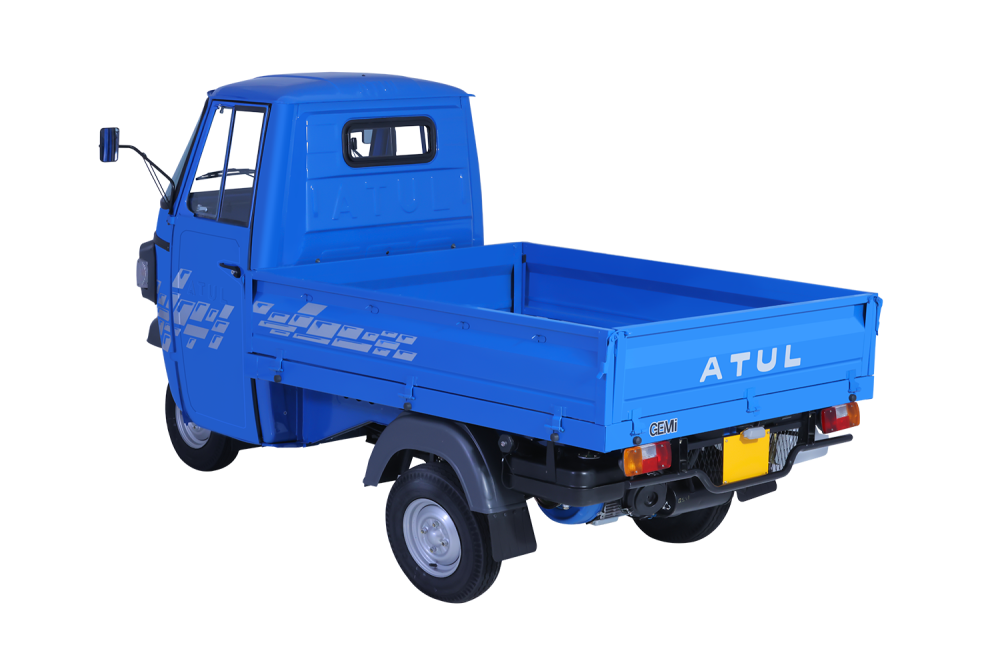

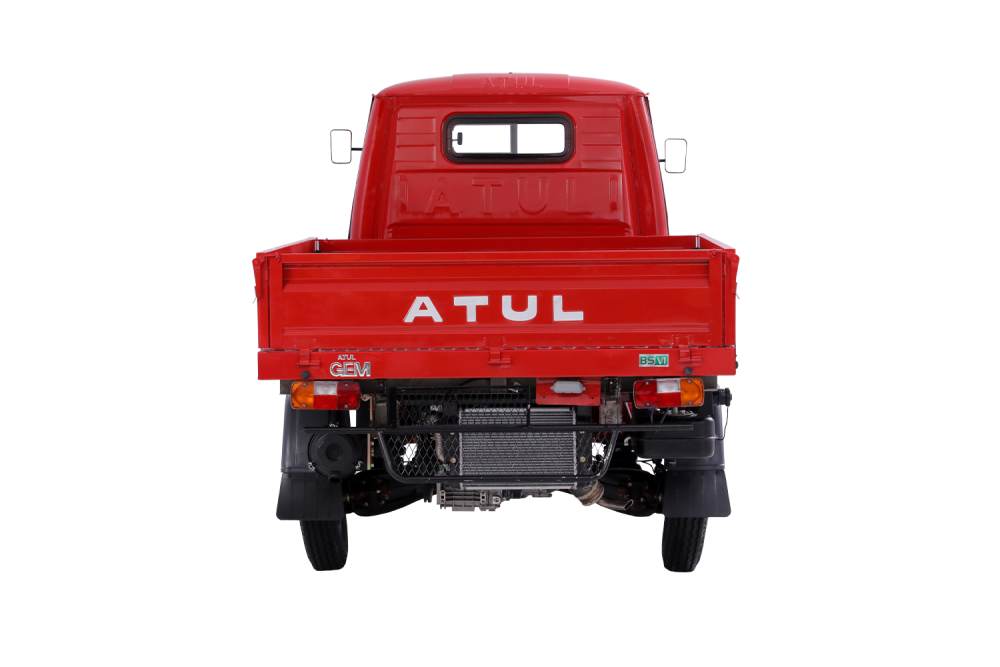

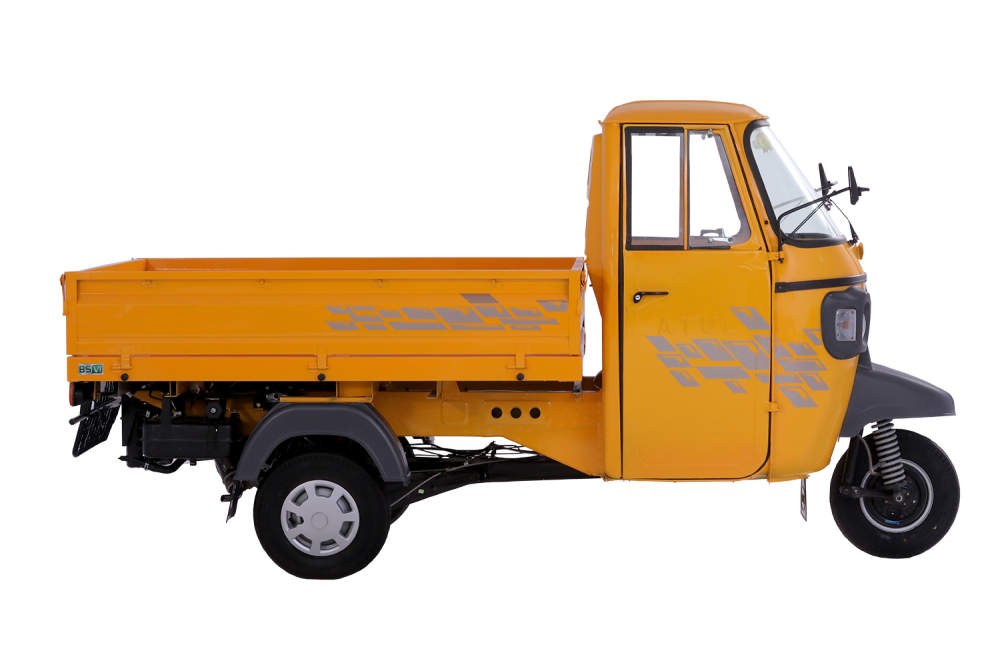

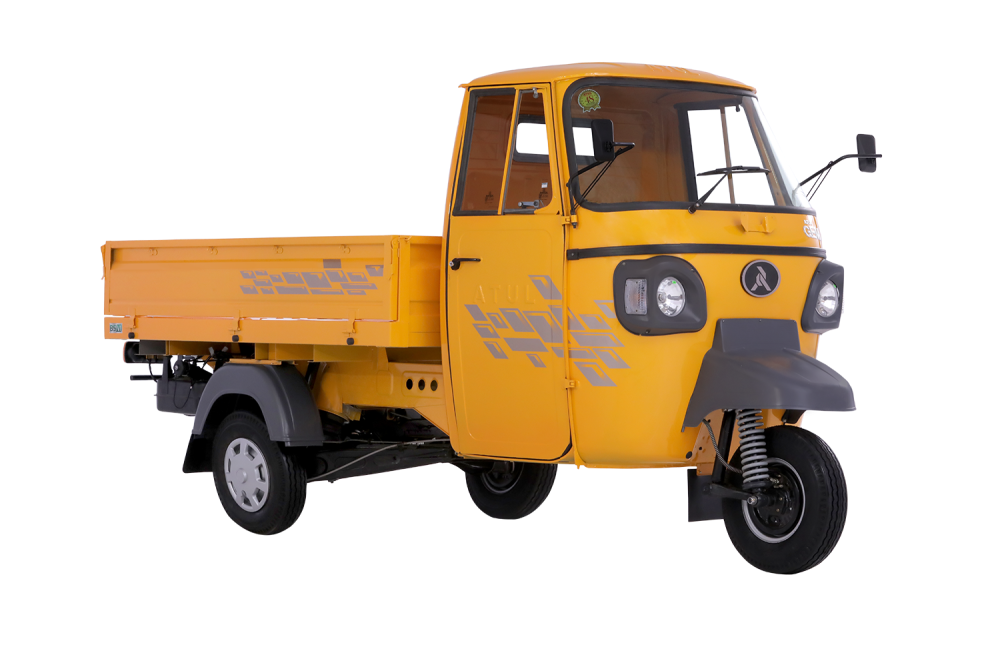

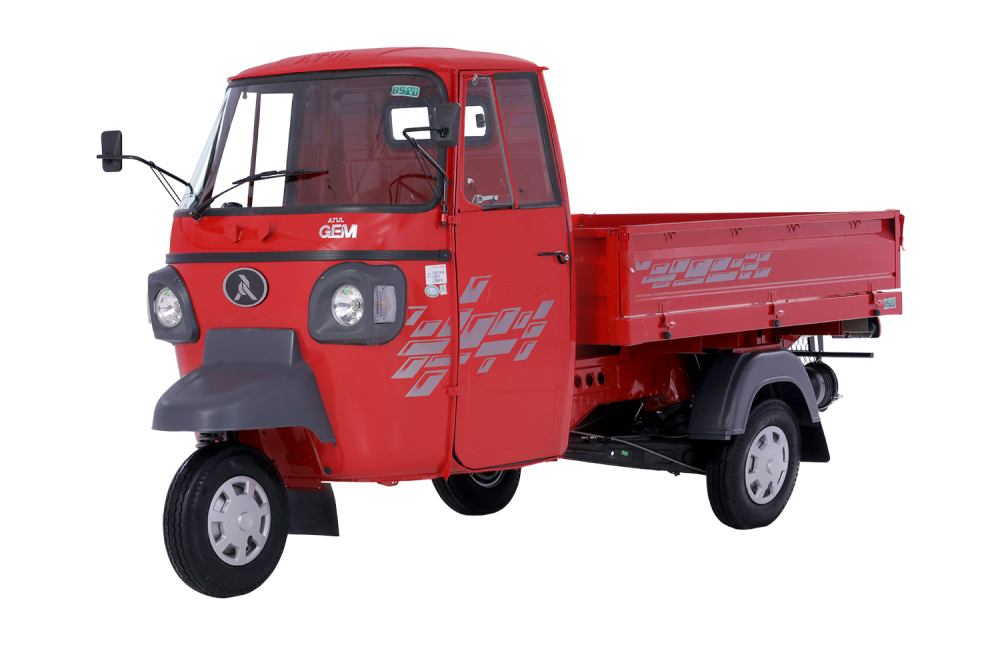

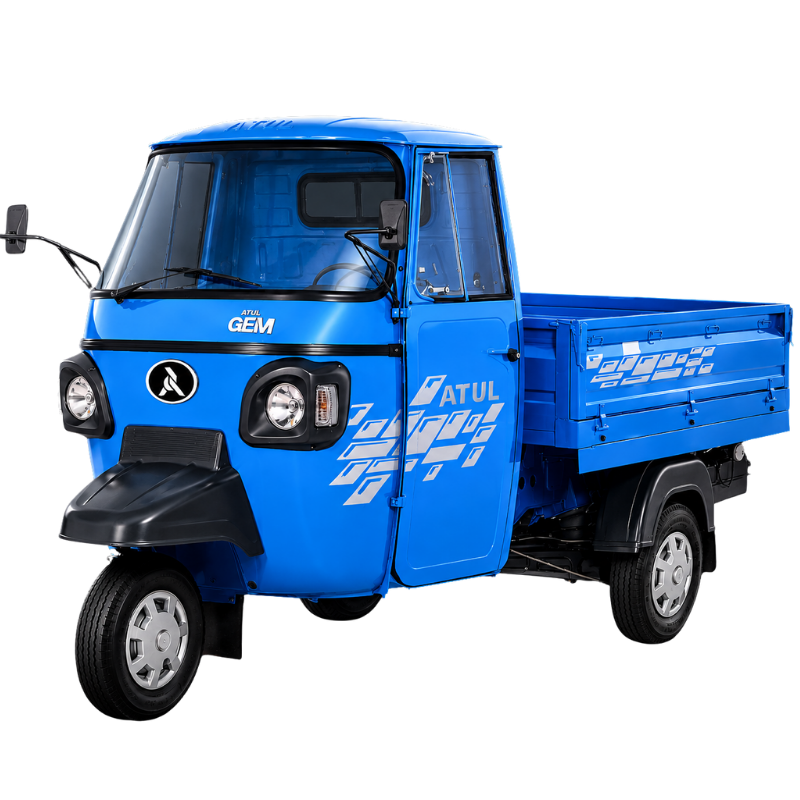

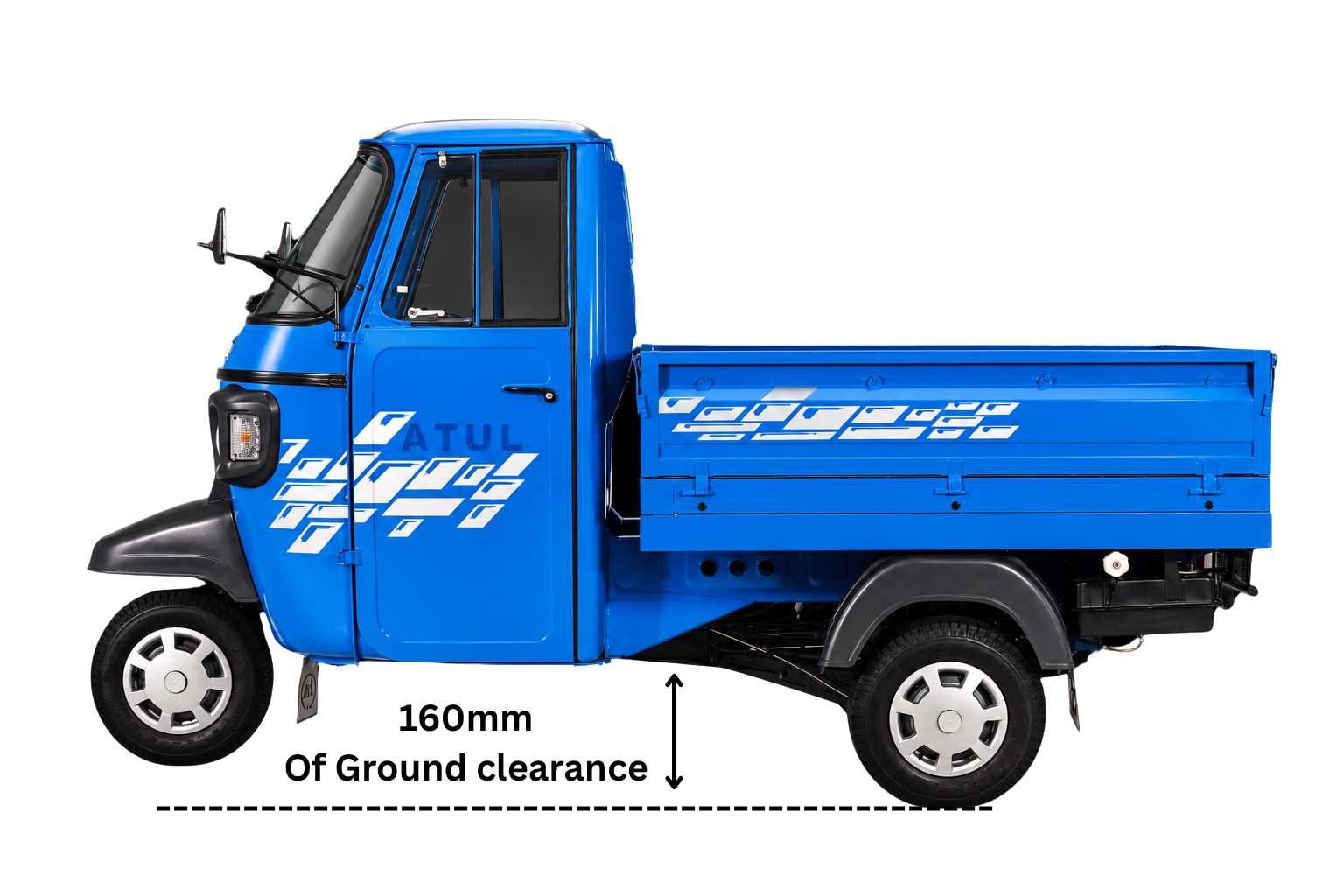

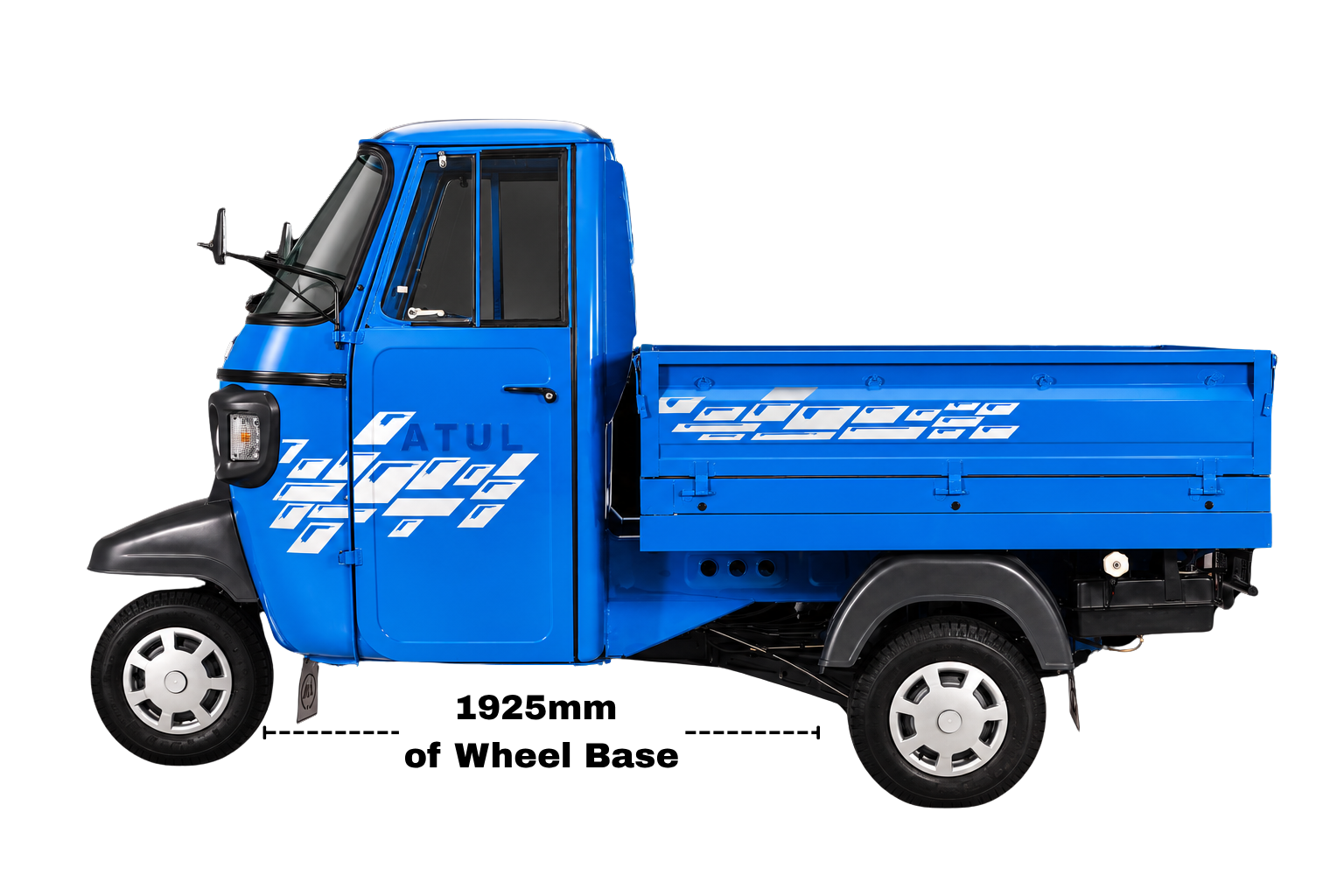

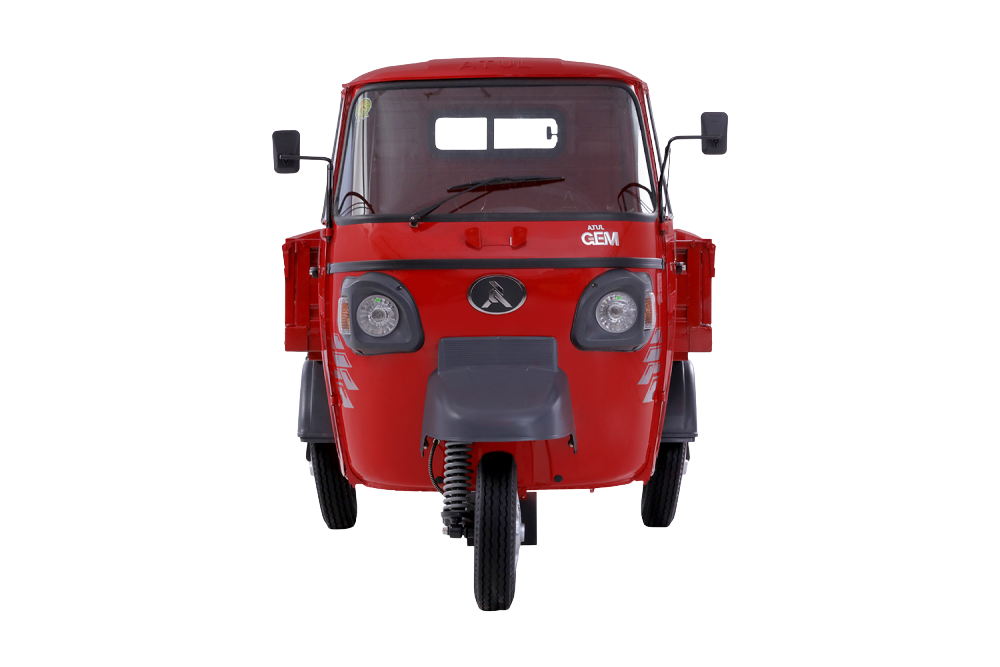

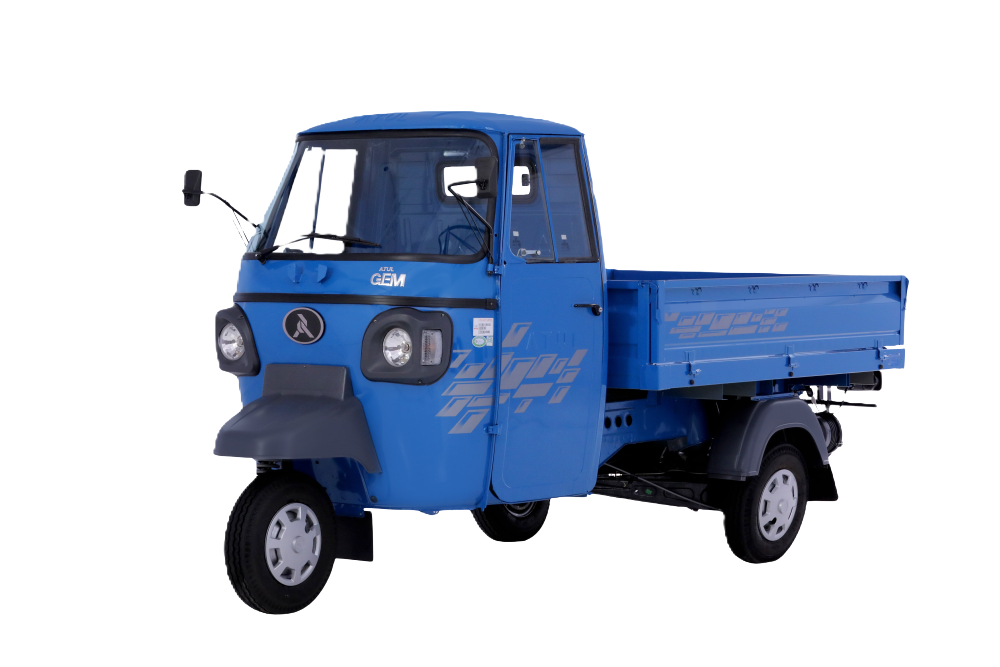

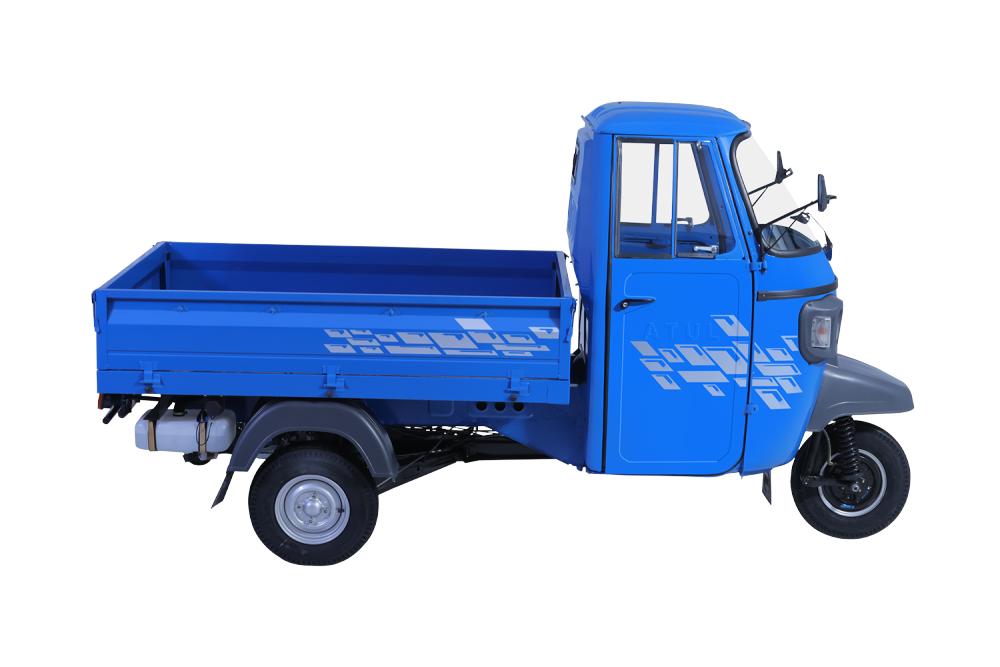

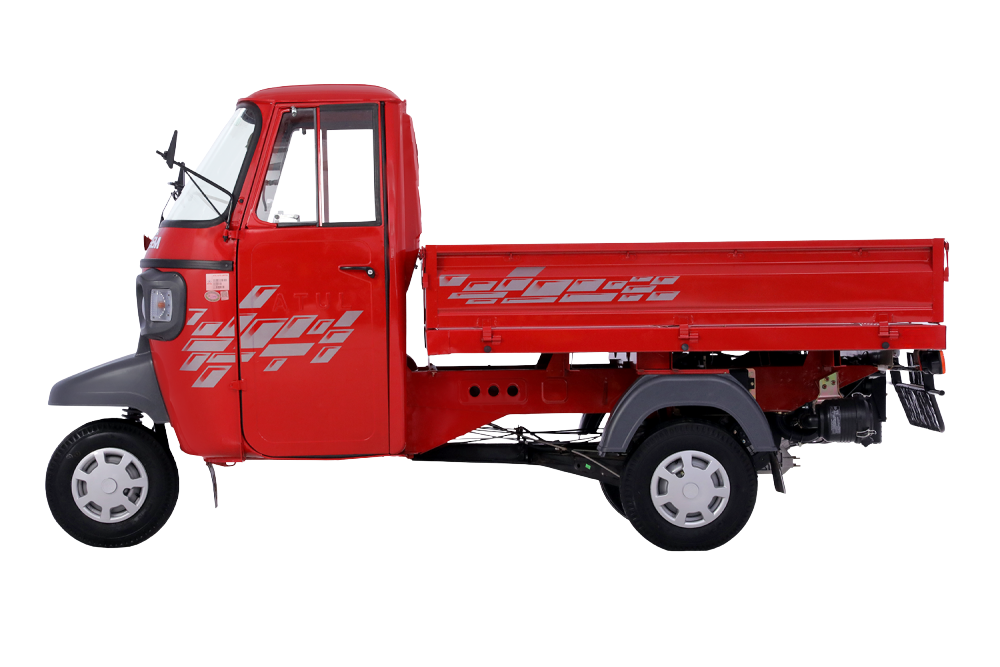

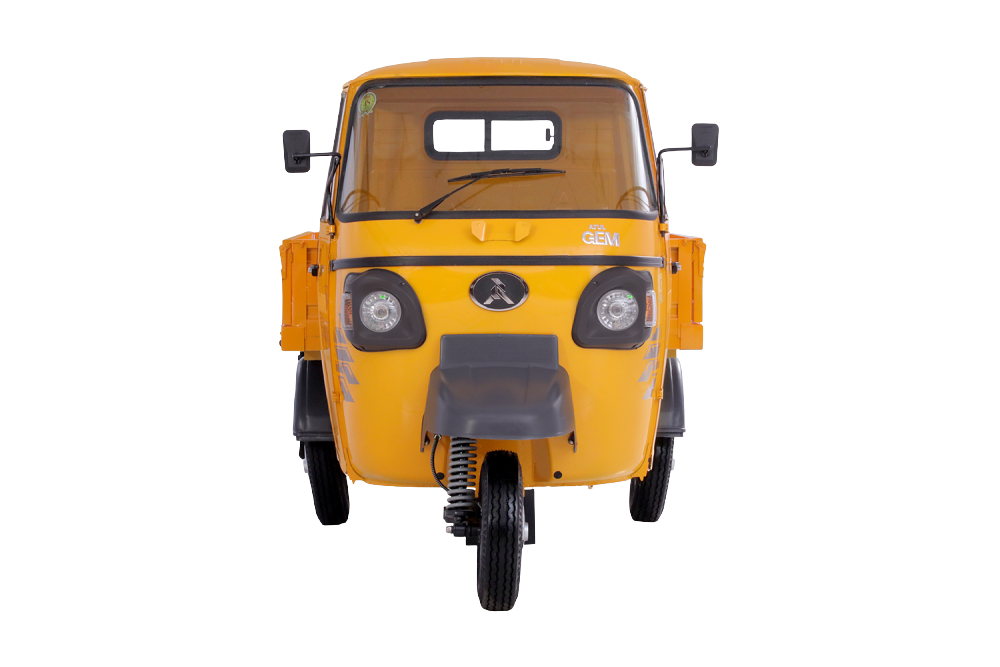

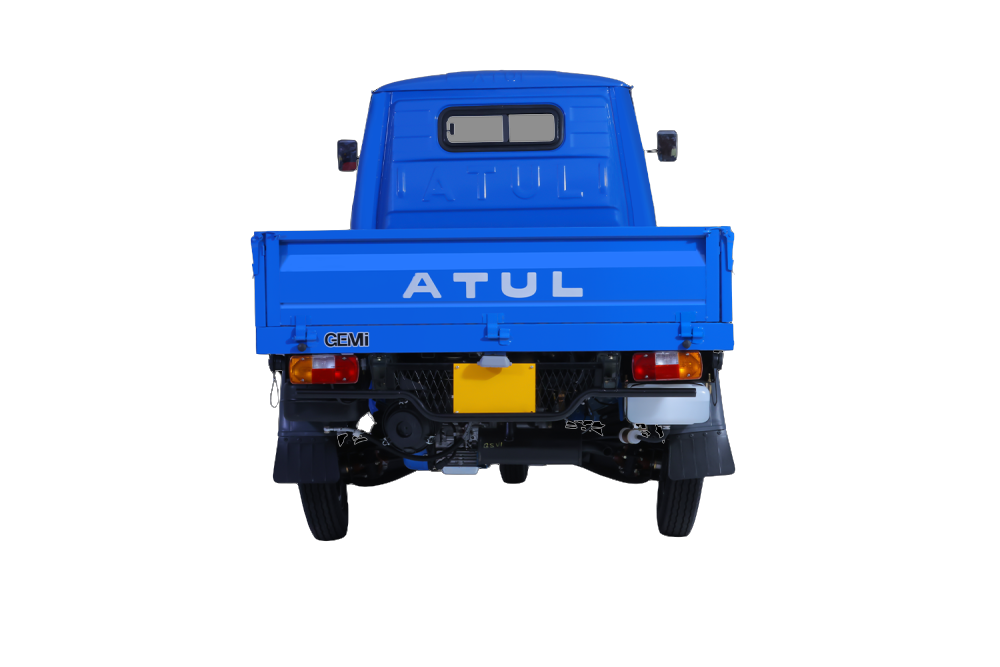

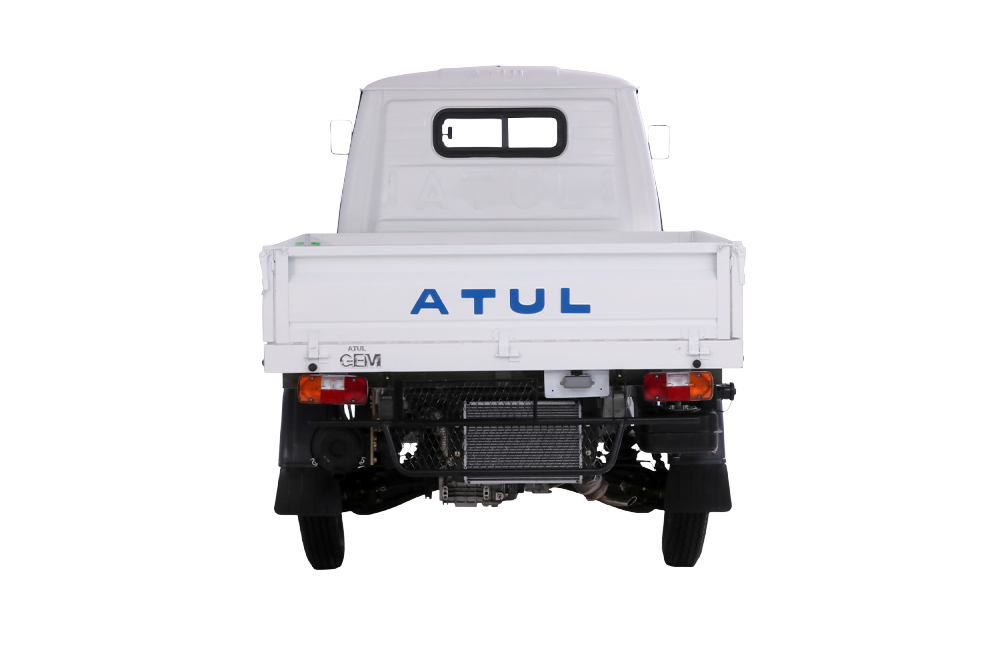

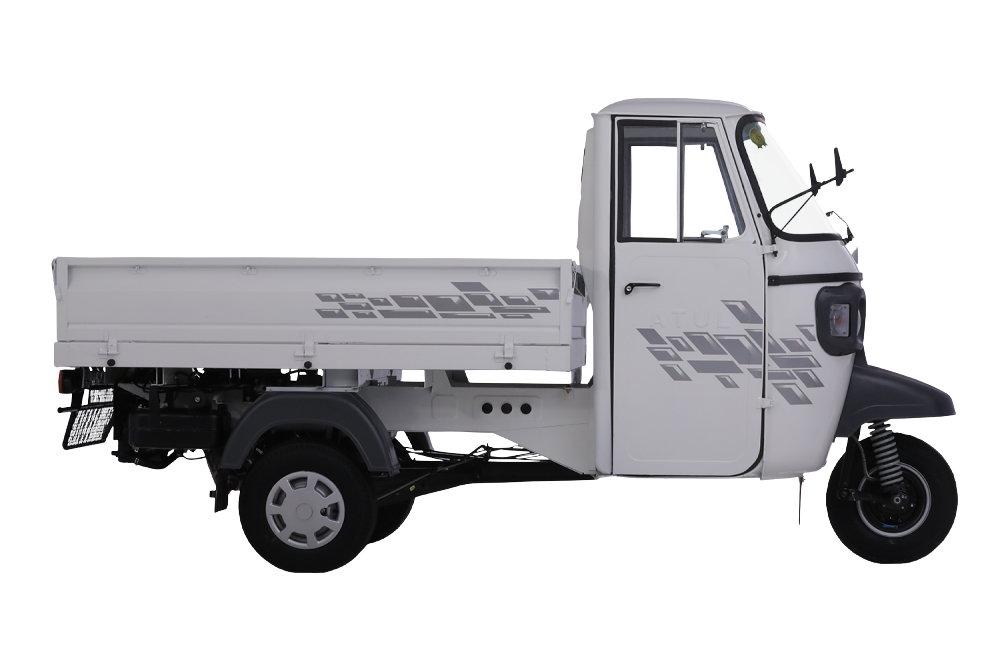

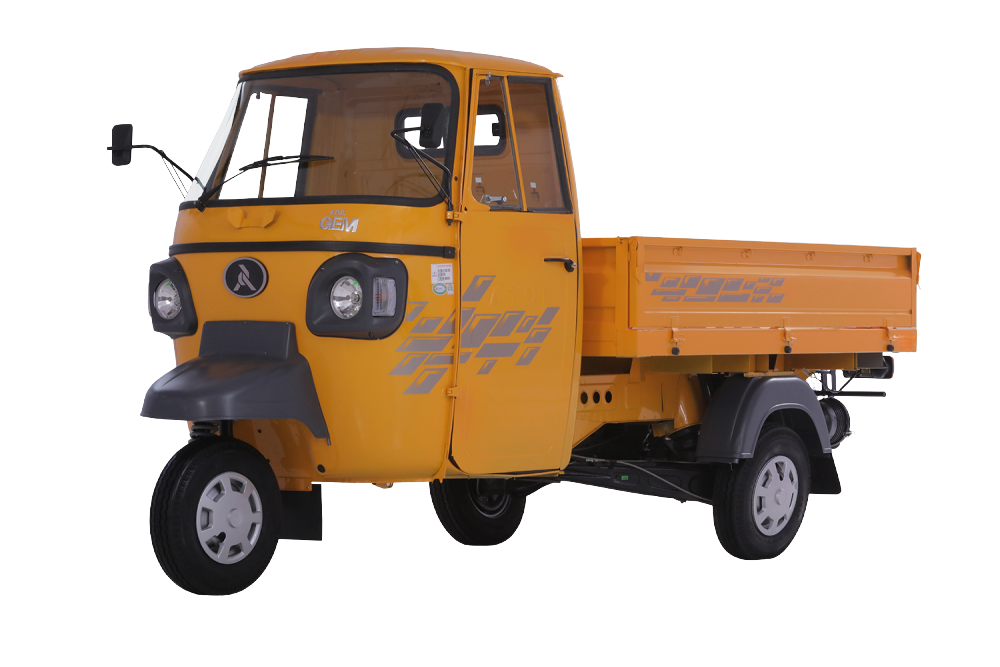

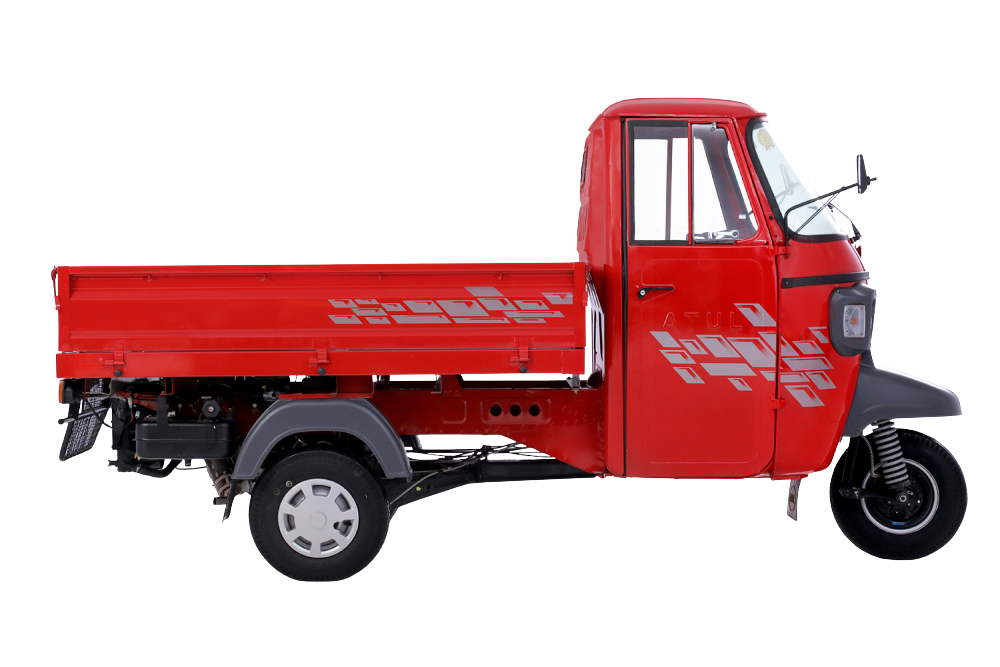

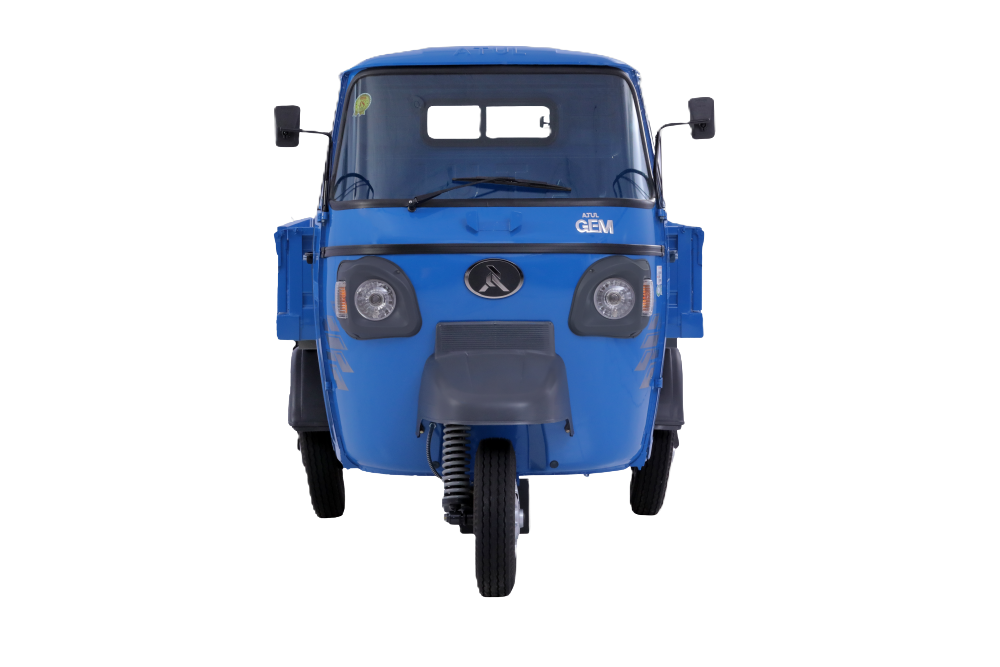

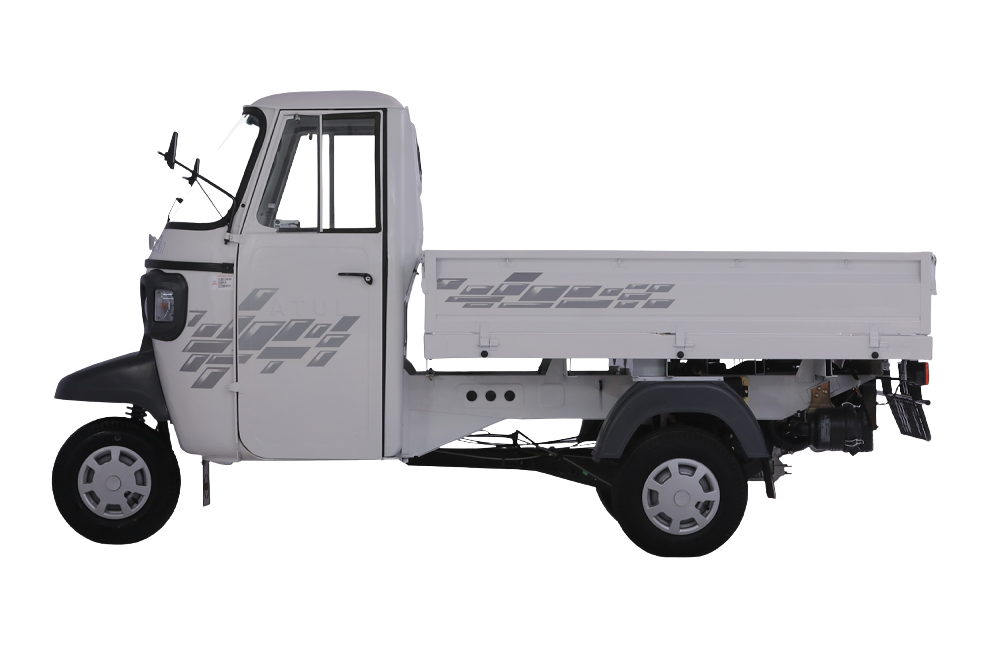

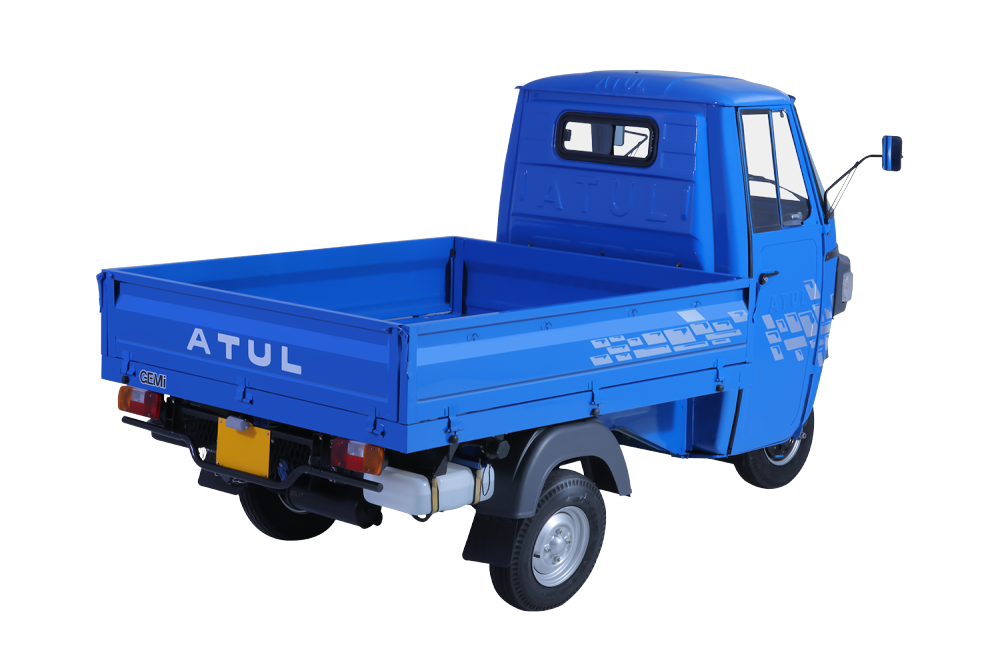

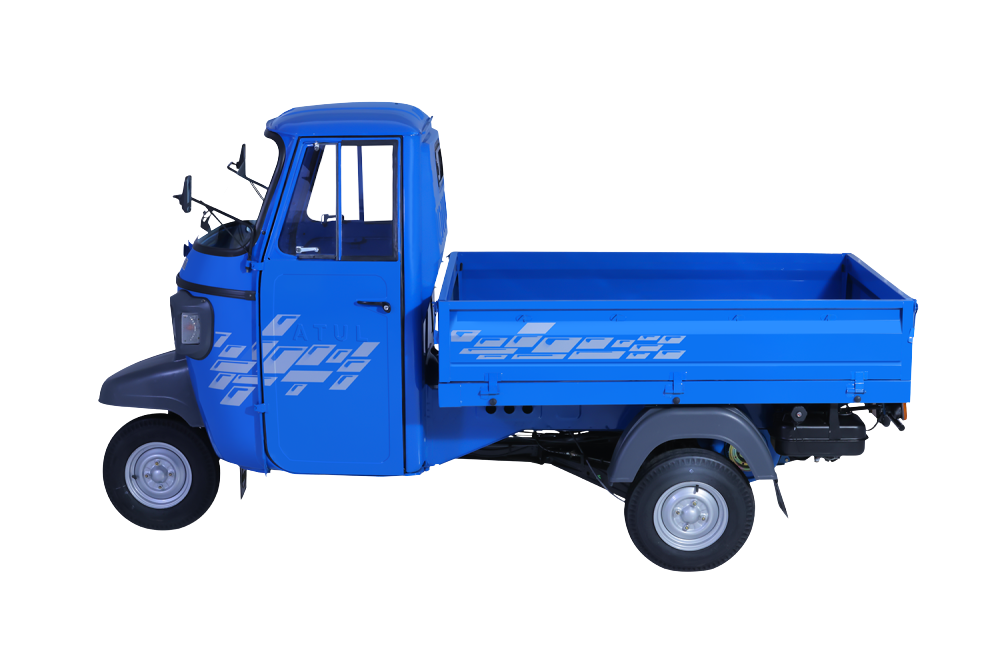

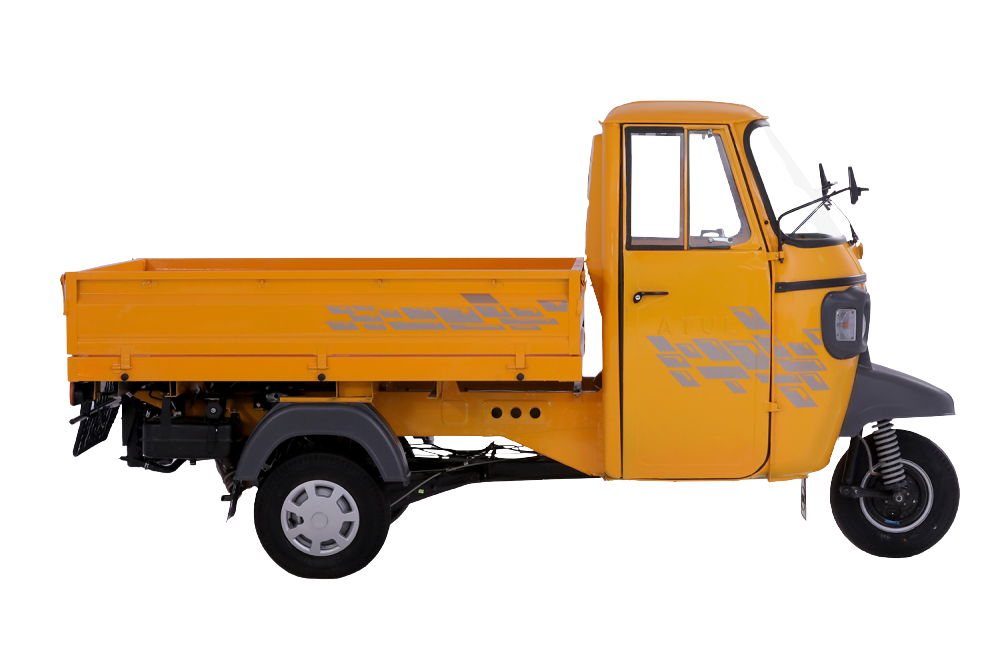

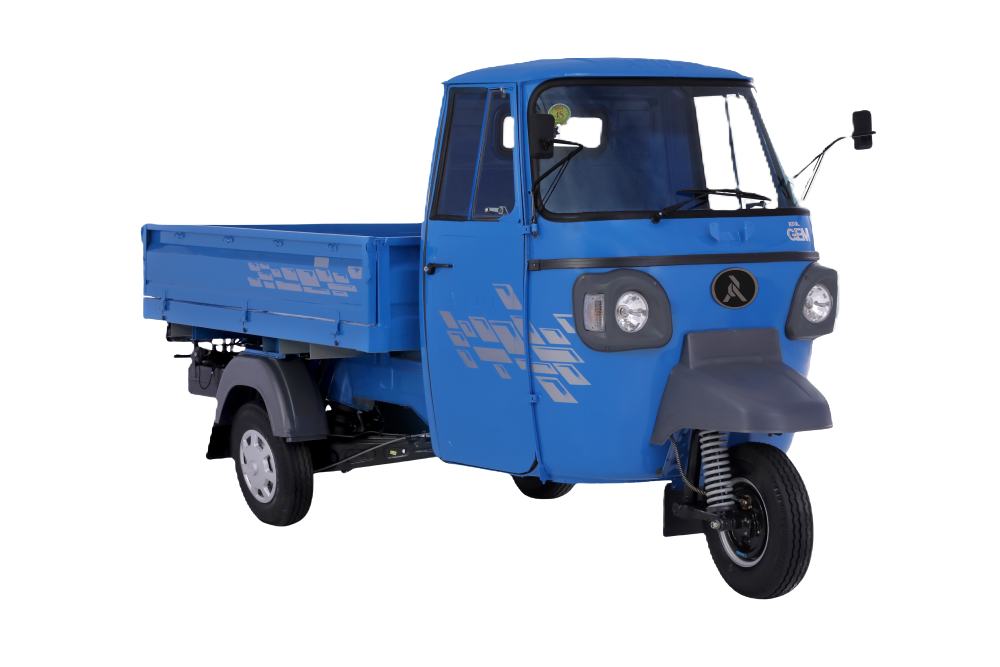

ATUL GEM - Cargo Petrol
Fuel Type
Petrol
Fuel Tank Capacity
7.5 Litre
Engine
FOUR STROKE SINGLE CYLINDER OHC
Displacement
200 cc
Gross Weight
995 kg
Kerb Weight
426 kg
Know More
Download Brochure
ATUL GEM - Cargo Petrol specification
Performance
Steering & Suspension
Brakes & Tyre
Electrical system
Dimensions
Body & Weights
Performance

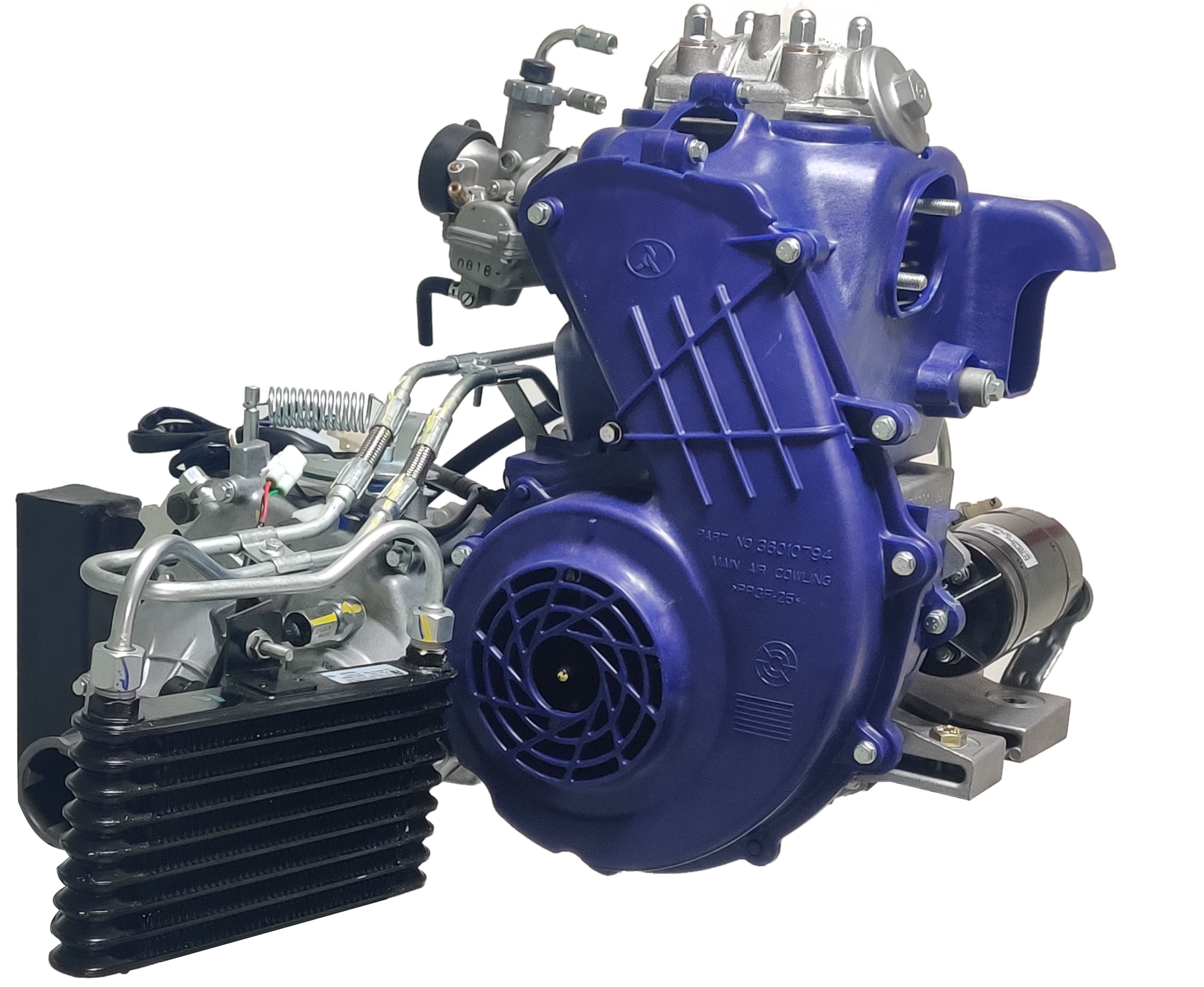

| Engine Type | – | Single Cylinder Four Stroke Spark Ignition - Air Cooled. |
| Displacement | – | 198.6 cc |
| Max. Engine output (kW @ rpm) | – | 8.6 kW @ 6000 rpm |
| Max. Torque (Nm @ rpm) | – | 15.8 Nm @ 3000 rpm |
| Clutch Type | – | Multi Plate wet type |
| Gear Box | – | Constant mesh |
| No. of gears | – | 4 – Forward & 1- Reverse |
Steering & Suspension
| Suspension type | – | Column and strut type suspension system |
| Front Suspension | – | Bigger Swing Arm With Leading Link Suspension |

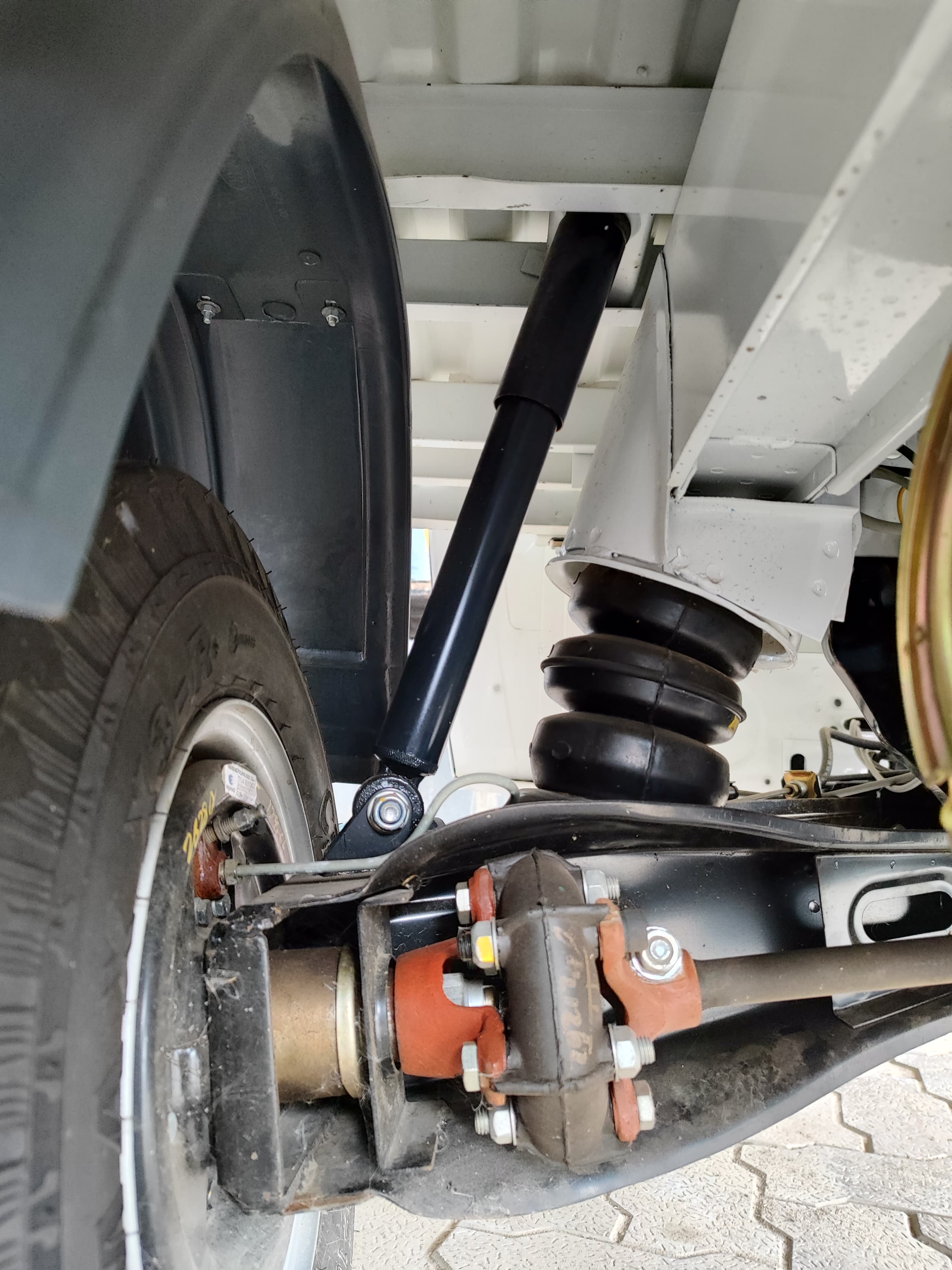

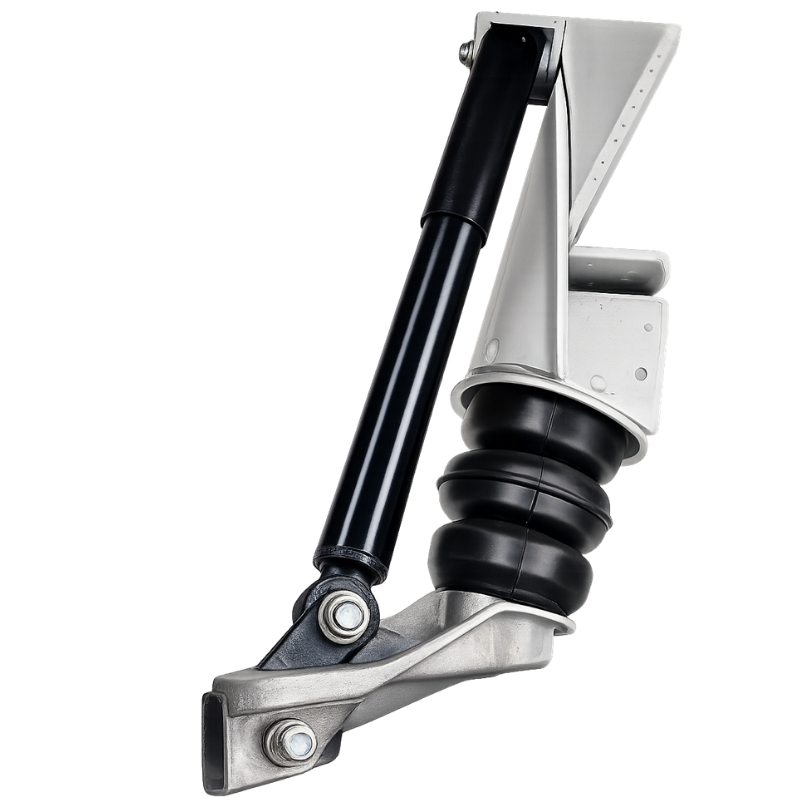

| Rear Suspension | – | Swing Arm triangle With Heavy Duty Rubber Spring & Double Acting Shock Absorbers |
| Steering Type | – | Handle bar |
Brakes & Tyre
| Brake Type | – | Drum Type, Dual Circuit Hydraulic Front & Rear with TMC. |
| Parking brake | – | Hand operated, Ratchet & lever type, acting on rear wheel |

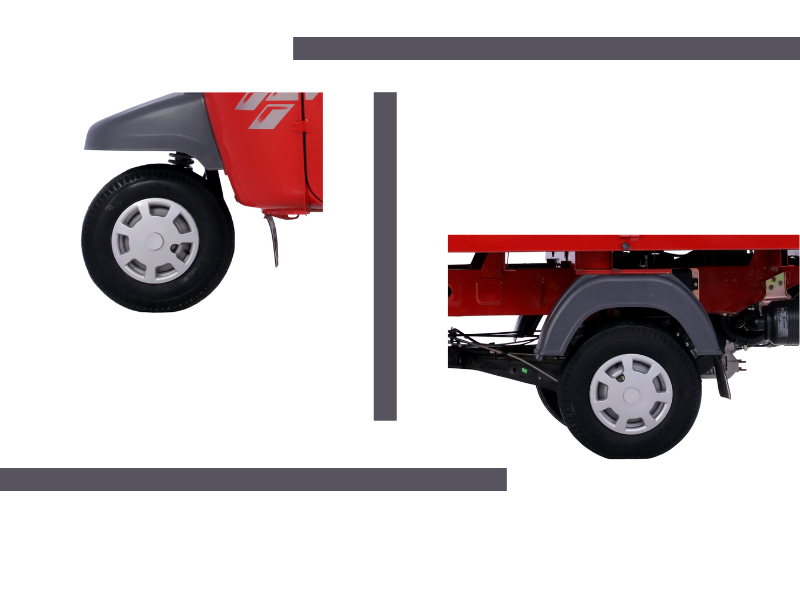

| Tyre size | – | 4.5 x 10 inch |
| Load index / Load rating | – | 400 kg |
Electrical system
| System voltage (V) | – | 12V |
| Battery rating (Ah) | – | 12 V 35 Ah |
| Wiper motor | – | 12 V (Single blade) |
| Starter motor | – | 12V , 1 kw |

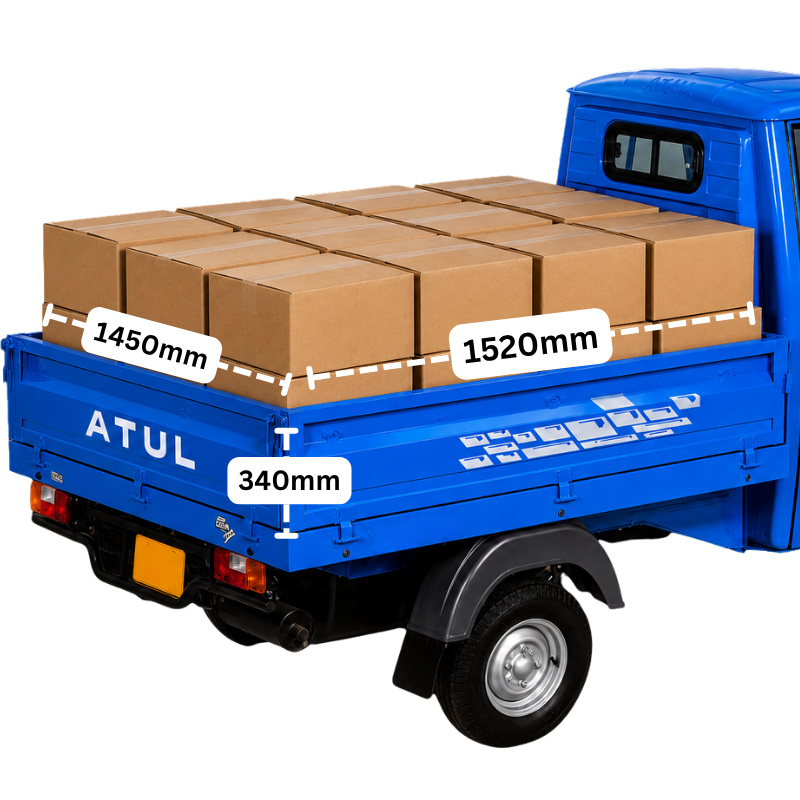

Dimensions
| Wheel base (mm) | – | 1925 mm |
| Overall width (mm) | – | 1450 mm |
| Overall length (mm) | – | 1700 mm |
| Overall height (mm) | – | 340 mm |
| Min. ground clearance (mm) | – | 225 mm |
| Turning radius (mm) | – | 2750 mm |
Body & Weights
| Maximum GVW kg (for rigid vehicles) | – | 995 kg |
| Kerb weight | – | 426 kg |

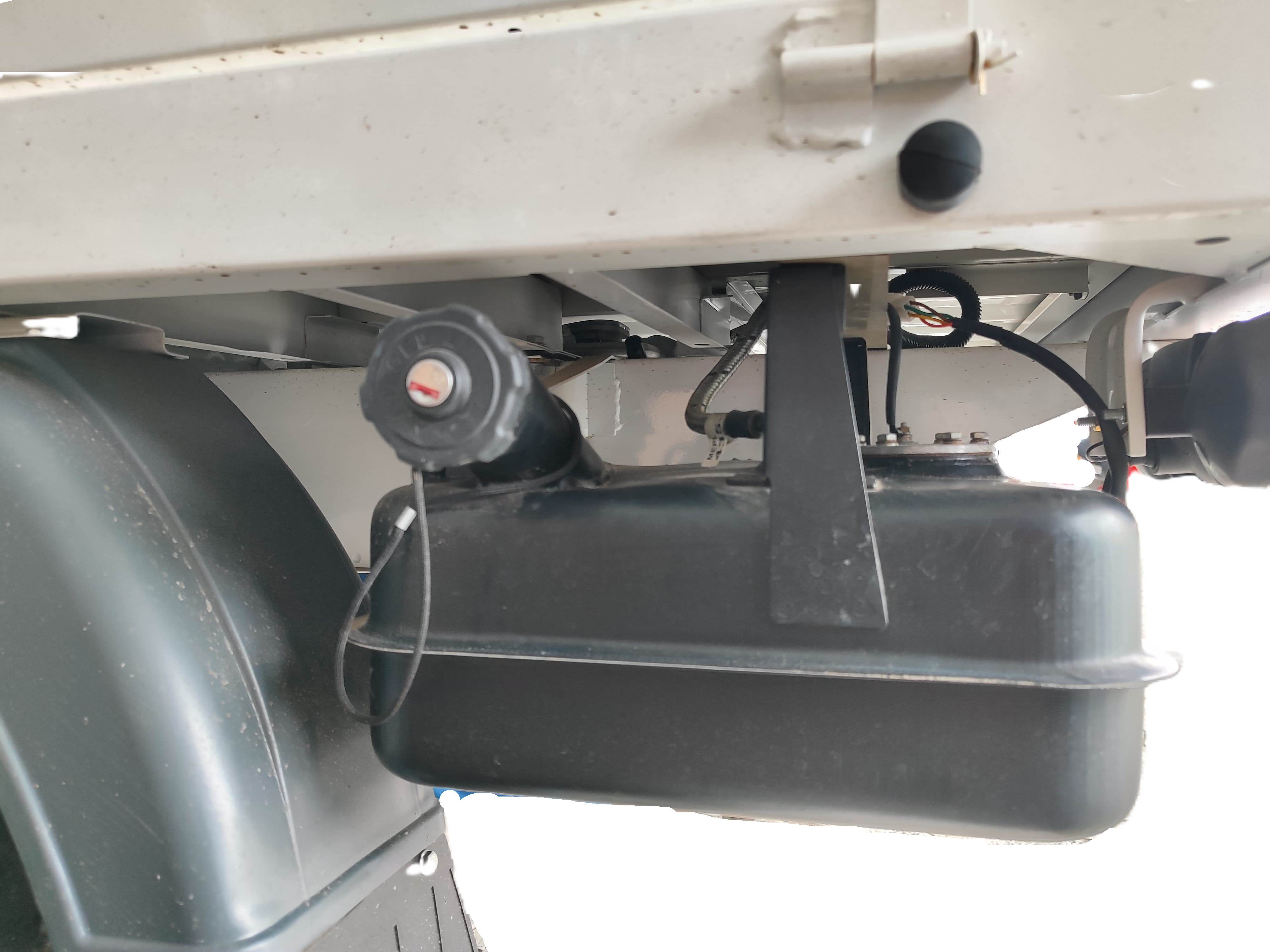

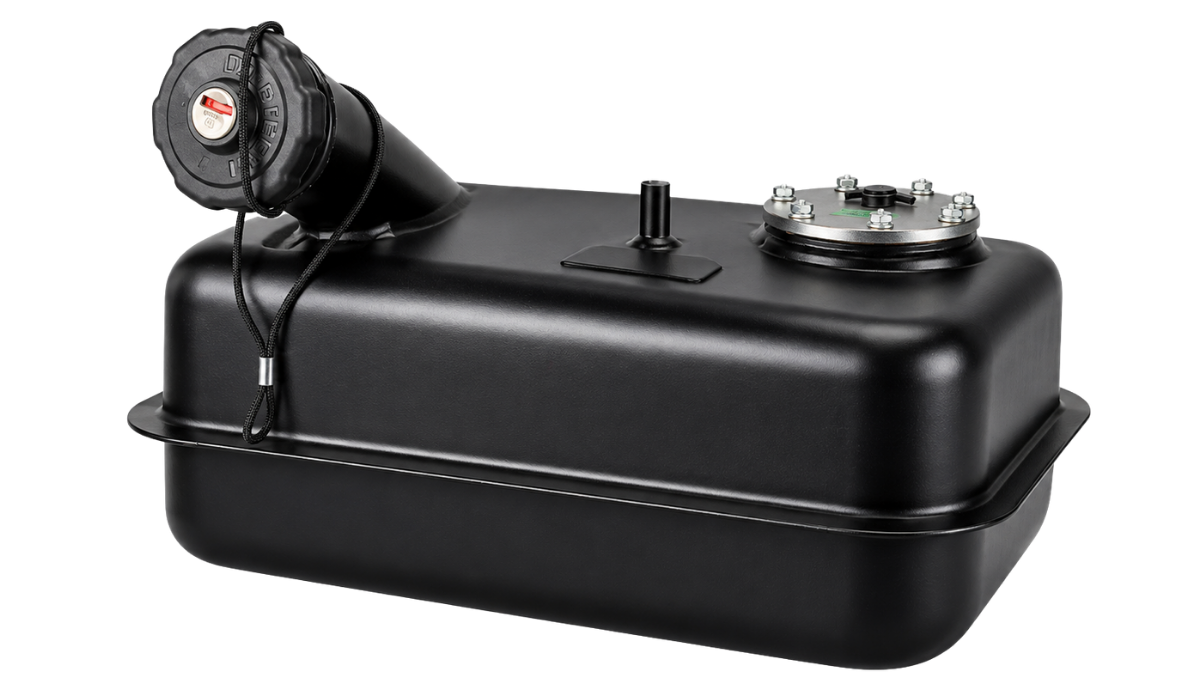

| Fuel Tank Capacity | – | 10.5 Litre : Petrol |
| Gradeability | – | 10.2 Degree |

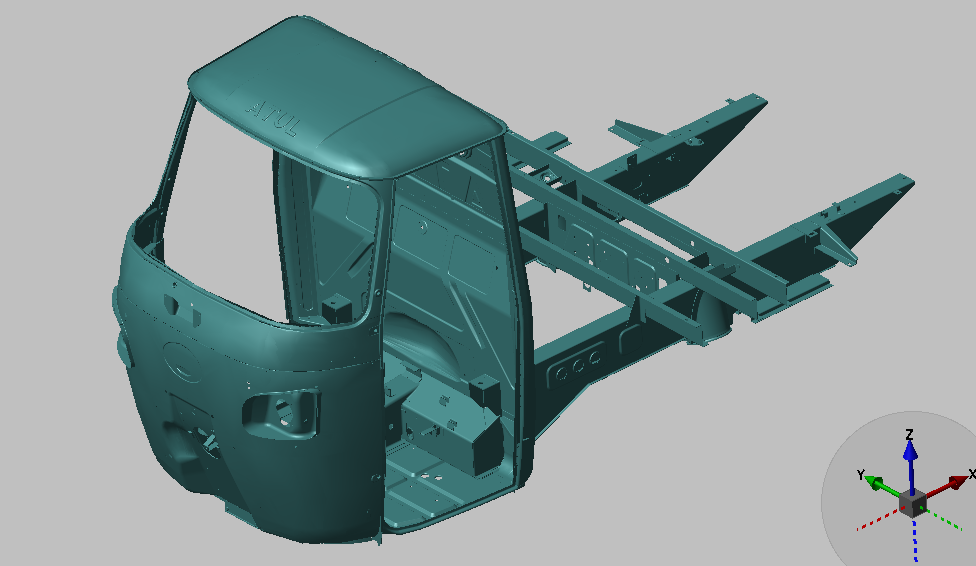

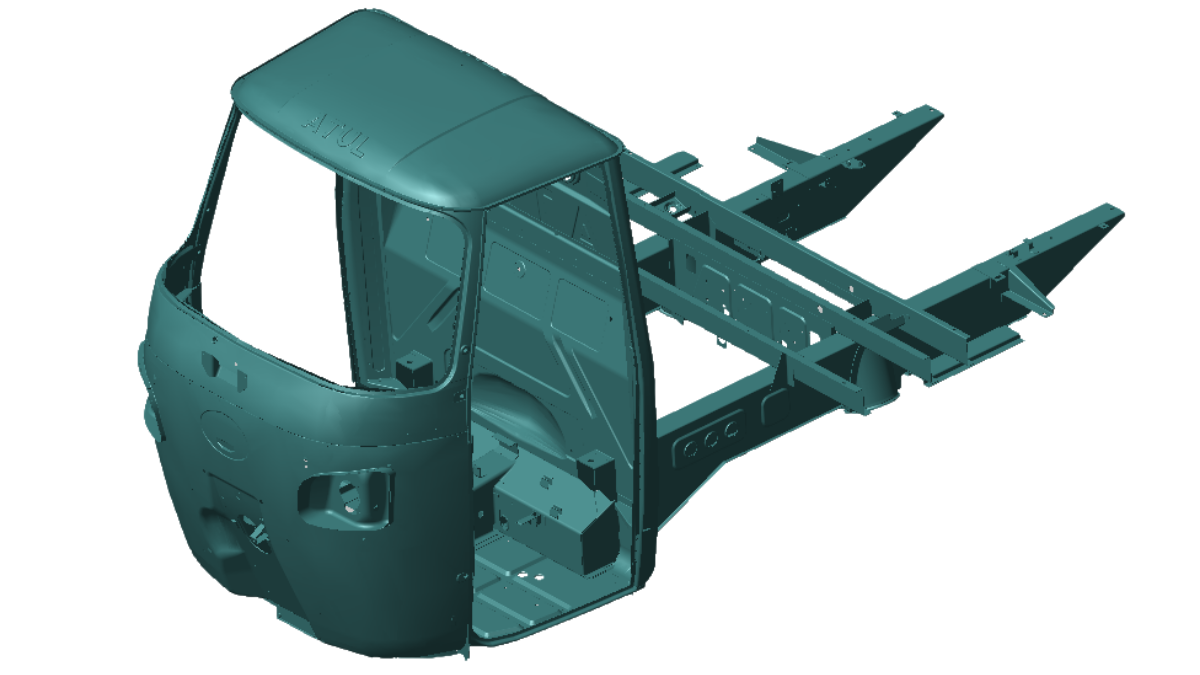

| Chassis Frame | – | Monocoque Pressed Section |
| Seating Capacity | – | 3 Passenger + 1 Driver |
