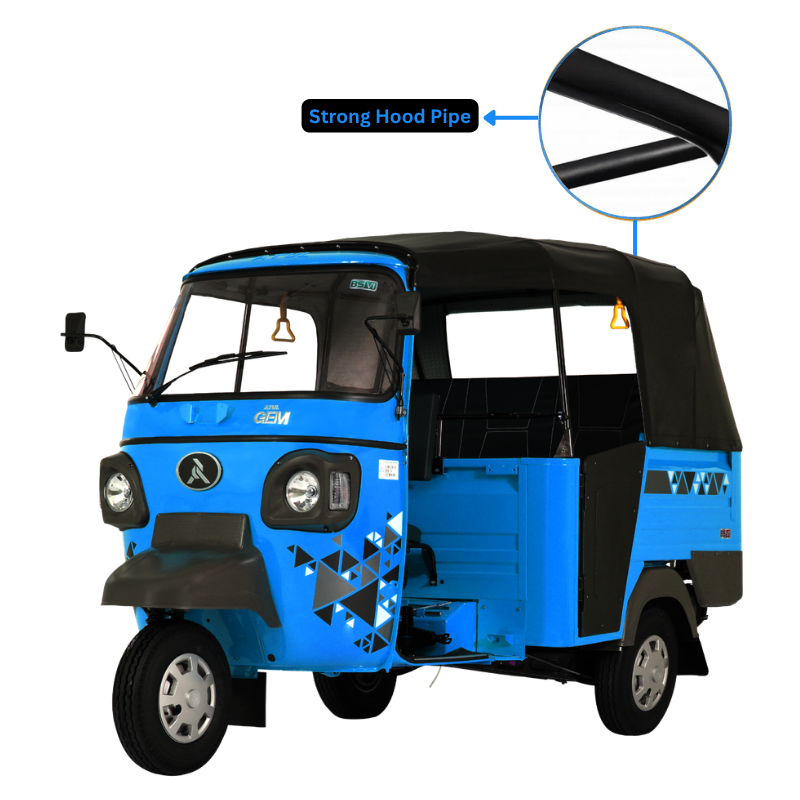

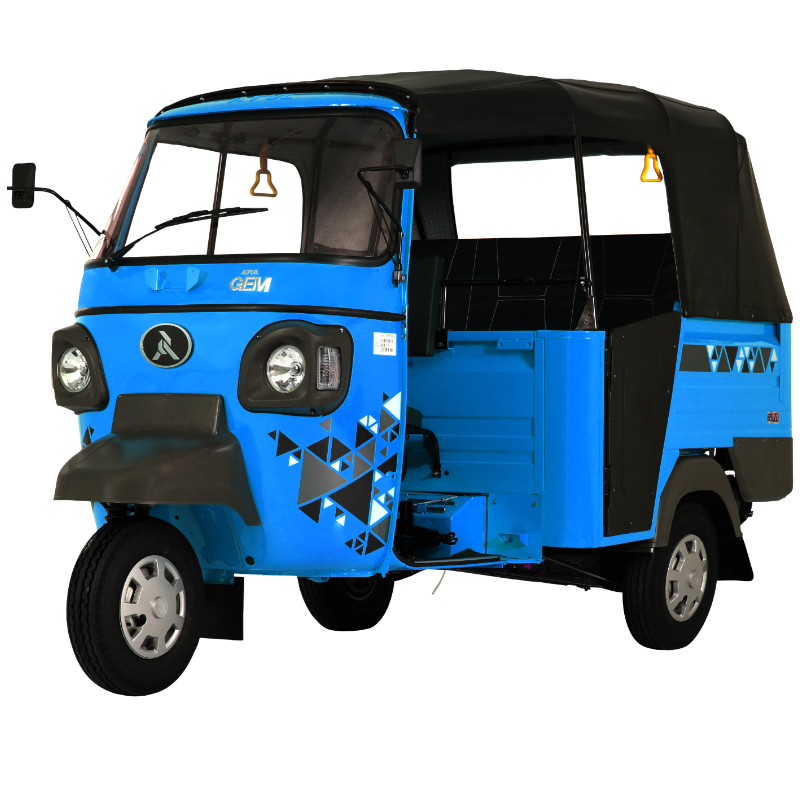

PASSENGER PETROL
ENGINE
198.6cc Single Cylinder, Four Stroke
POWER
8.6 kW @ 6000 rpm
COOLING
Air Cooled
FUEL PUMP
10.5 Ltr.
CLUTCH
Multi Plate wet type
KERB WEIGHT
415 Kg
Know More
Download Brochure

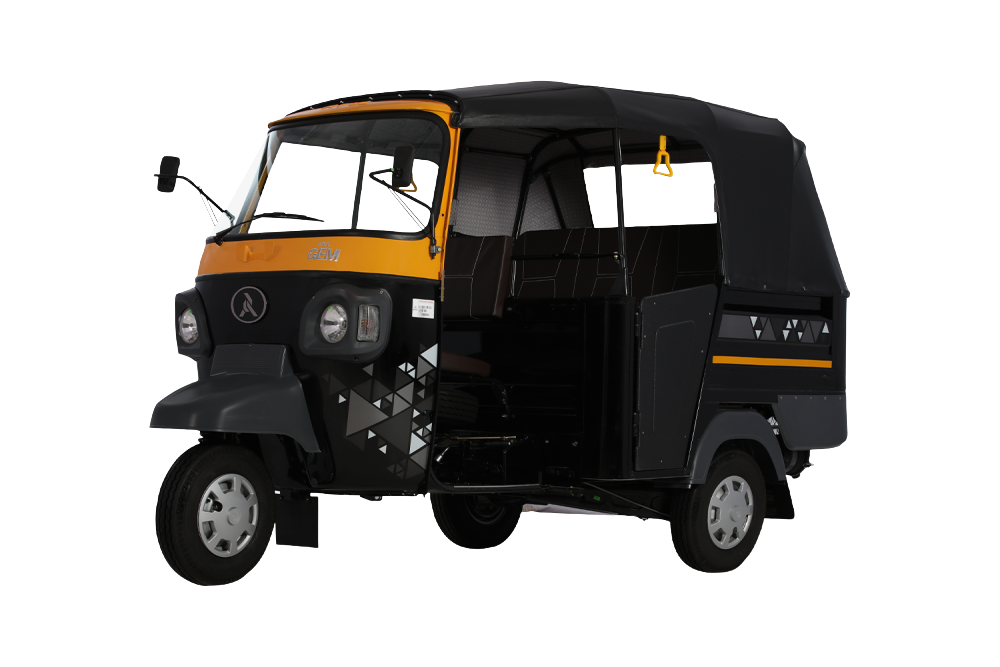

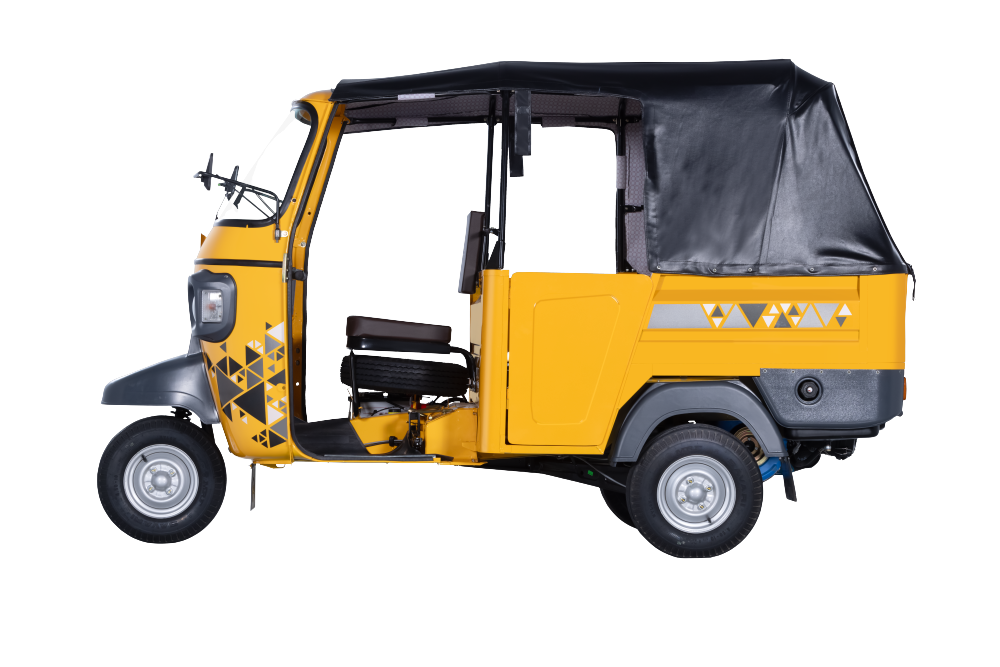

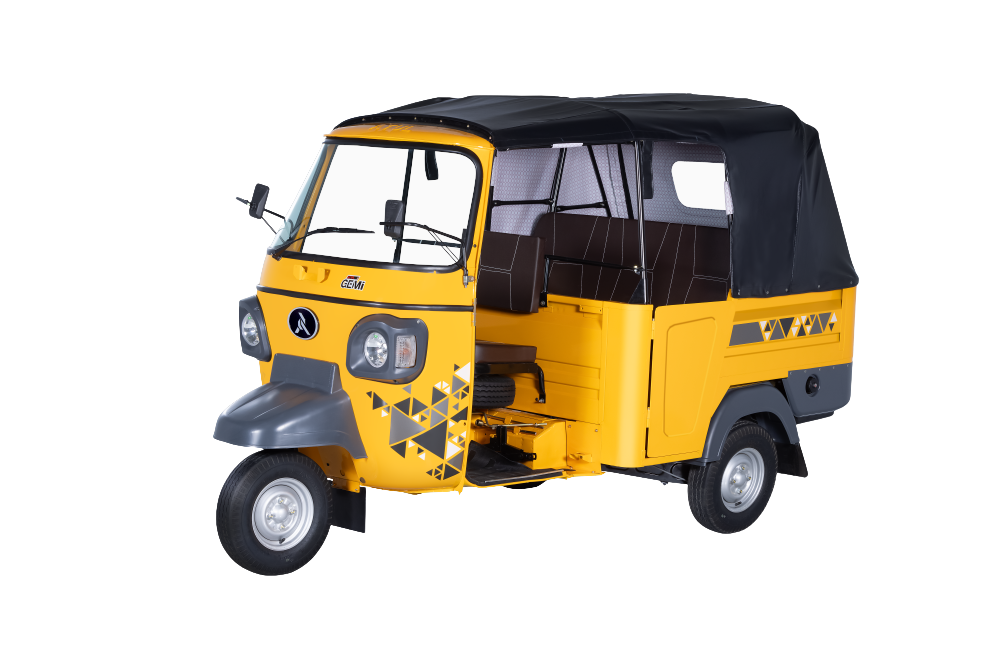

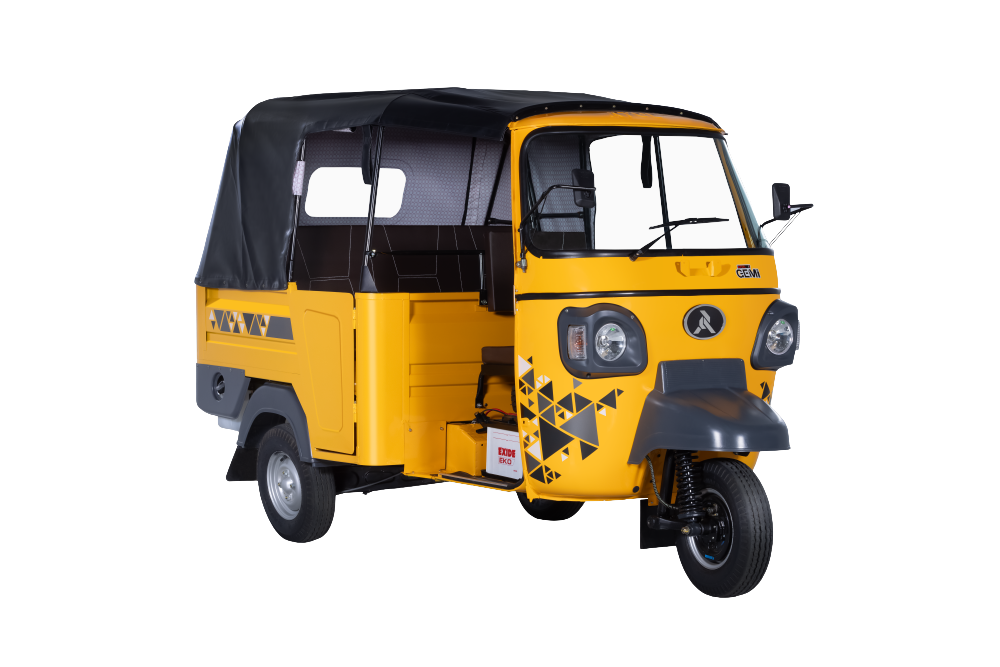

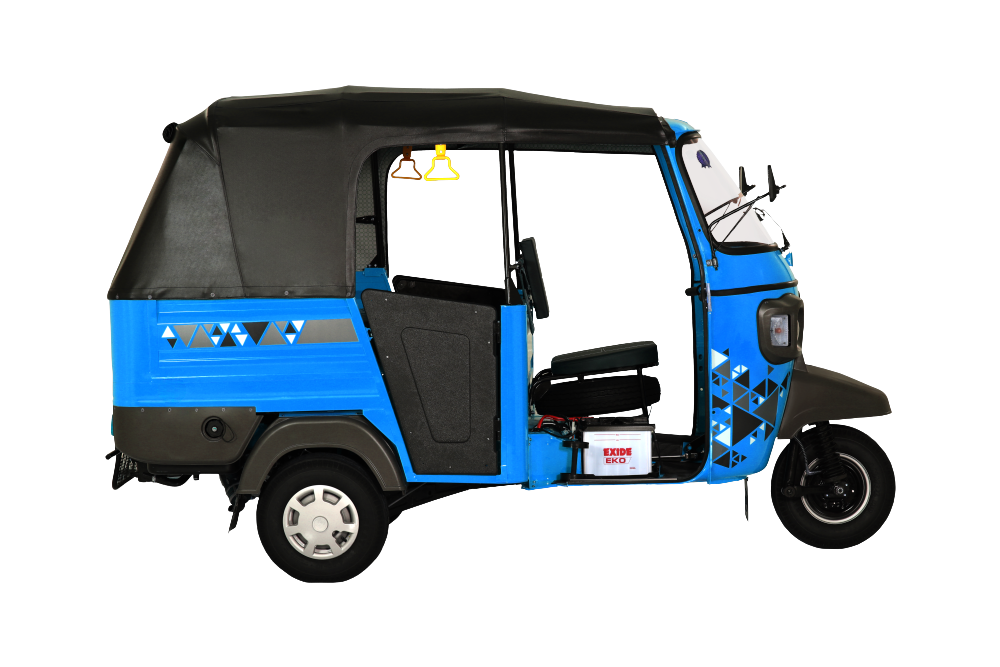

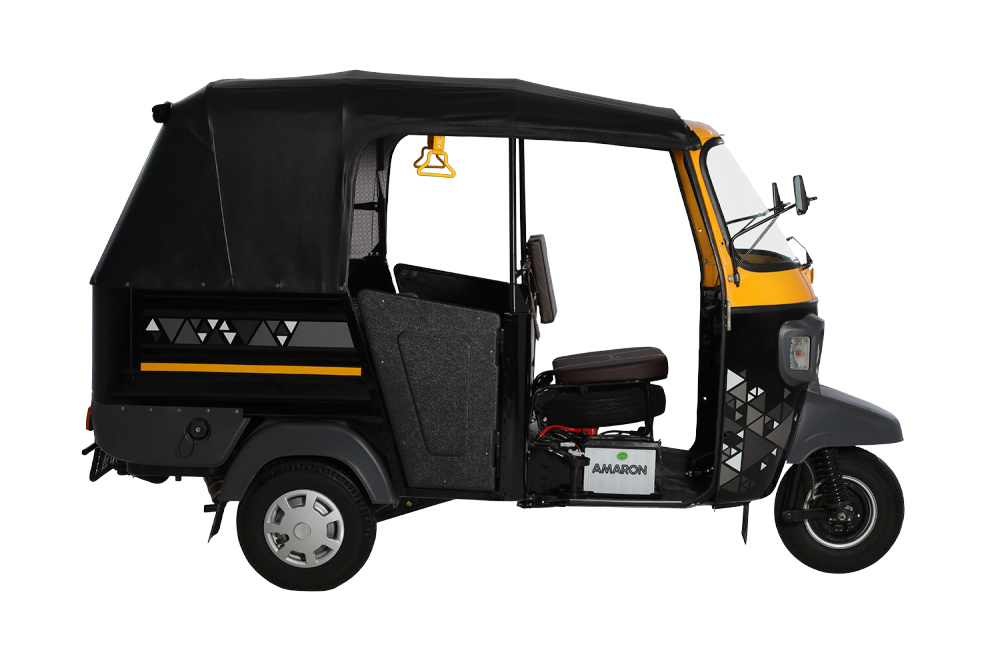

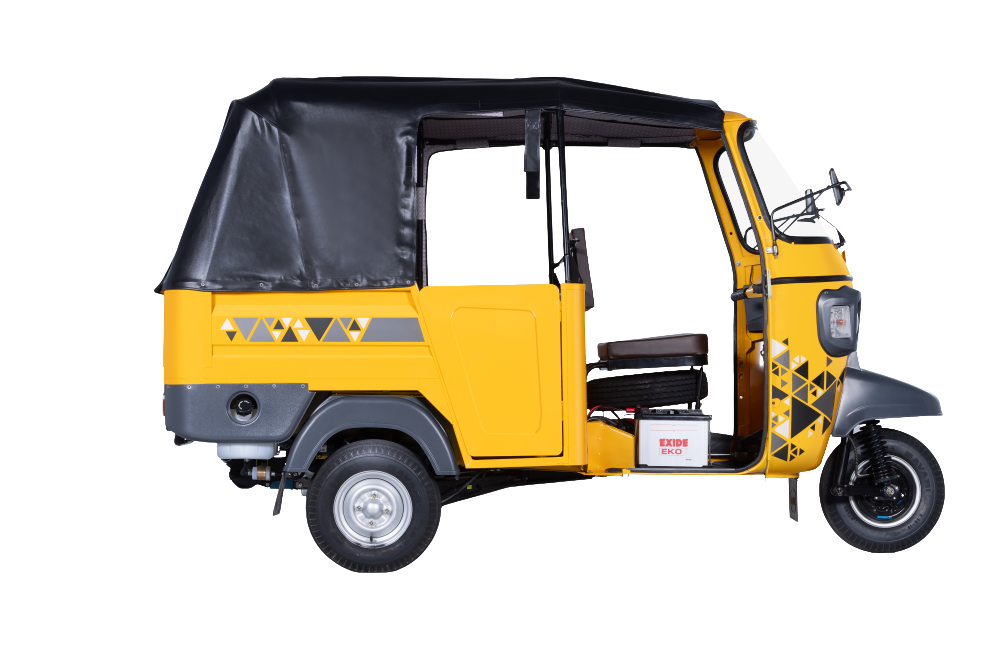

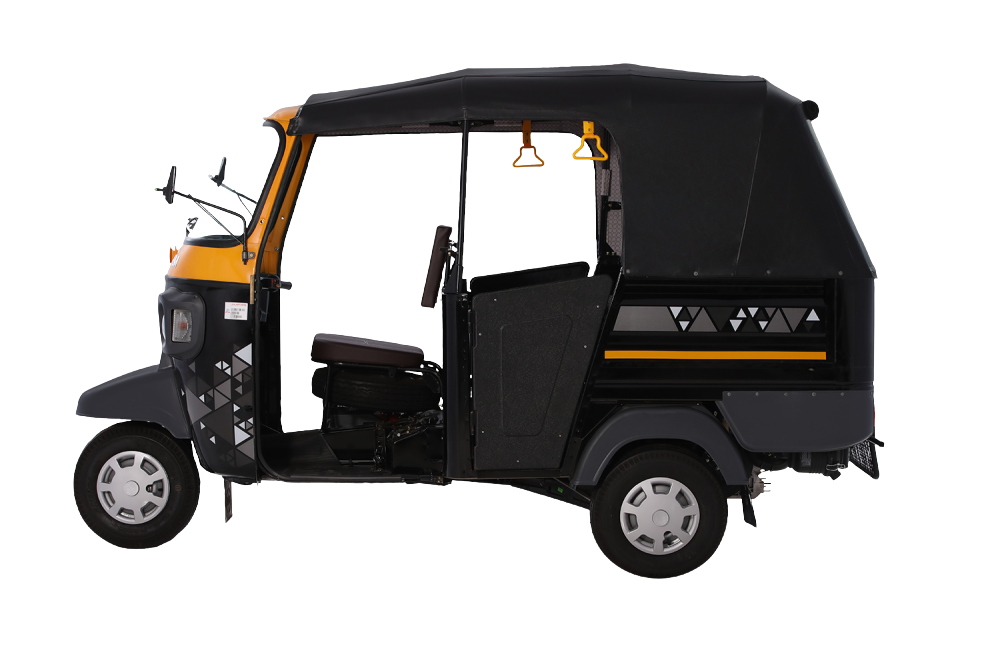

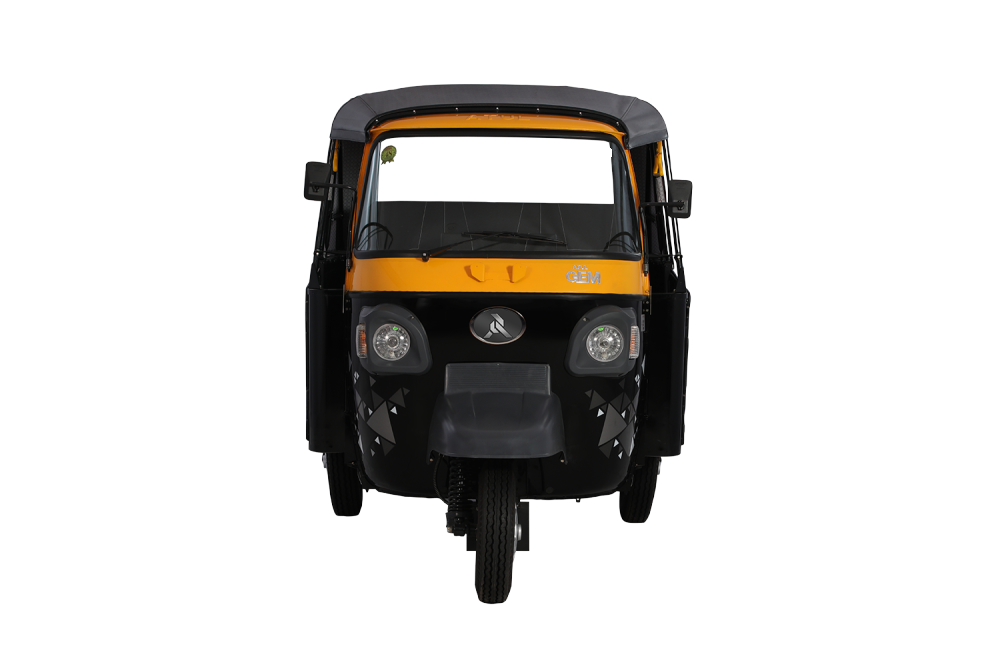

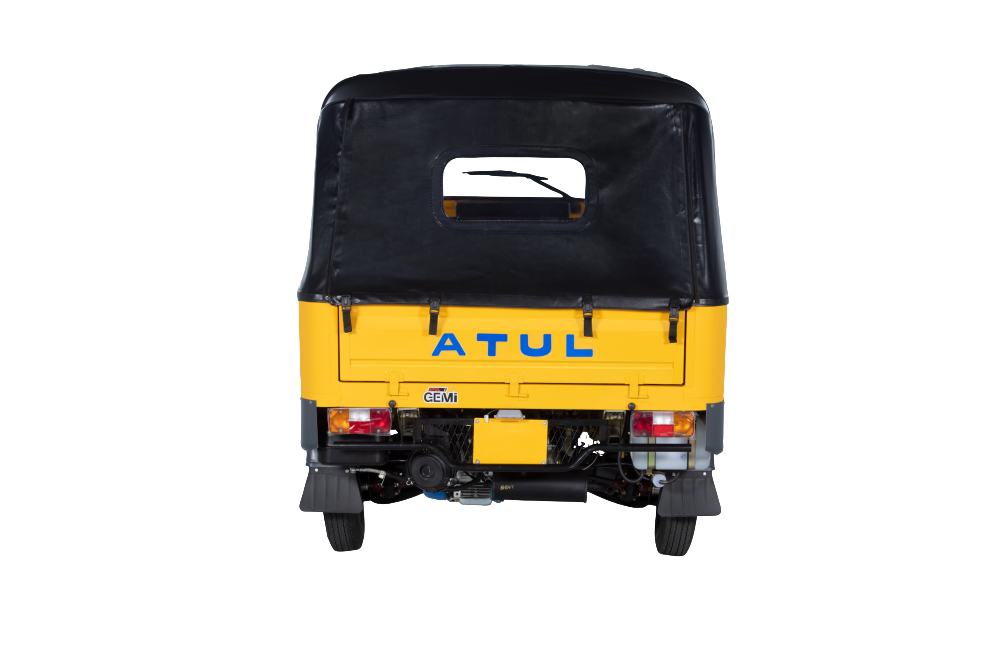

ATUL GEM - Passenger Petrol specification
Performance
Suspension
Brakes & Tyre
Electrical system
Dimensions
Body & Weights
Performance

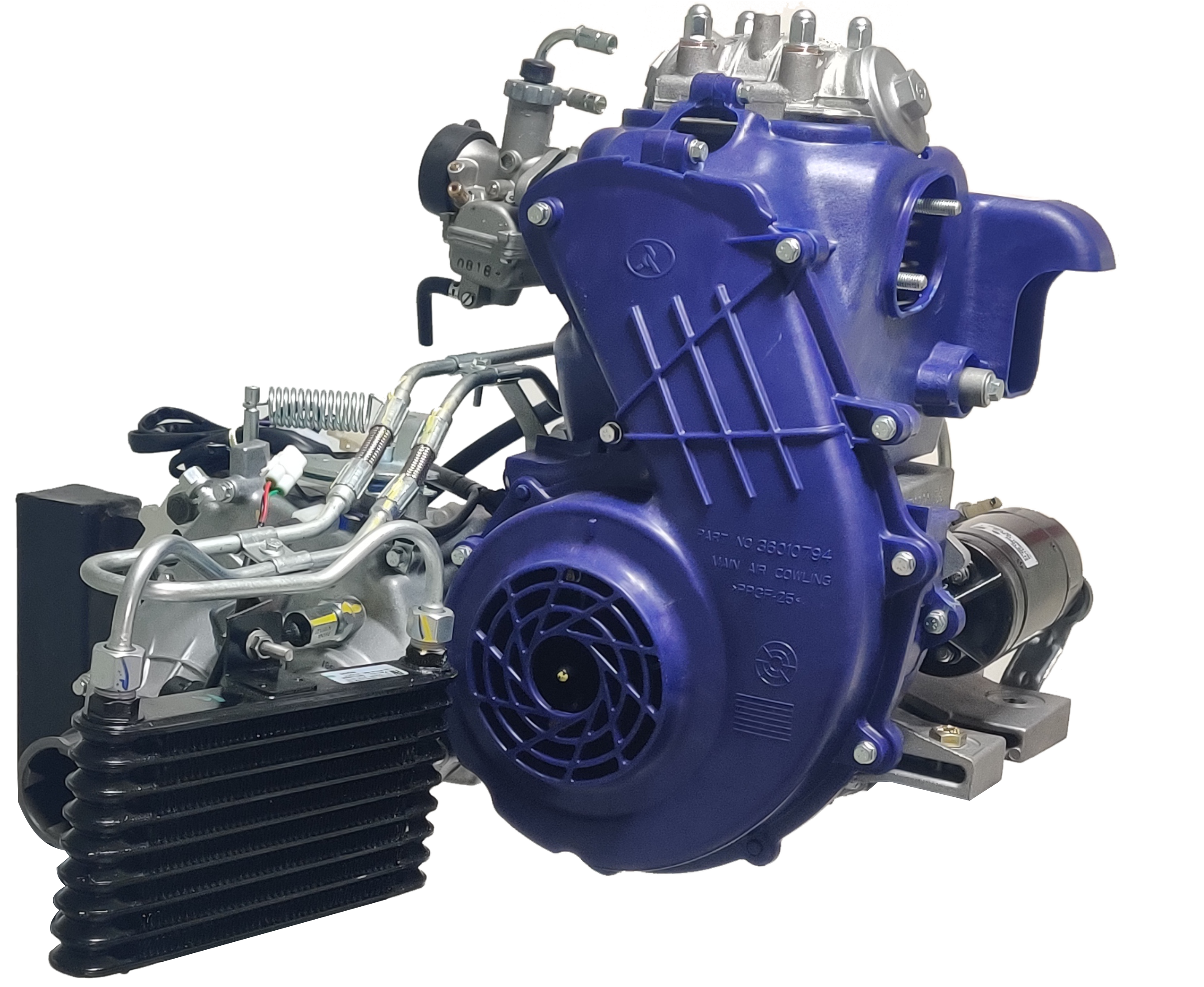

| Engine Type | – | Single Cylinder Four Stroke Spark Ignition - Air Cooled. |
| Displacement | – | 198.6 cc |
| Max. Engine output (kW @ rpm) | – | 8.6 kW @ 6000 rpm |
| Max. Torque (Nm @ rpm) | – | 15.8 Nm @ 4000 rpm |
| Clutch Type | – | Multi Plate wet type |
| Gear Box | – | Constant mesh |
| No. of gears | – | 4 – Forward & 1- Reverse |
Suspension
| Suspension type | – | Column and strut type suspension system |

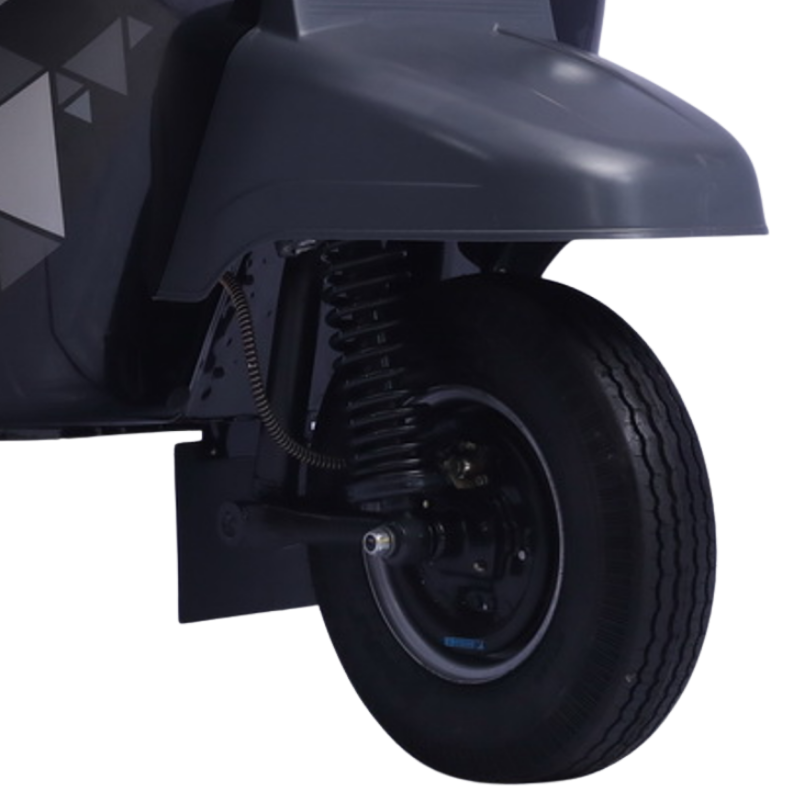

| Front Suspension | – | Bigger Swing Arm & Spring with Leading Link Suspension |
| Rear Suspension | – | Helical Compression Spring & Shock Absorber |
| Steering Type | – | Handle bar |
Brakes & Tyre
| Brake Type | – | Drum Type, Dual Circuit Hydraulic Front & Rear with TMC. |
| Parking brake | – | Hand operated, Ratchet & lever type, acting on rear wheel |

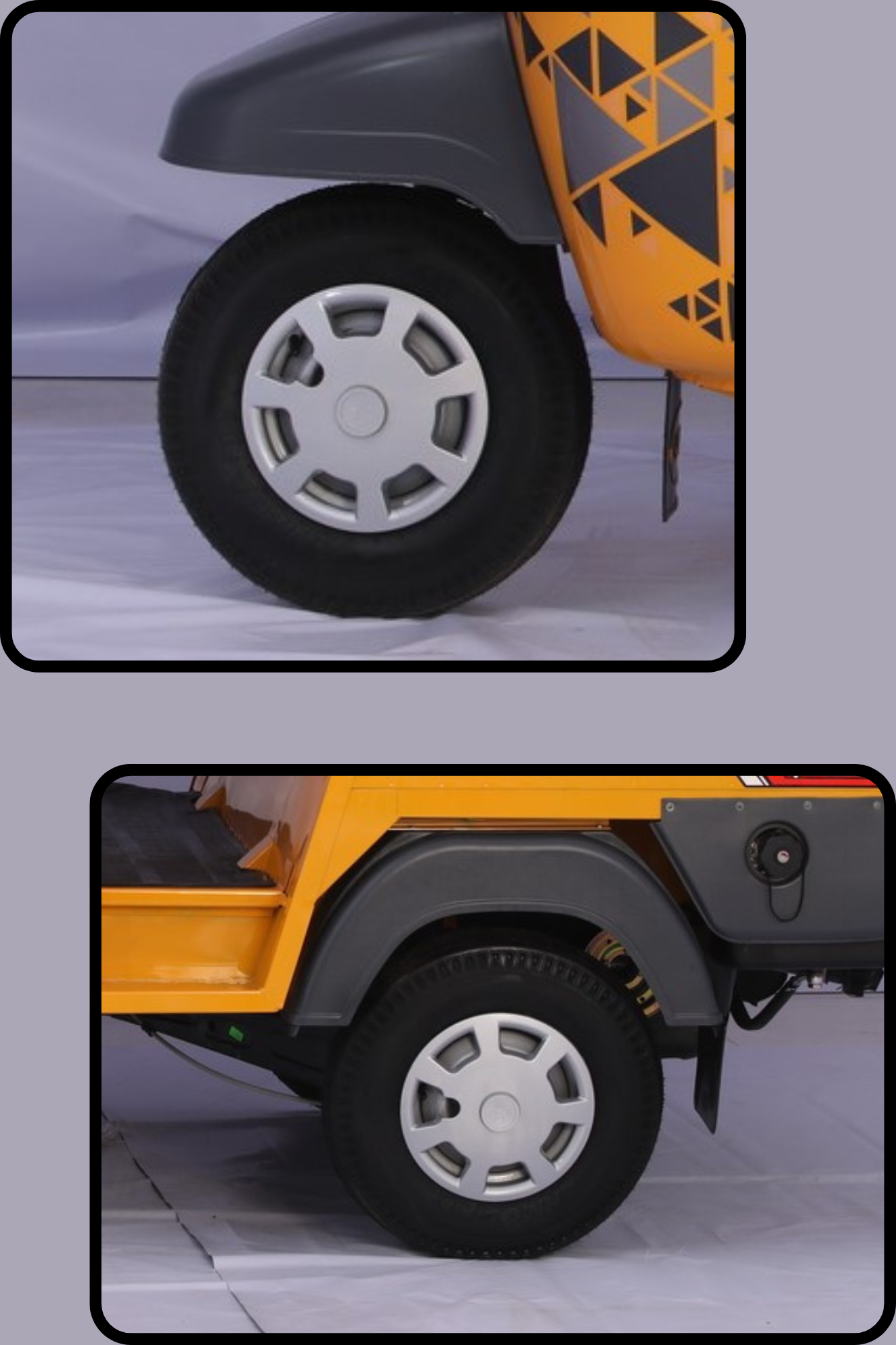

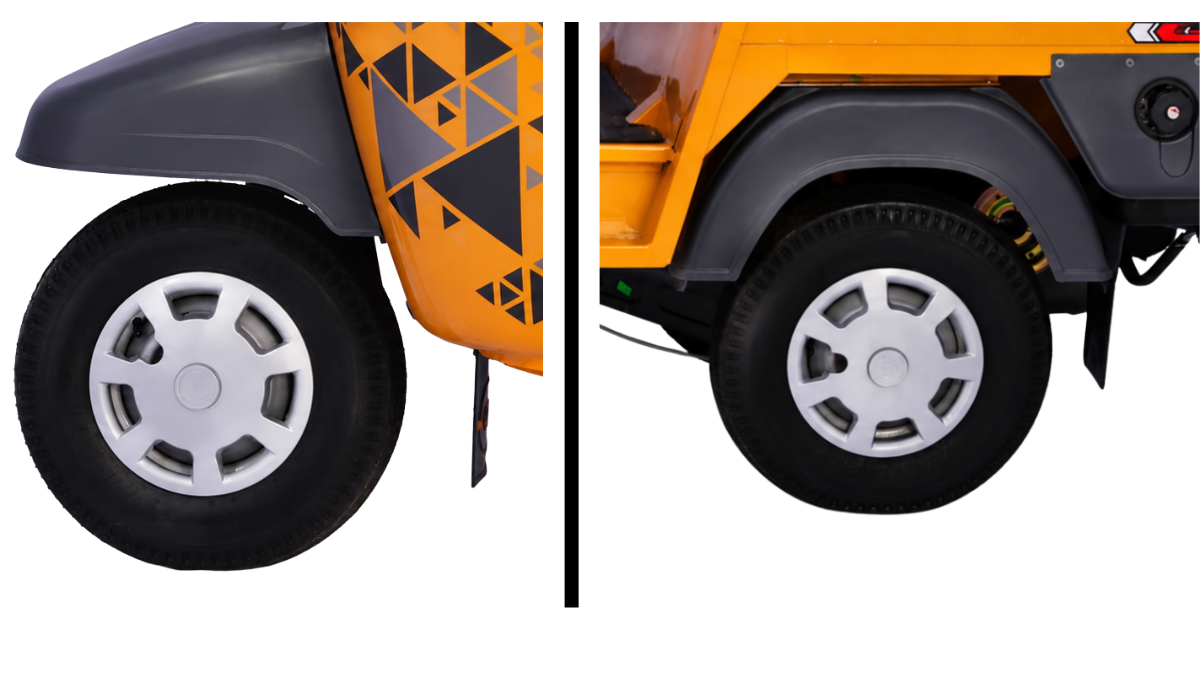

| Tyre size | – | 4.5 x 10 inch |
| Load index / Load rating | – | 520 kg |
Electrical system
| System voltage (V) | – | 12V |
| Battery rating (Ah) | – | 12 V 35 Ah |
| Wiper motor | – | 12 V, 36W (Single blade) |
| Starter motor | – | 12V , 0.7 kw |

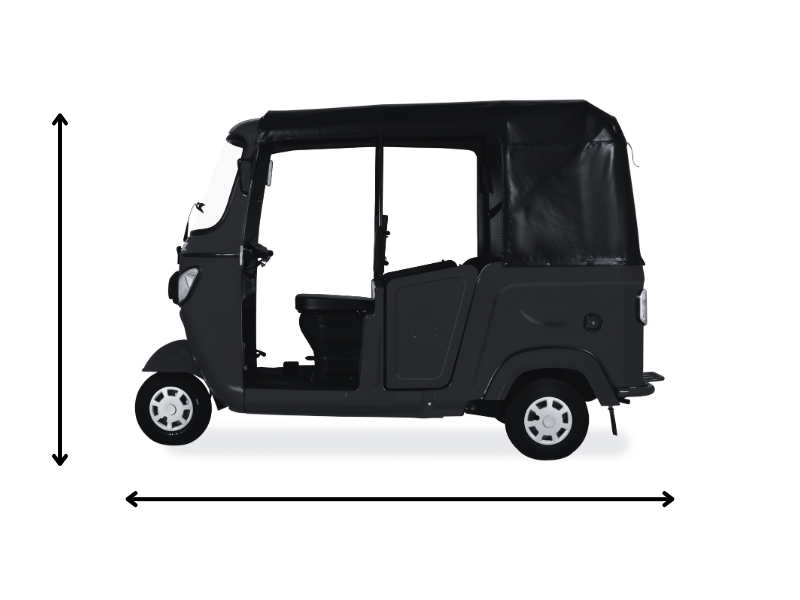

Dimensions
| Wheel base (mm) | – | 1925 mm |
| Overall width (mm) | – | 1480 mm |
| Overall length (mm) | – | 2930 mm |
| Overall height (mm) | – | 1850 mm |

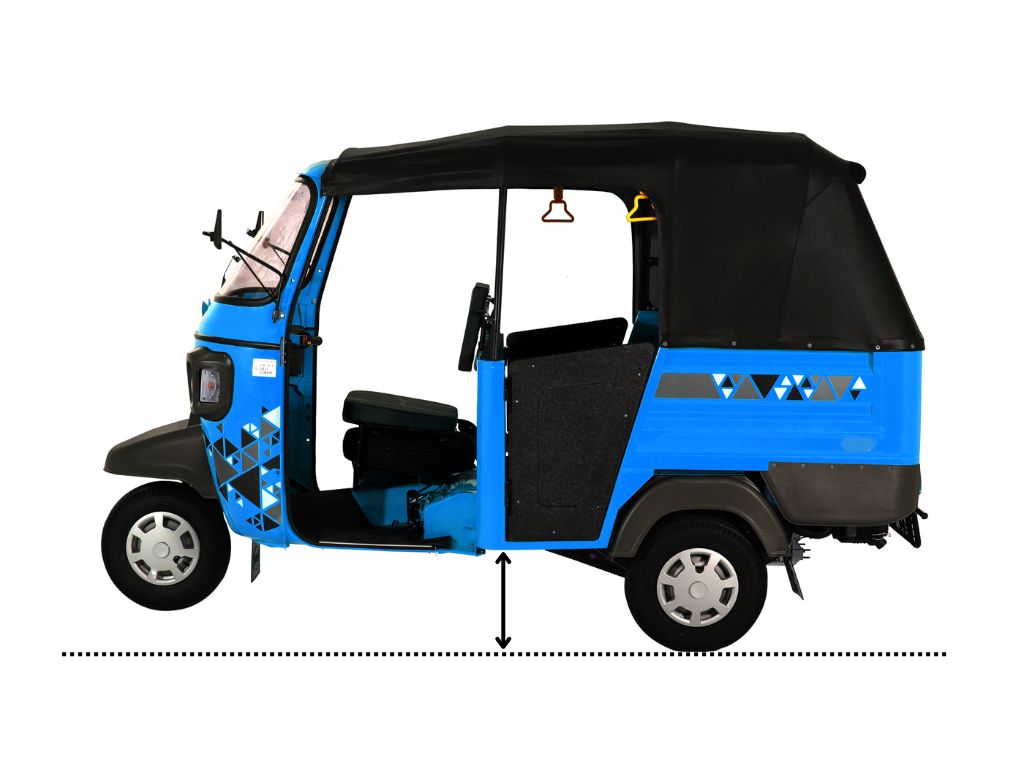

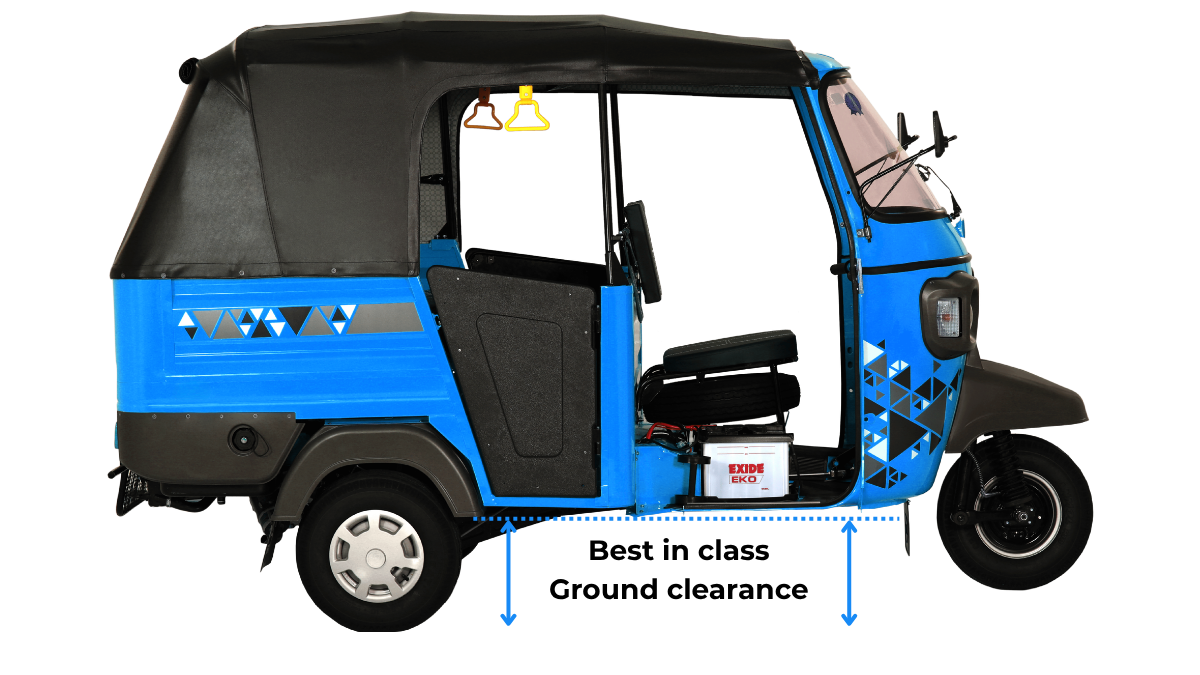

| Min. ground clearance (mm) | – | 255 mm |
| Turning radius (mm) | – | ~2750 mm |
Body & Weights
| Maximum GVW kg (for rigid vehicles) | – | 734 kg |
| Kerb weight | – | 415 kg |
| Fuel Tank Capacity | – | 10.5 Litre : Petrol |
| Gradeability | – | 10.2 Degree |

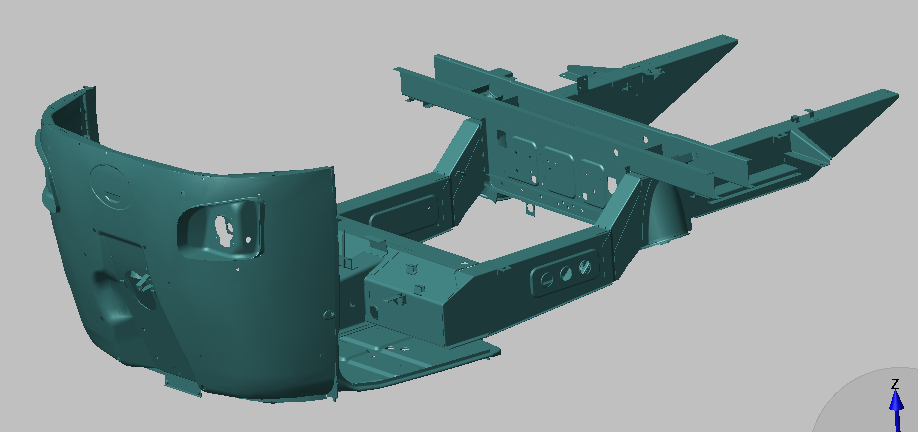

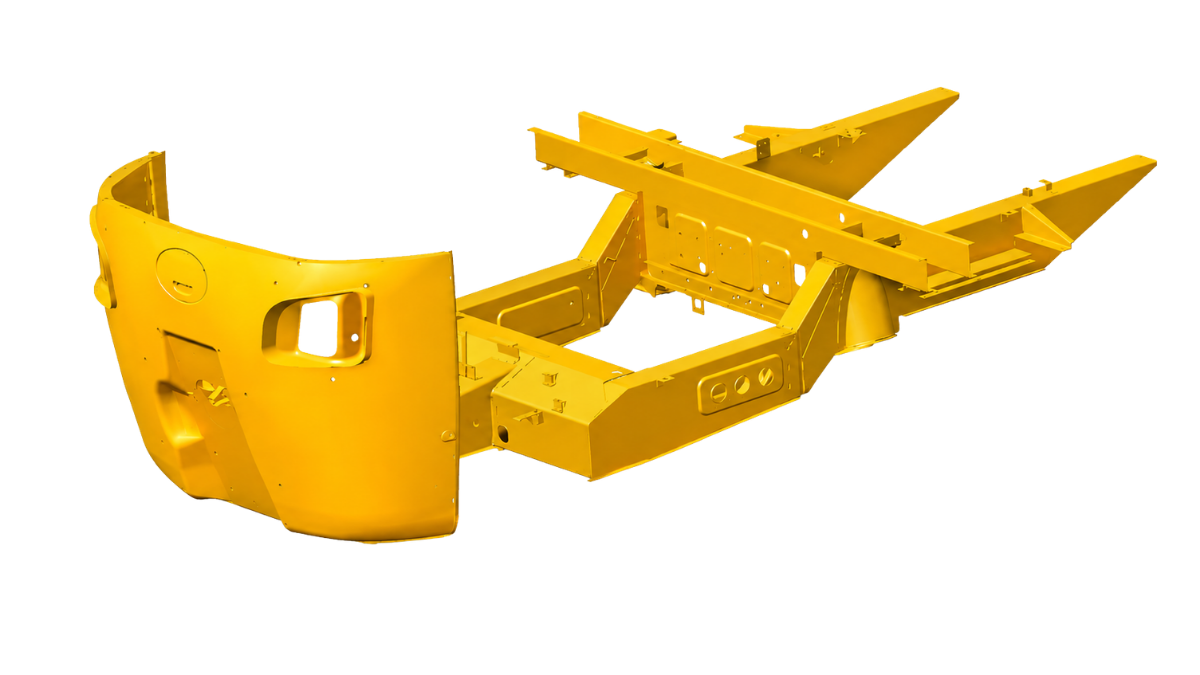

| Chassis Frame | – | Monocoque Type |

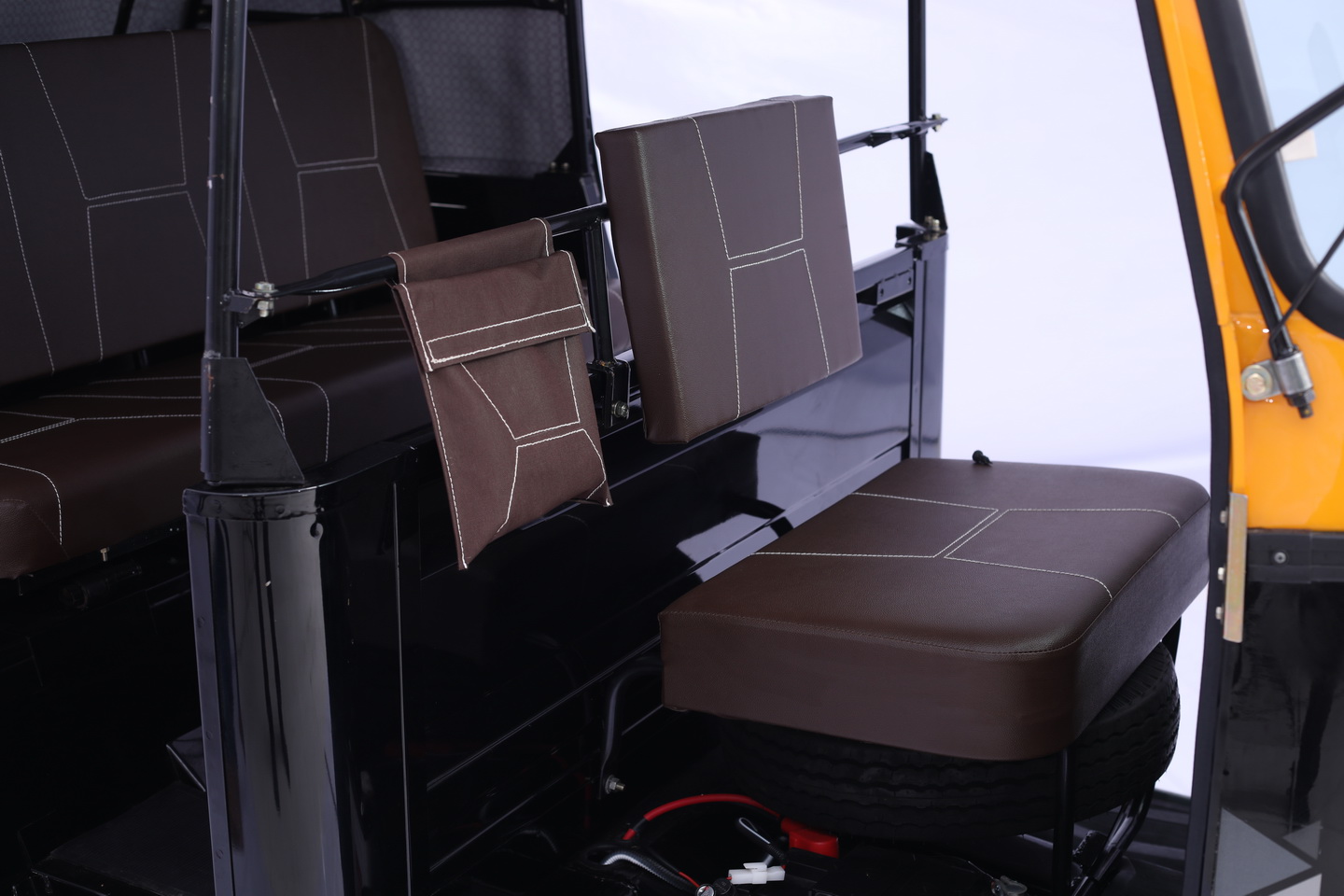

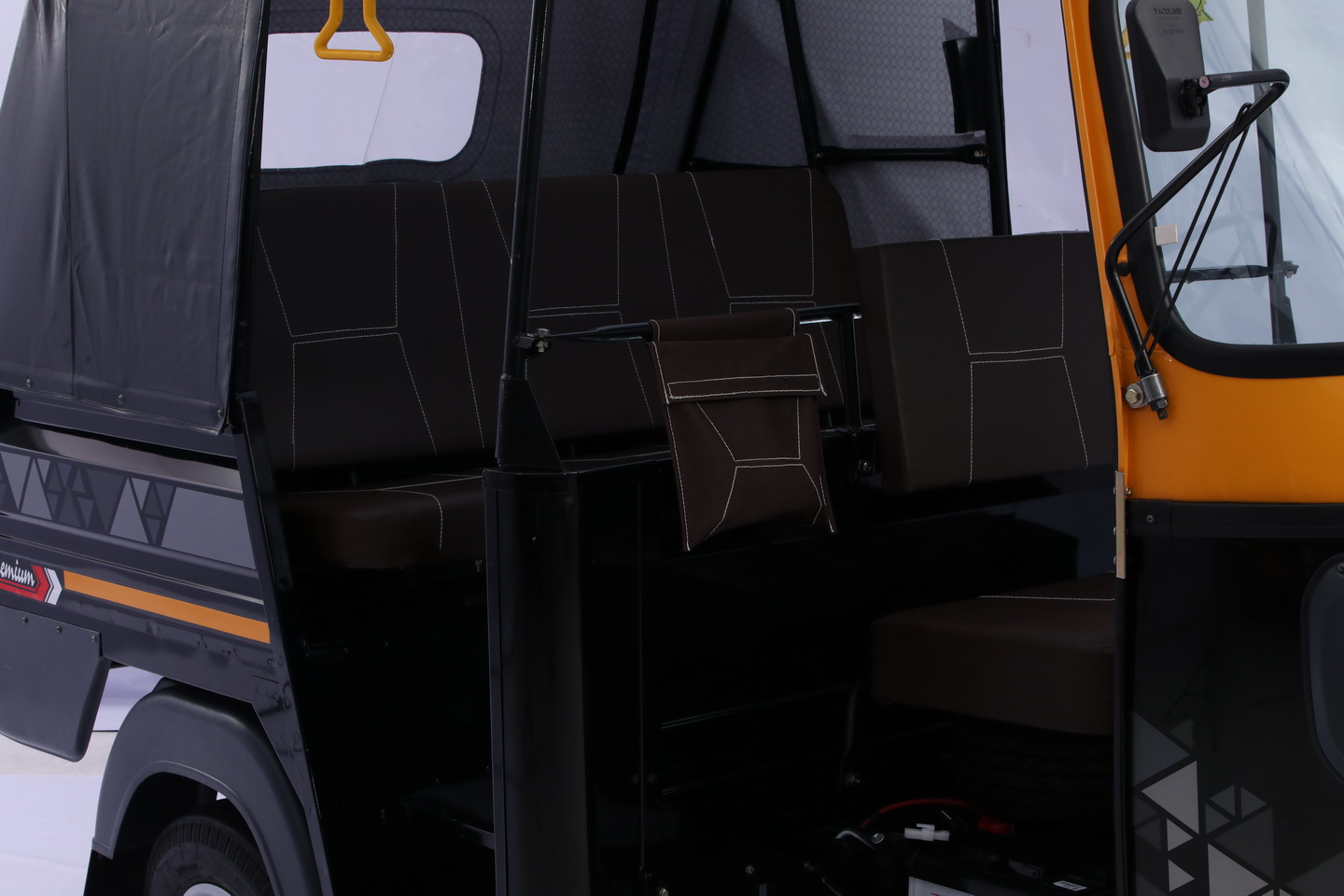

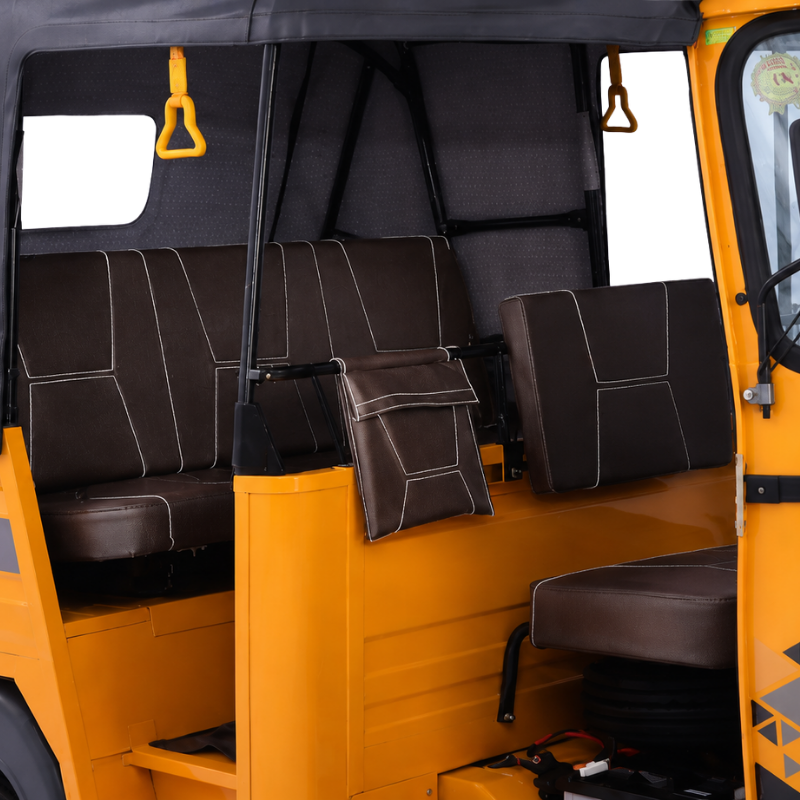

| Seating Capacity | – | 3 Passenger + 1 Driver |
