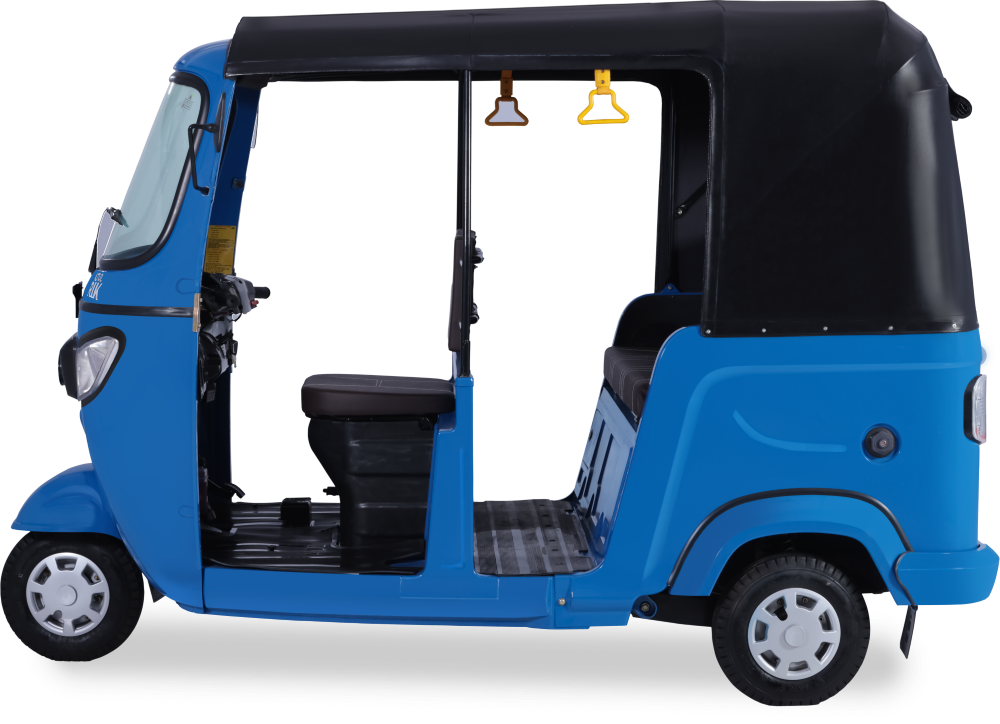

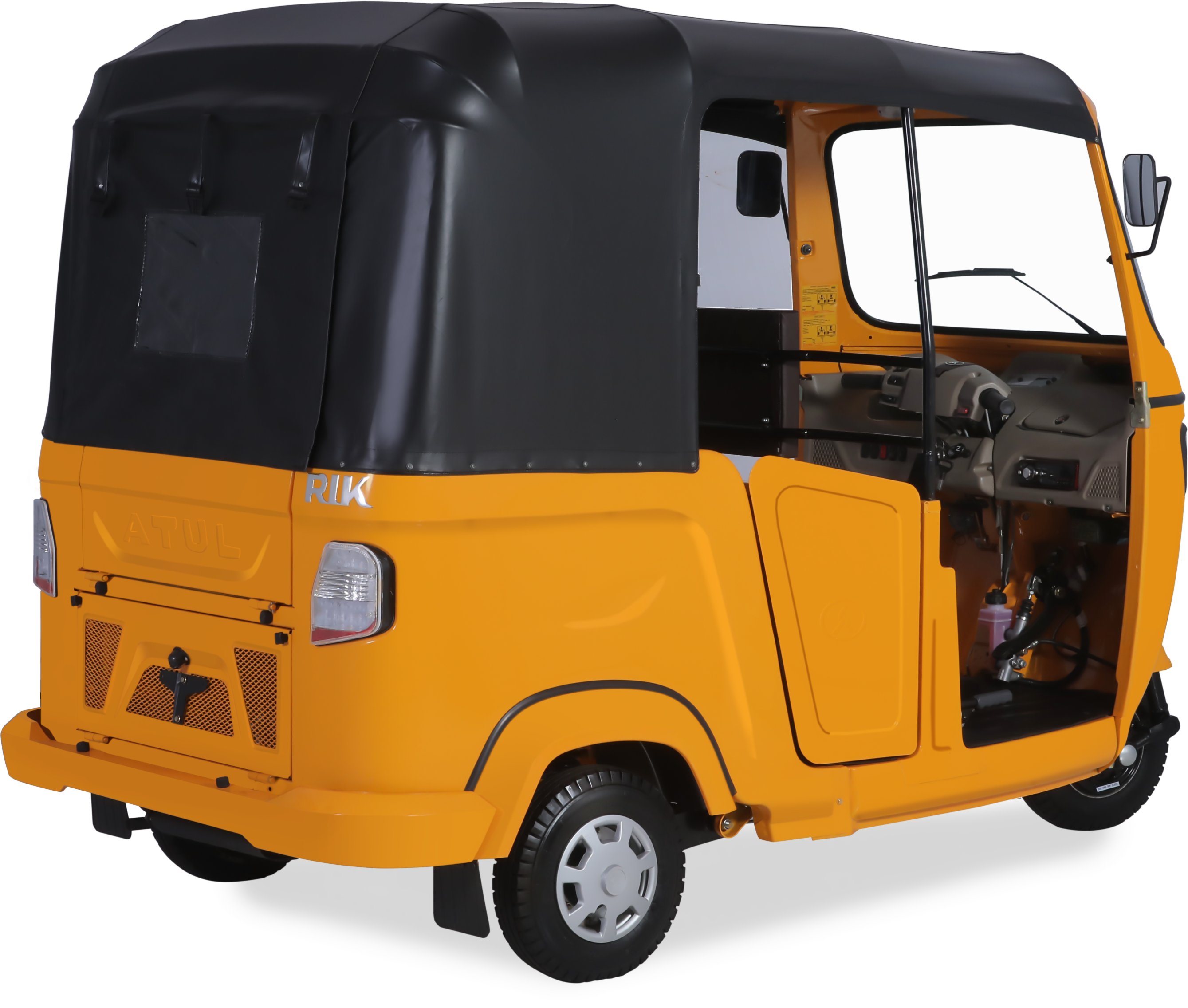

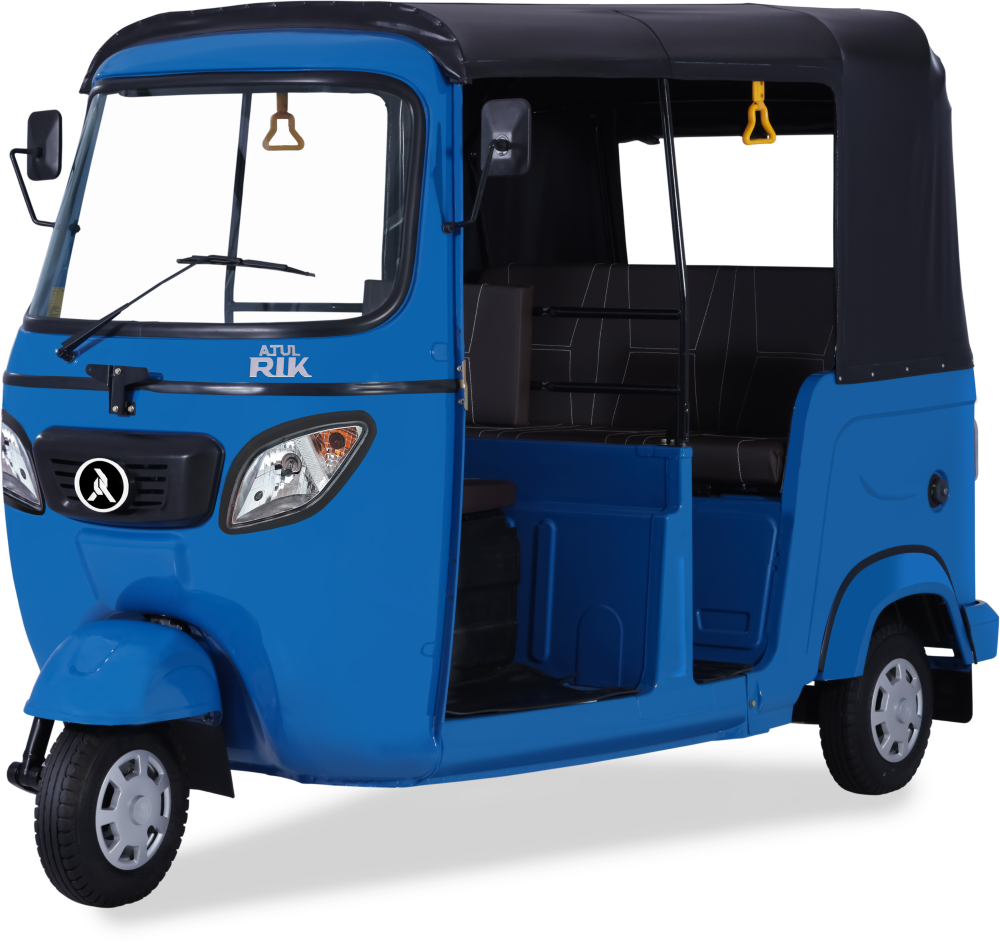

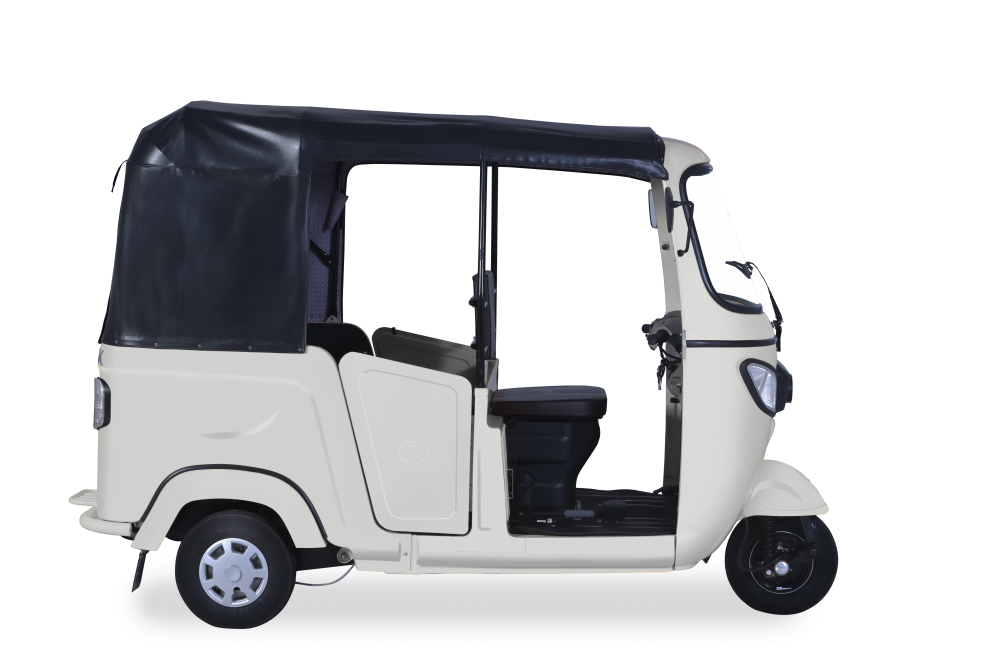

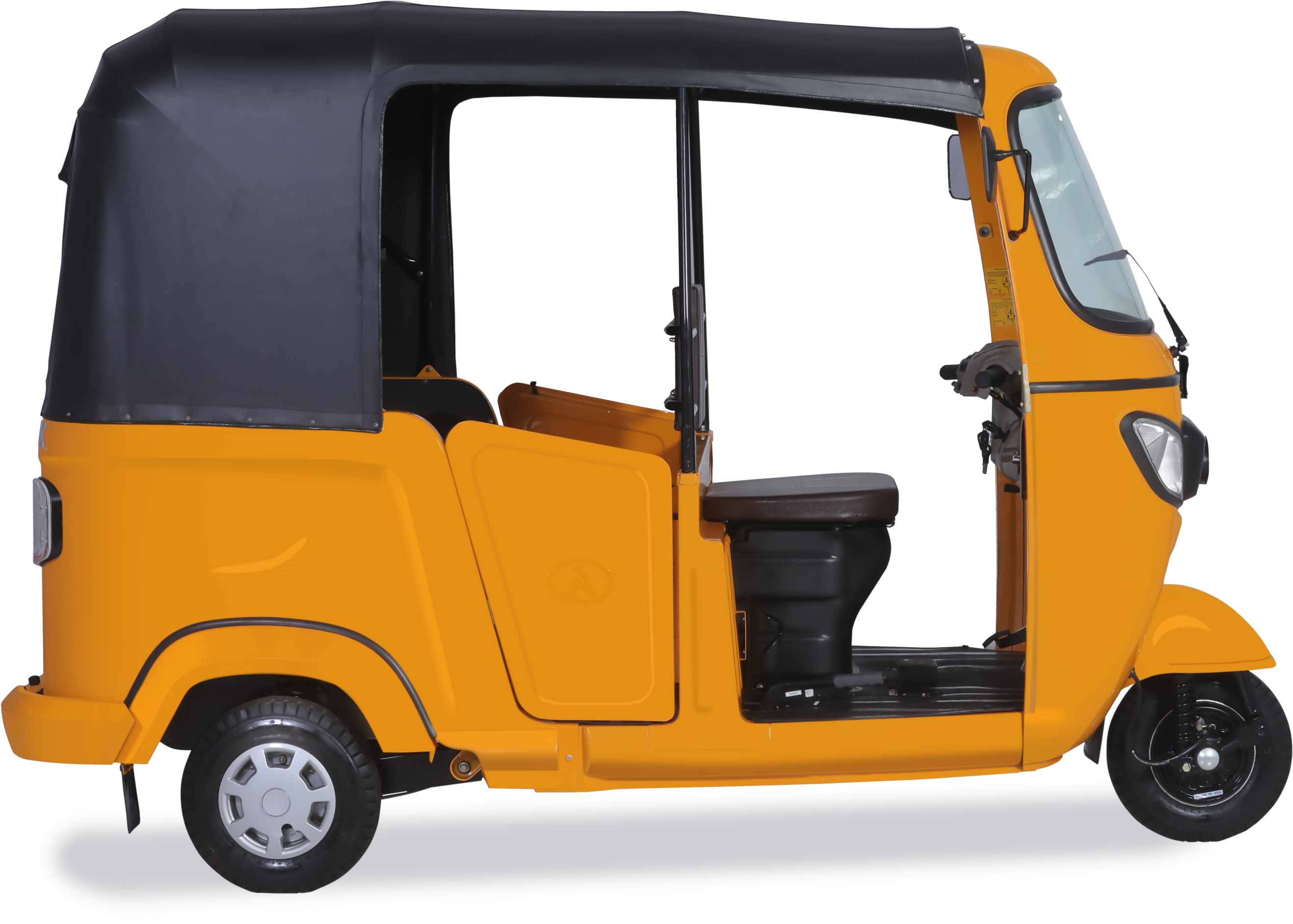

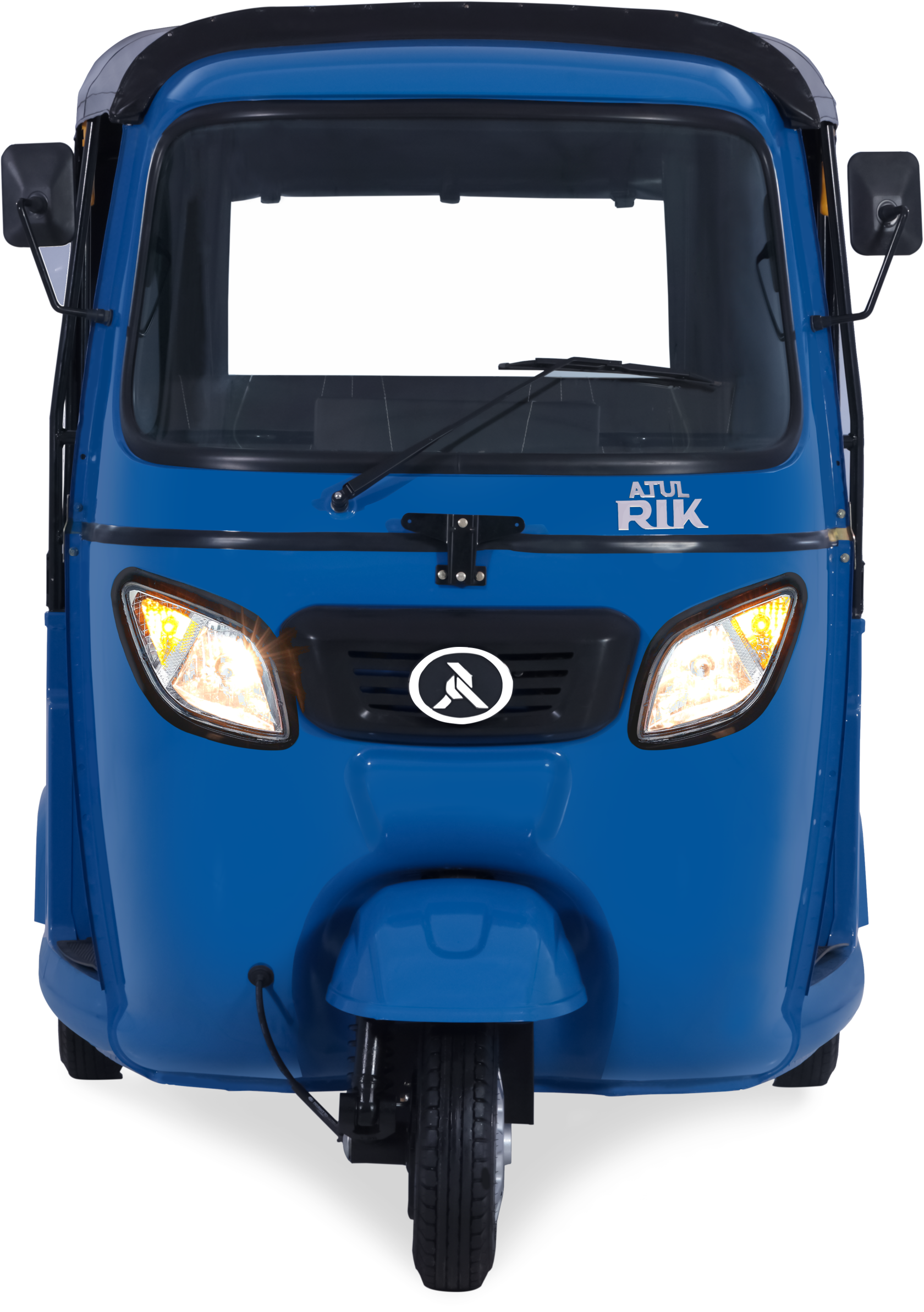

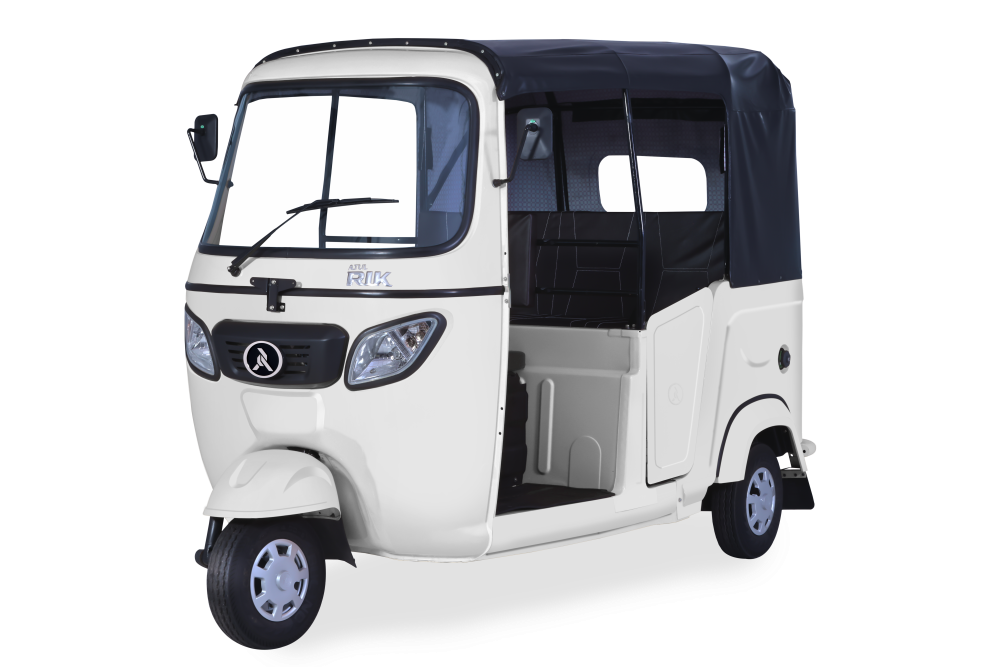

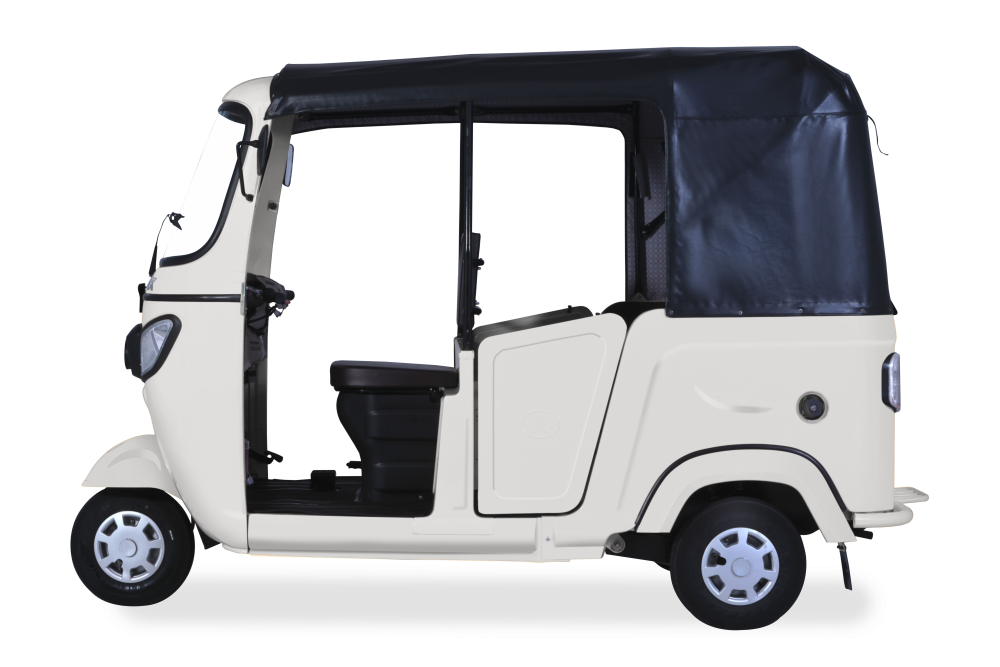

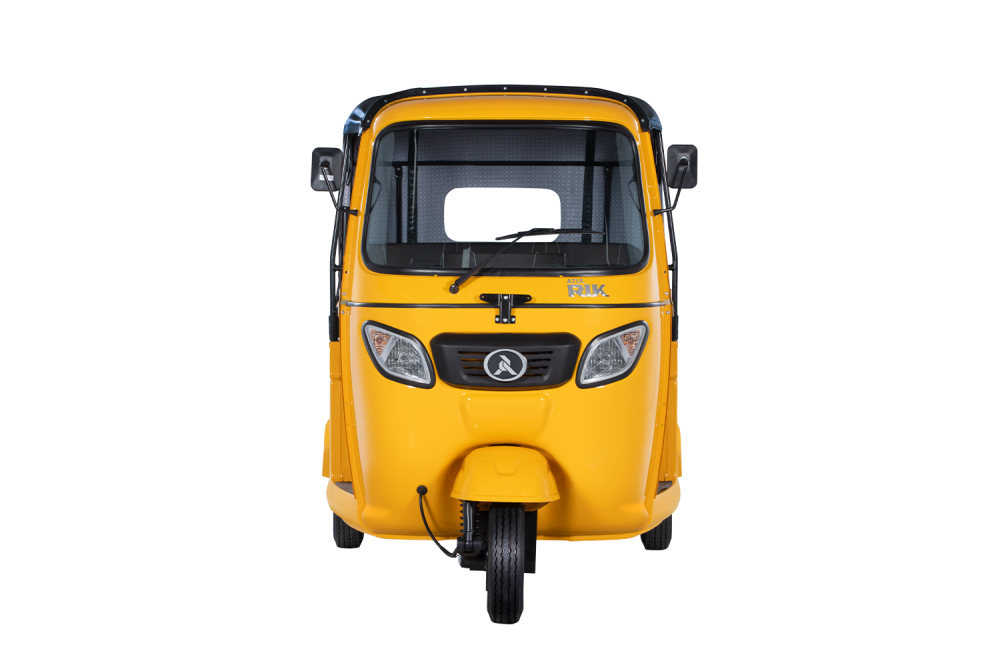

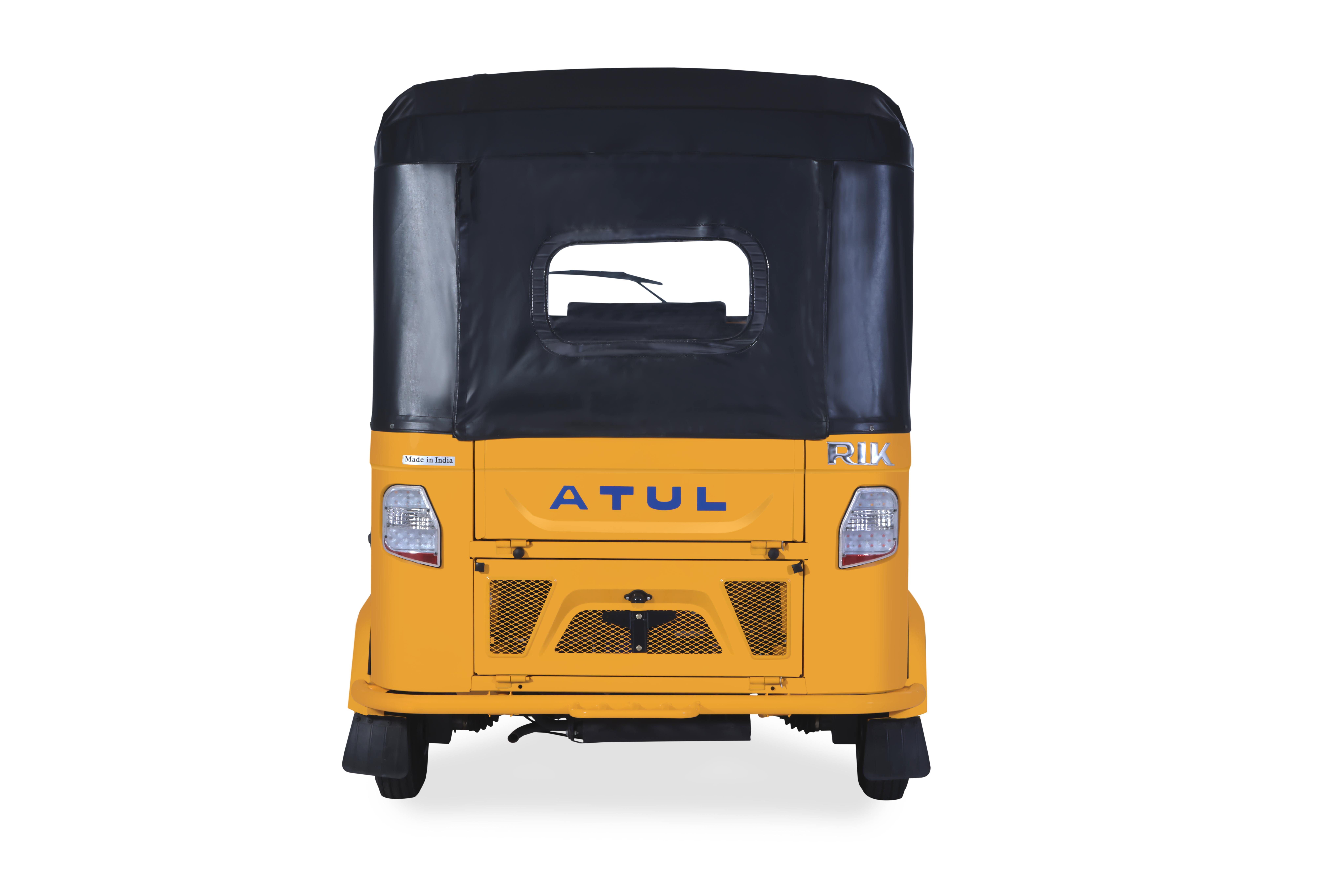

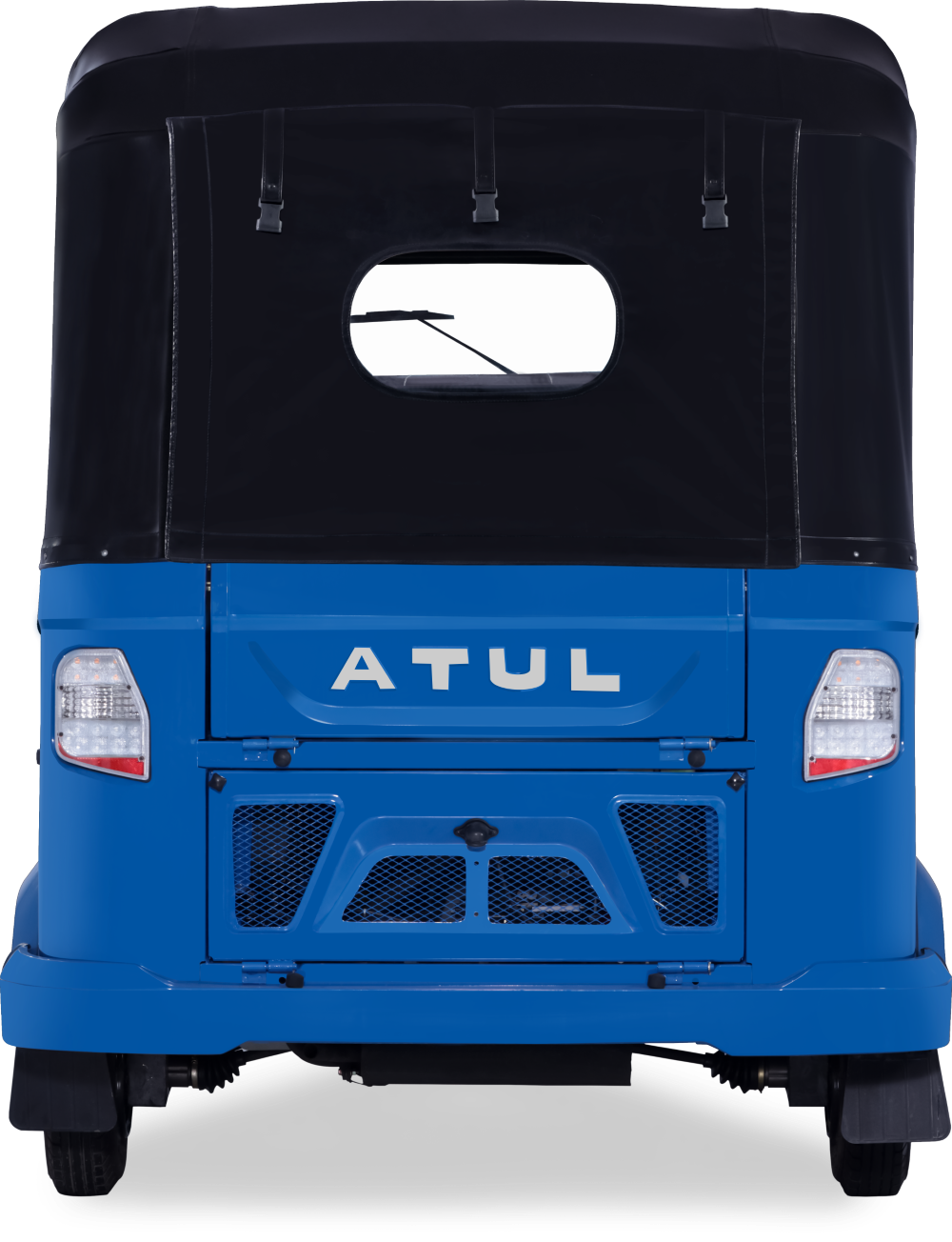

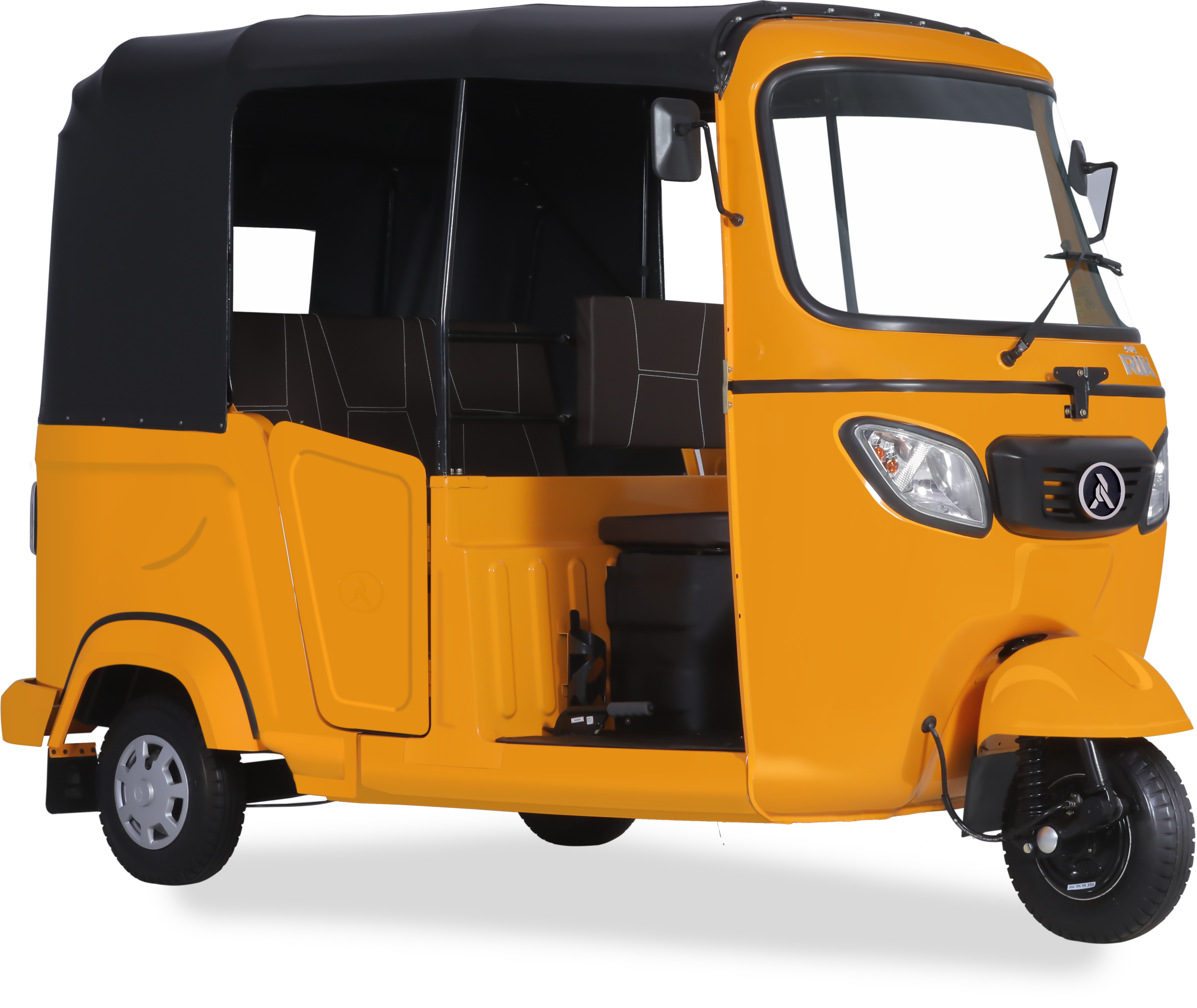

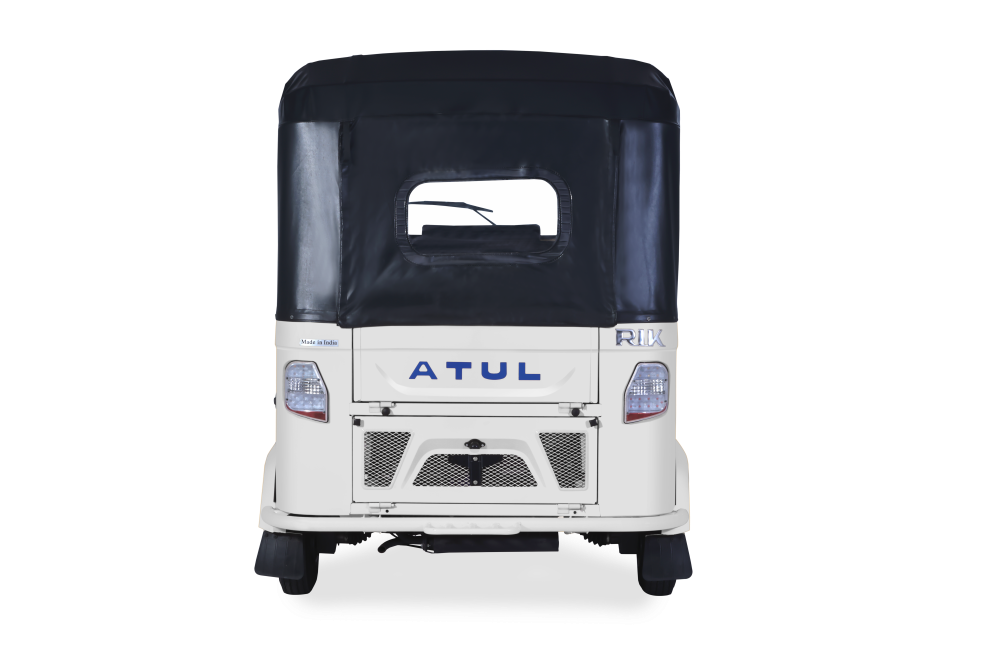

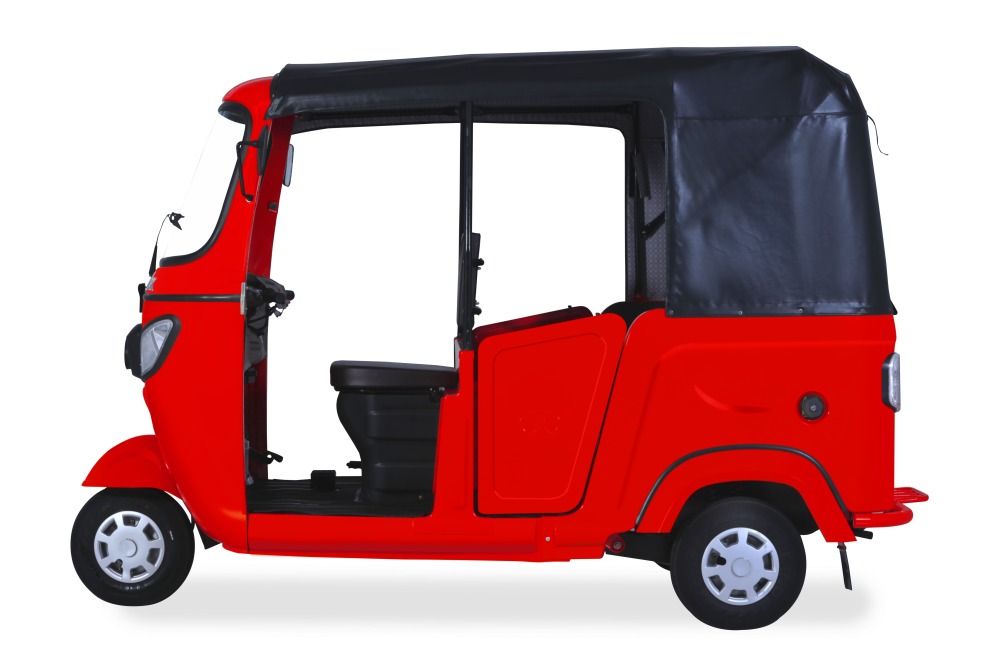

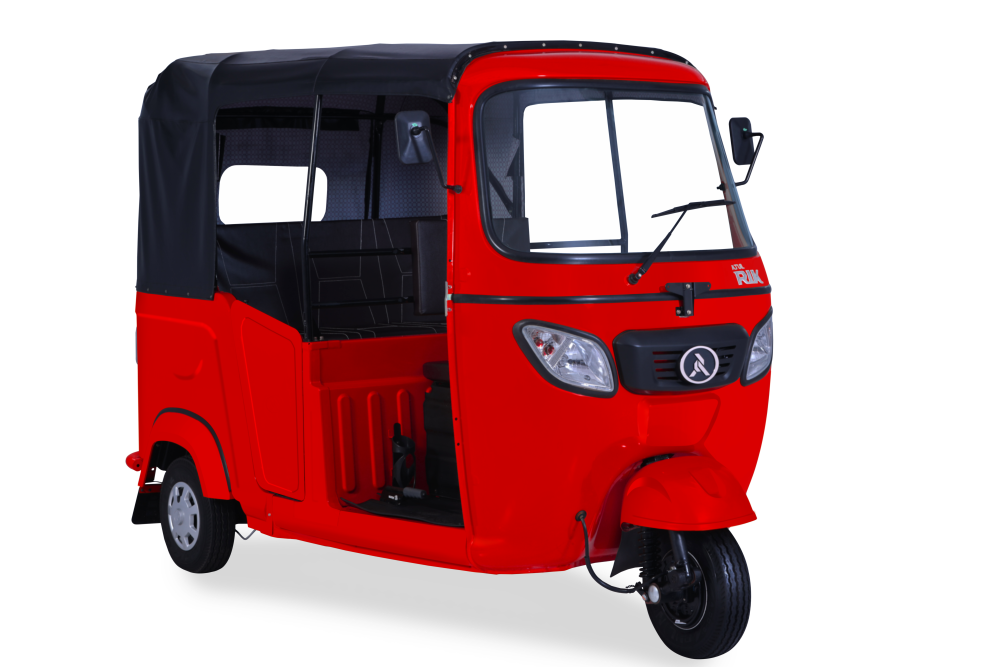

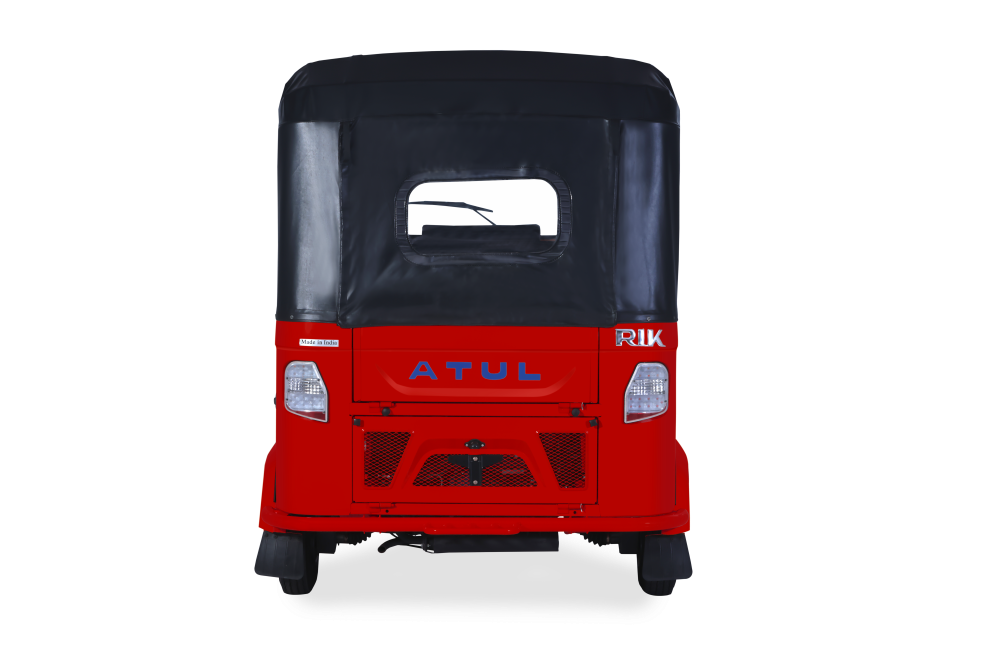

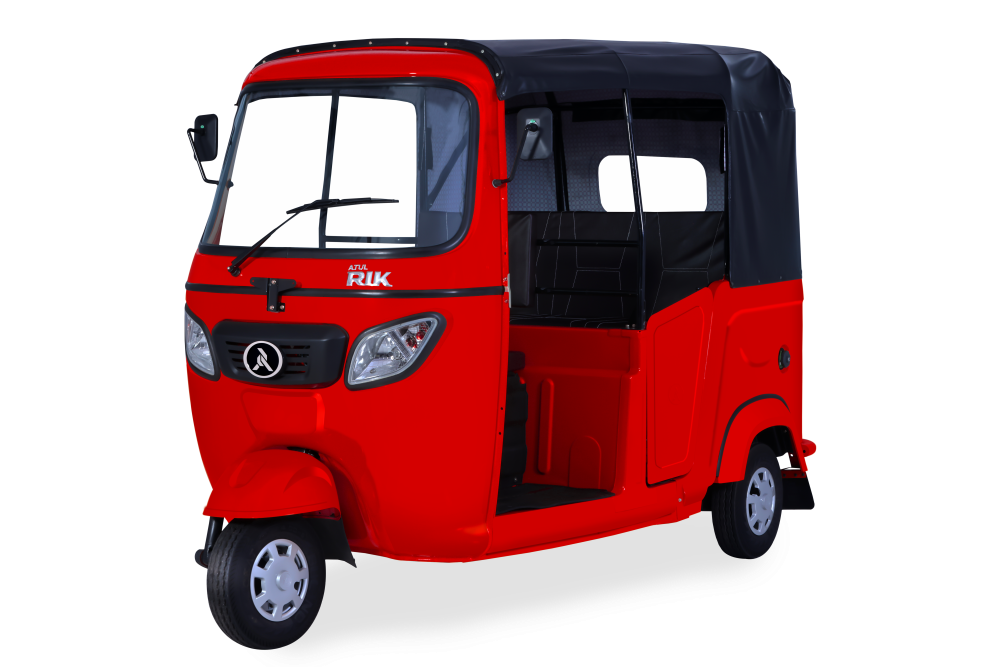

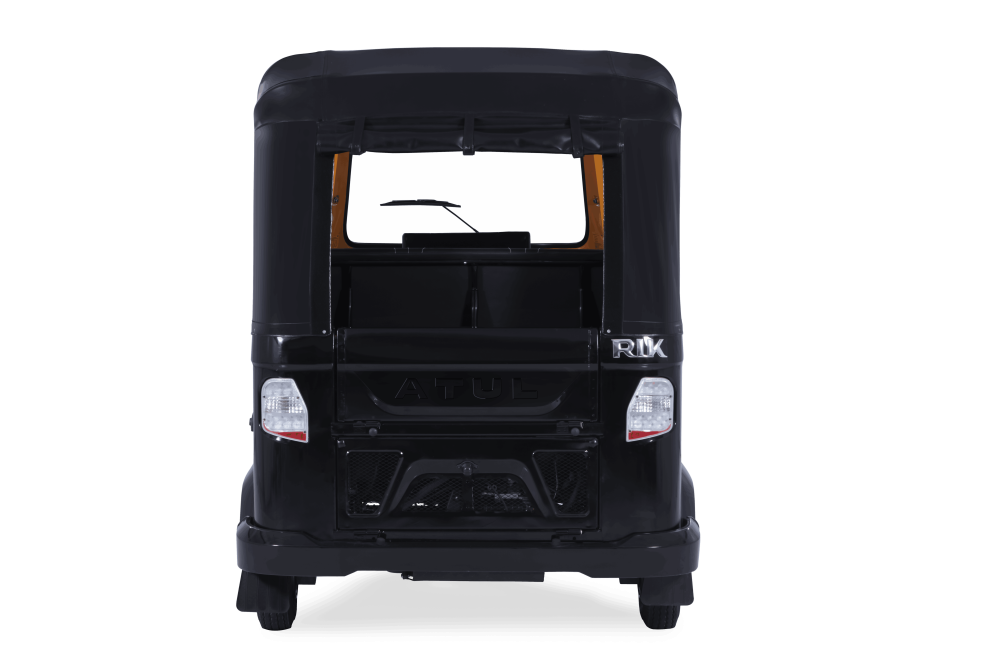

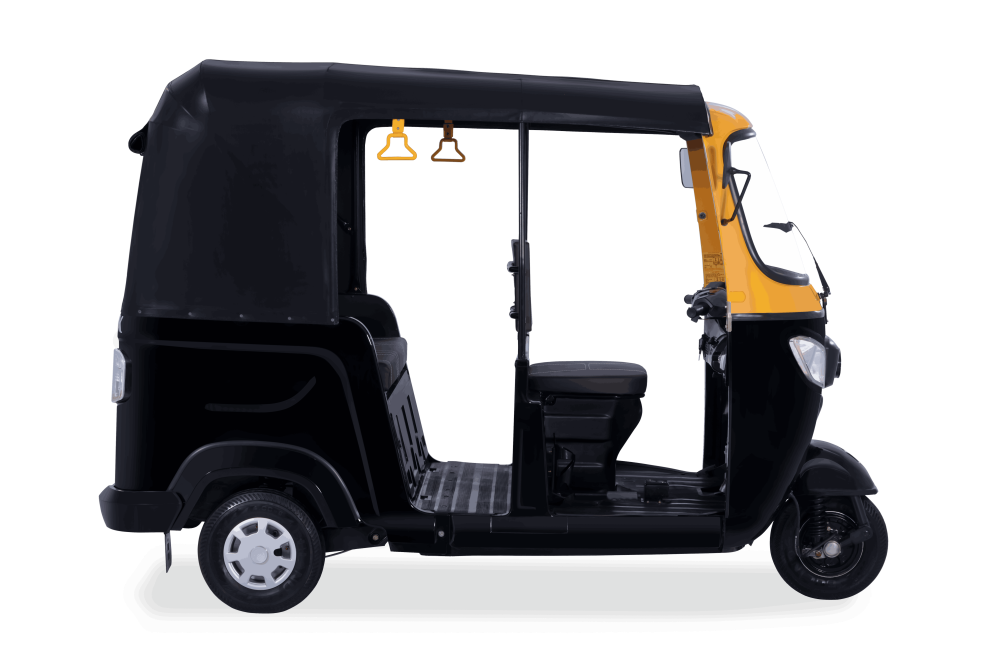

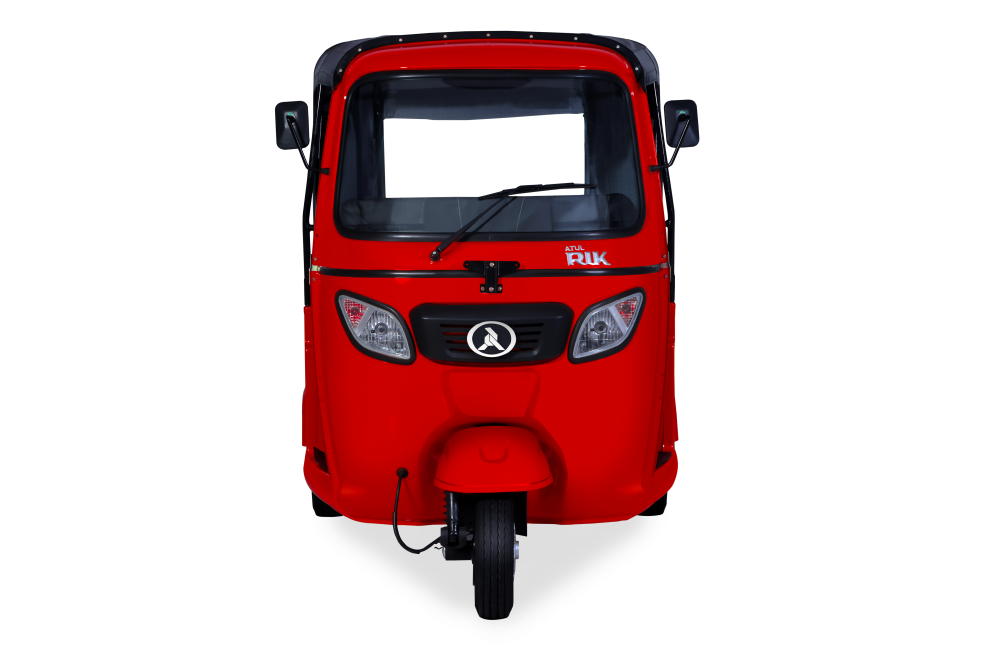

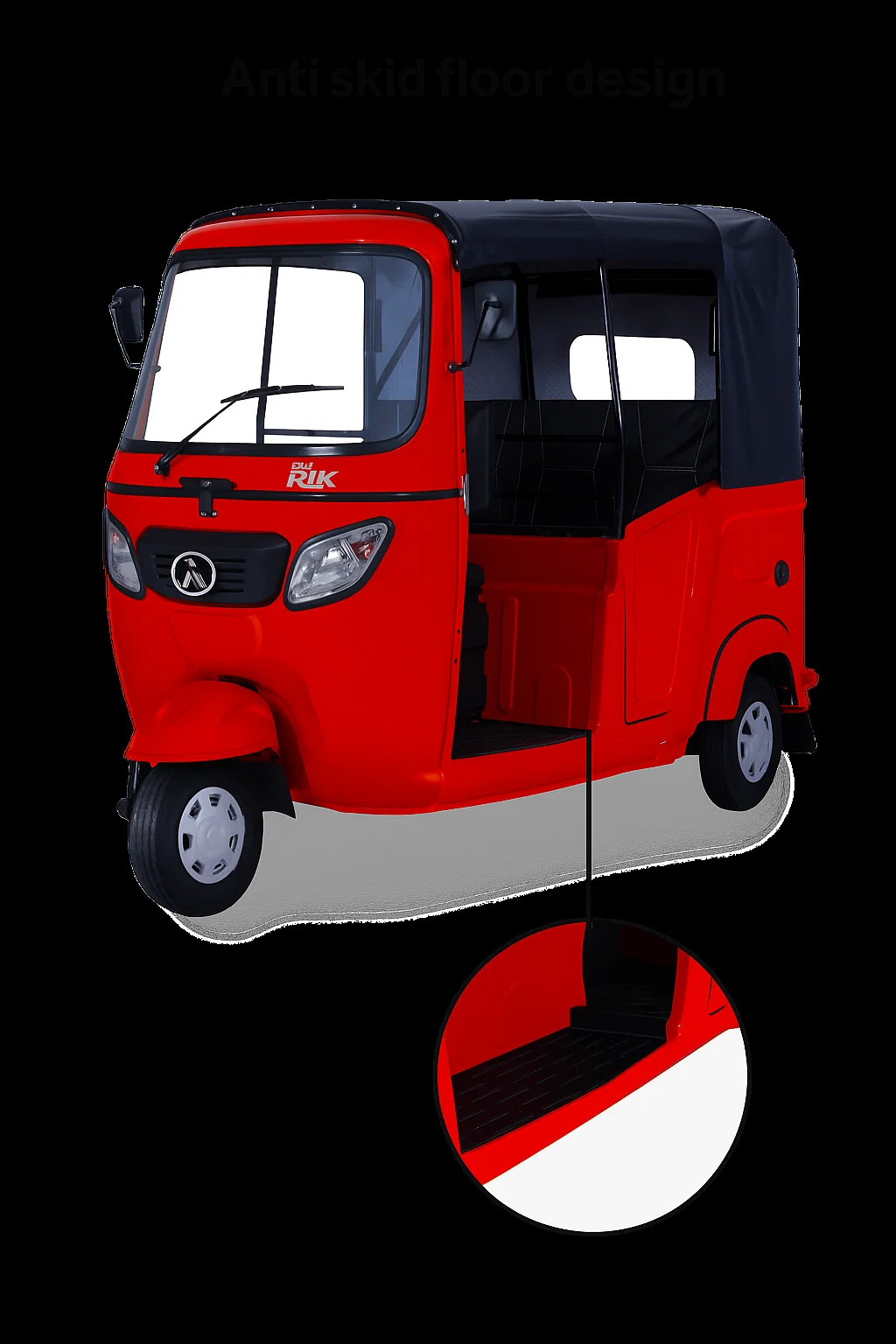

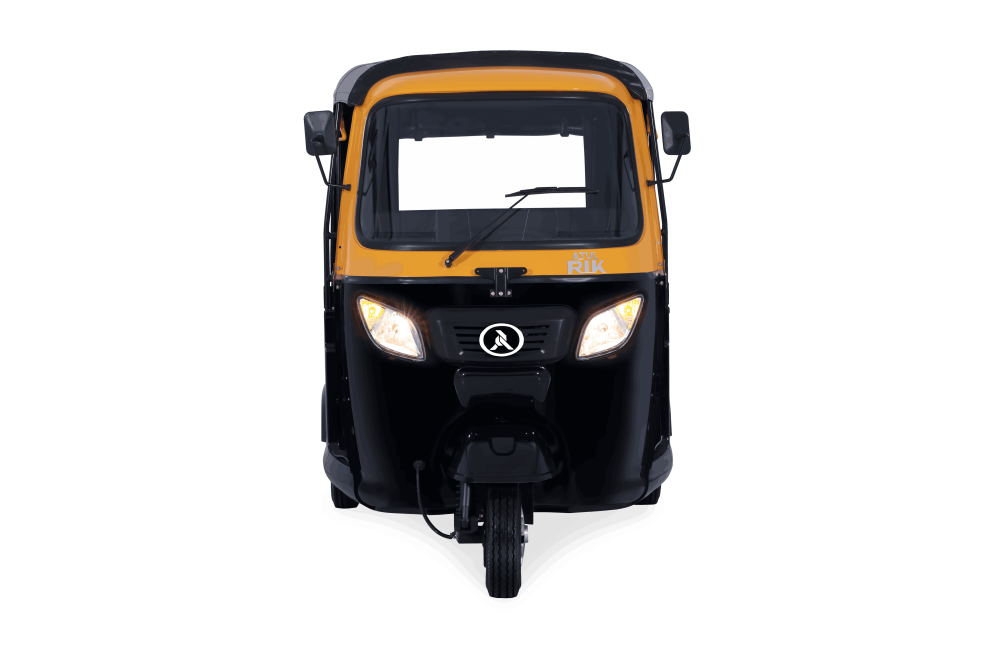

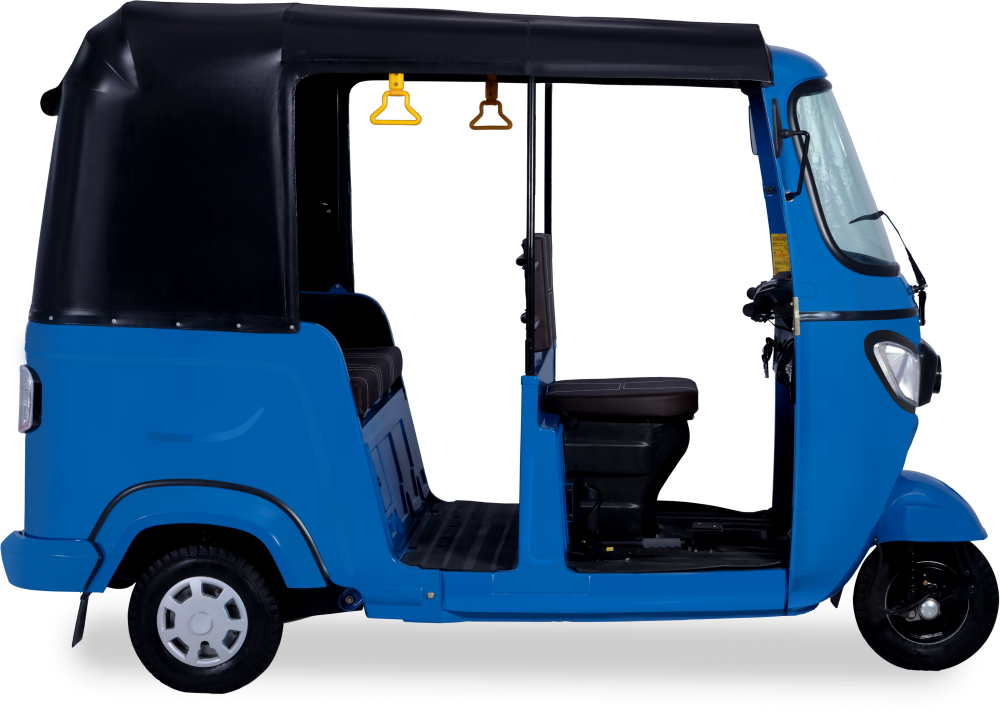

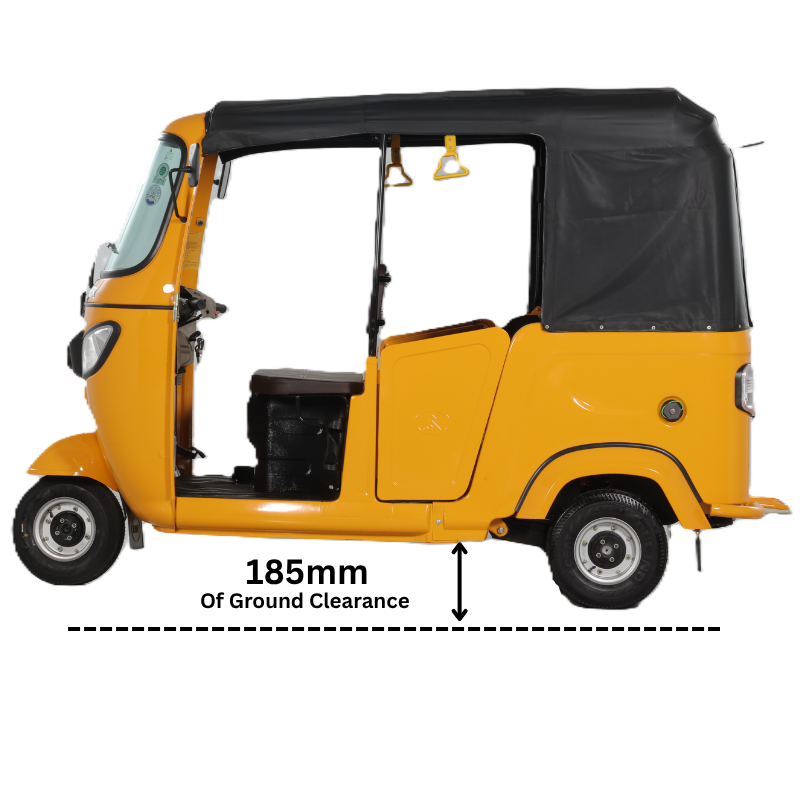

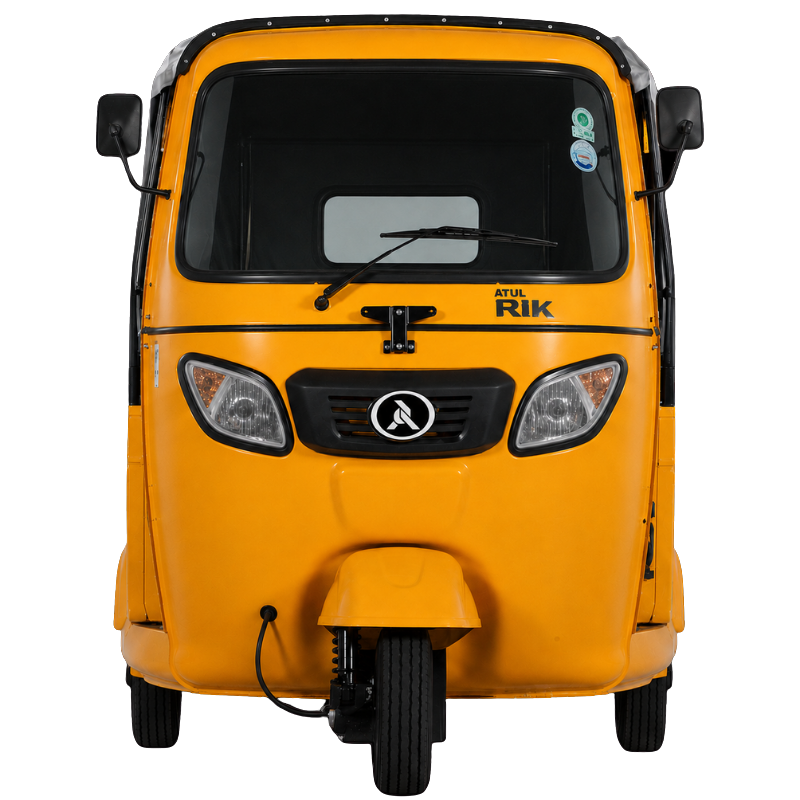

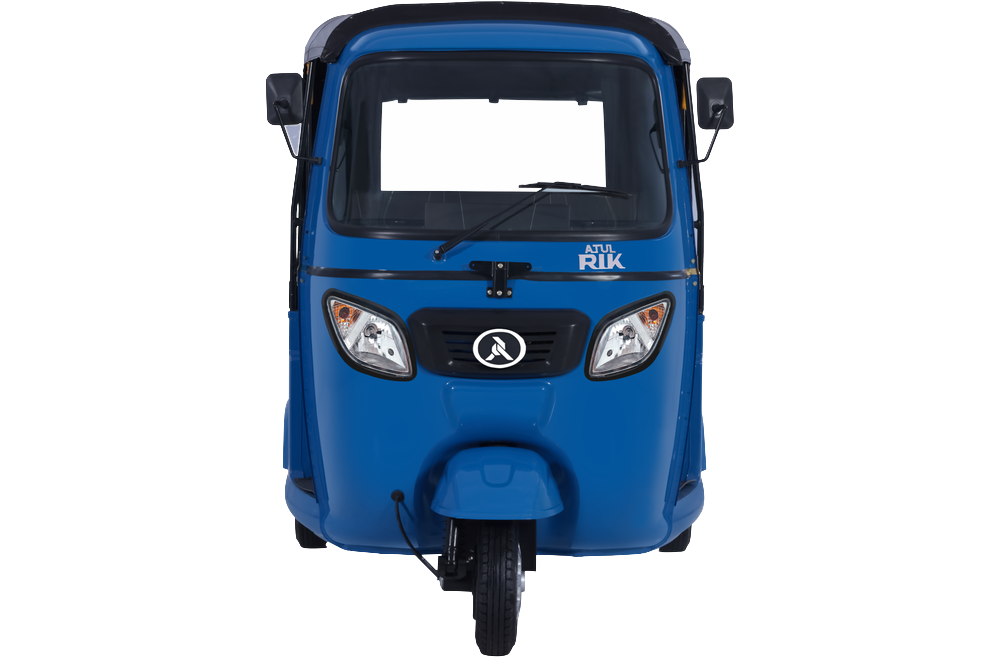

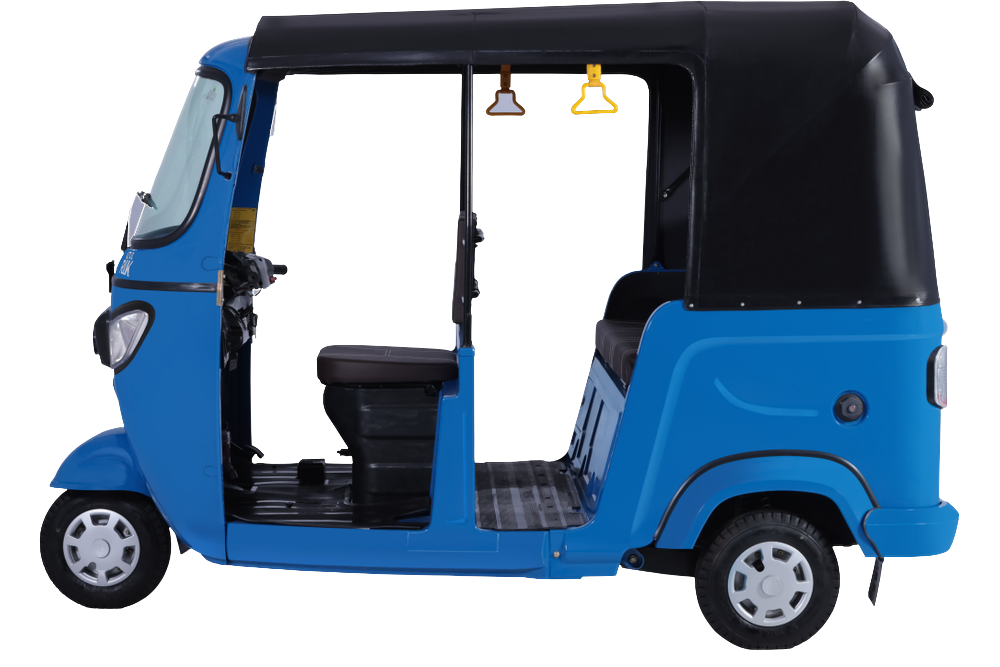

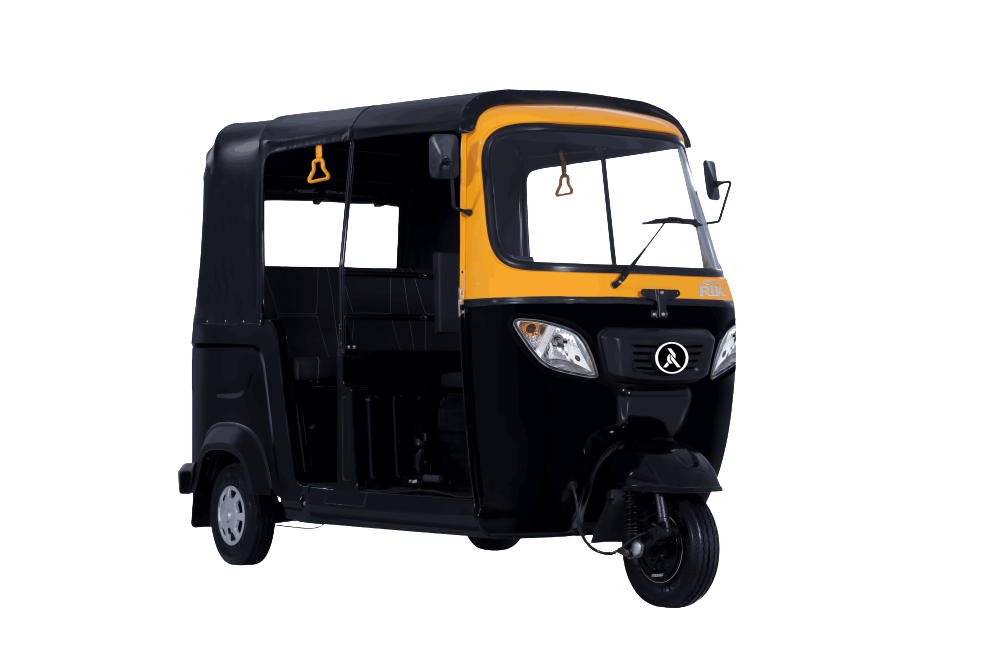

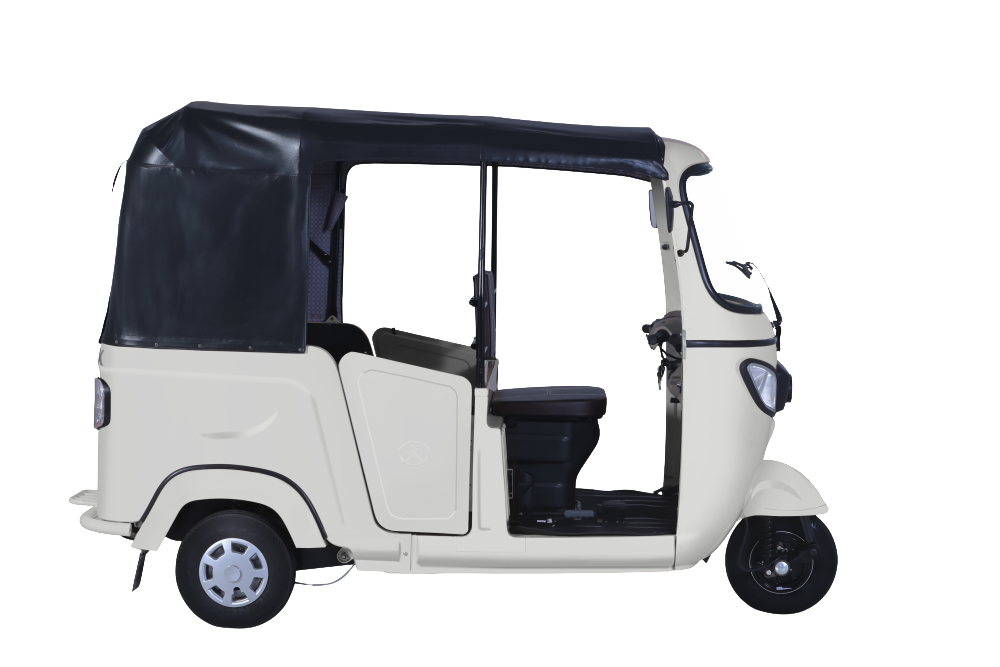

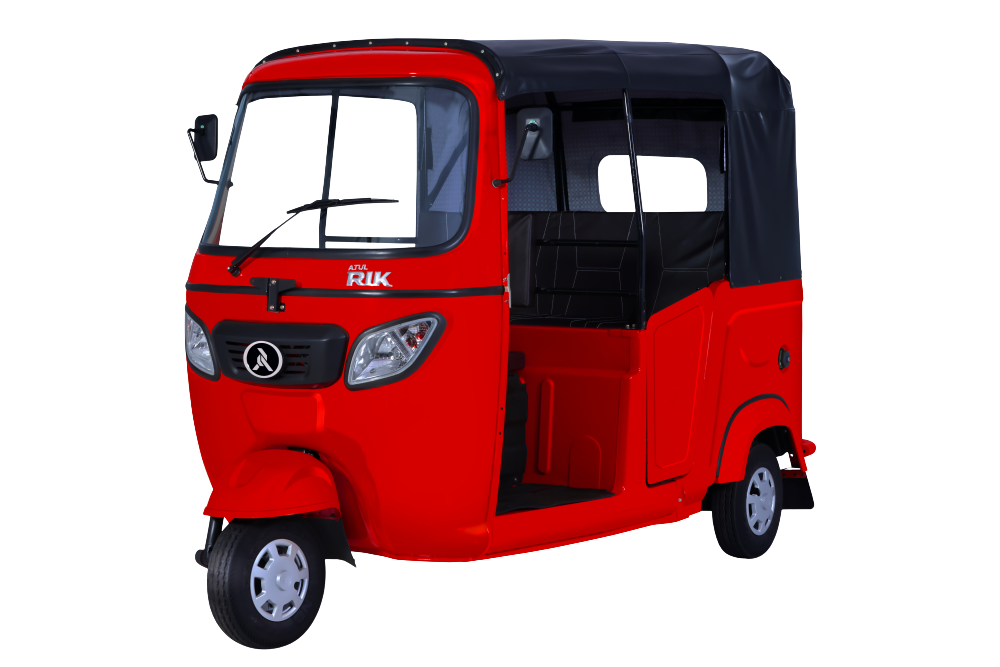

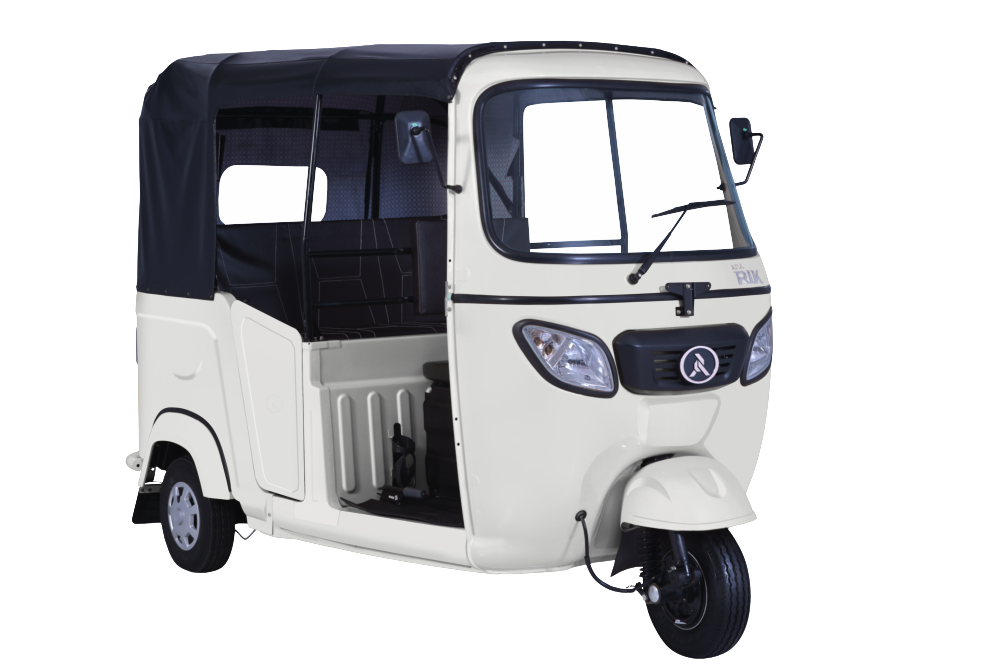

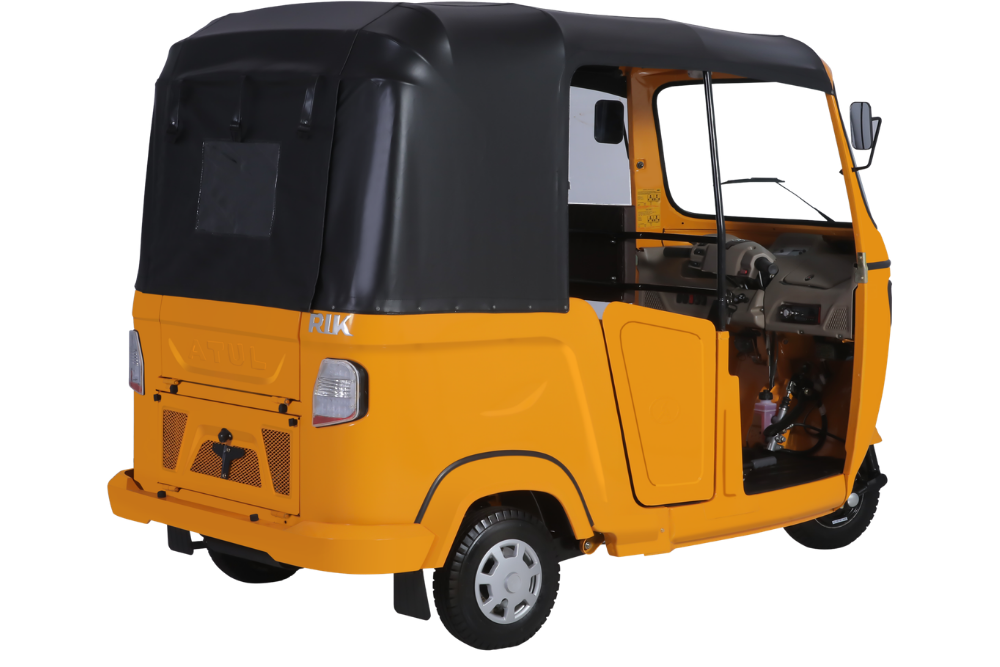

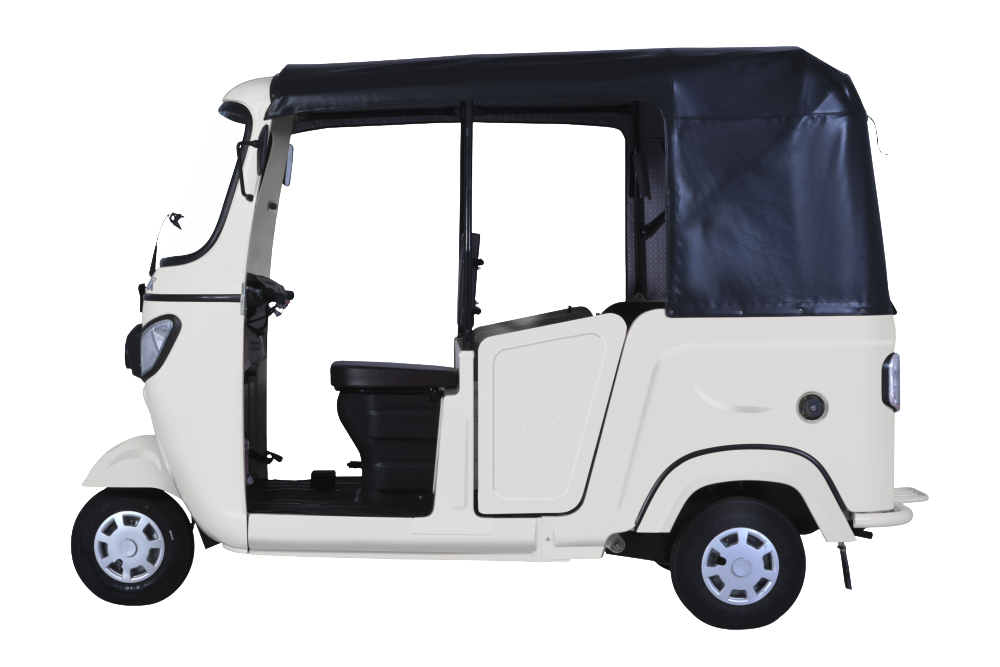

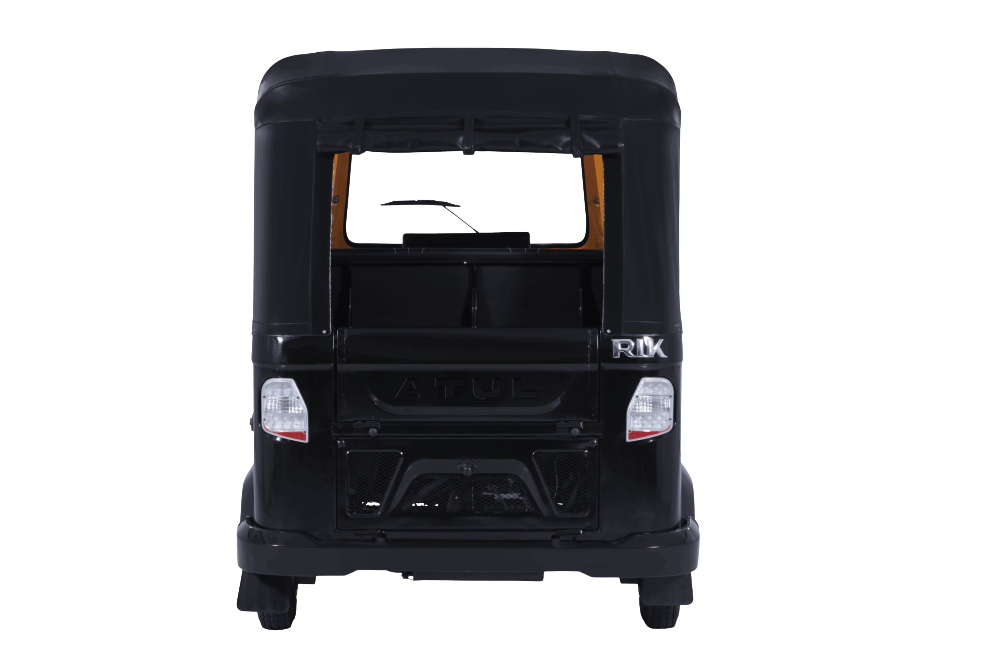

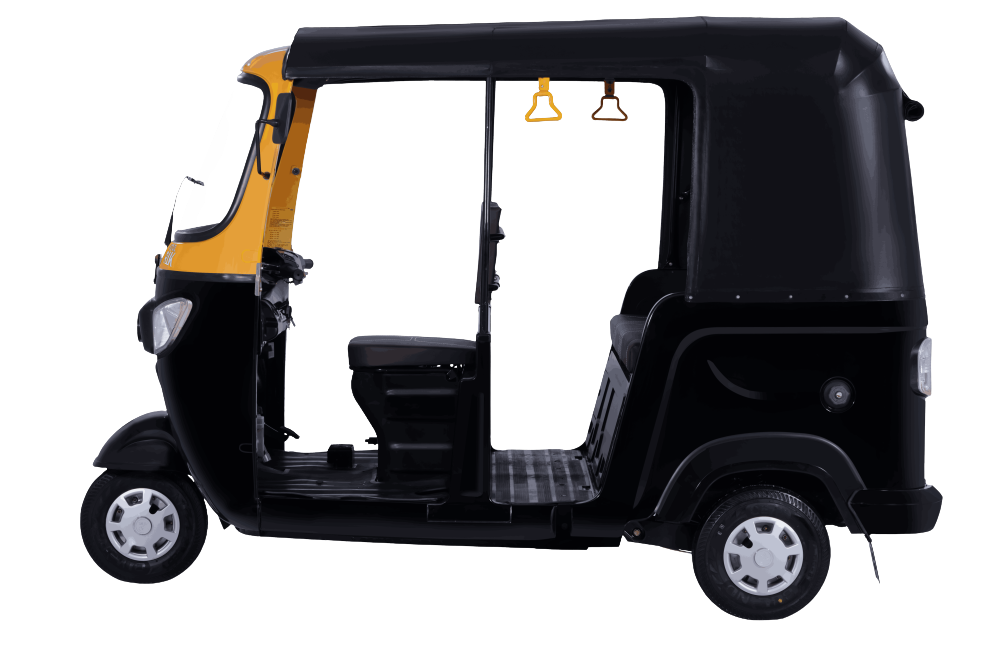

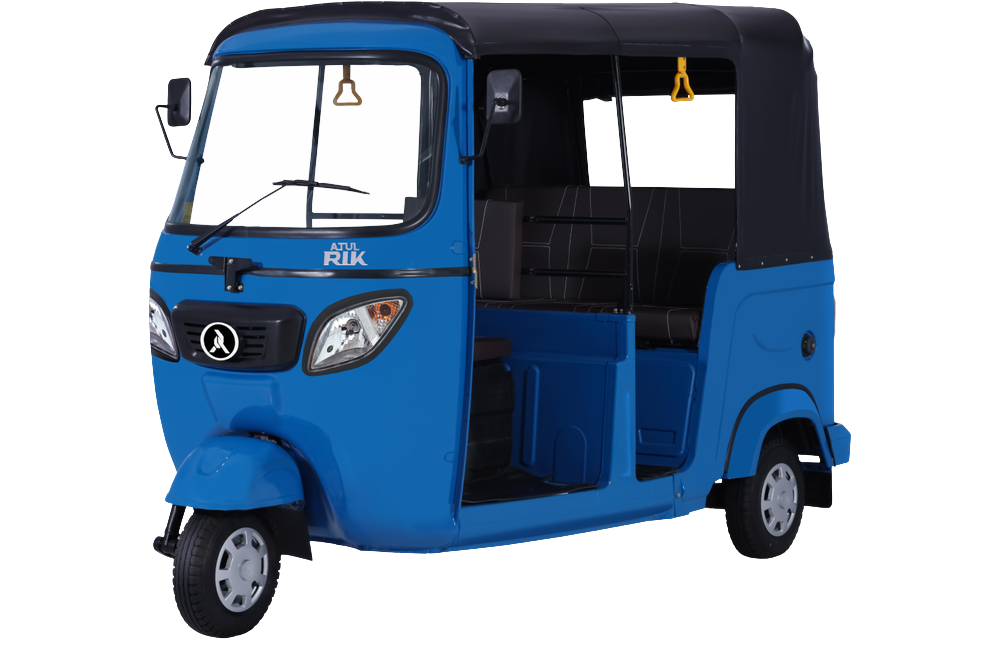

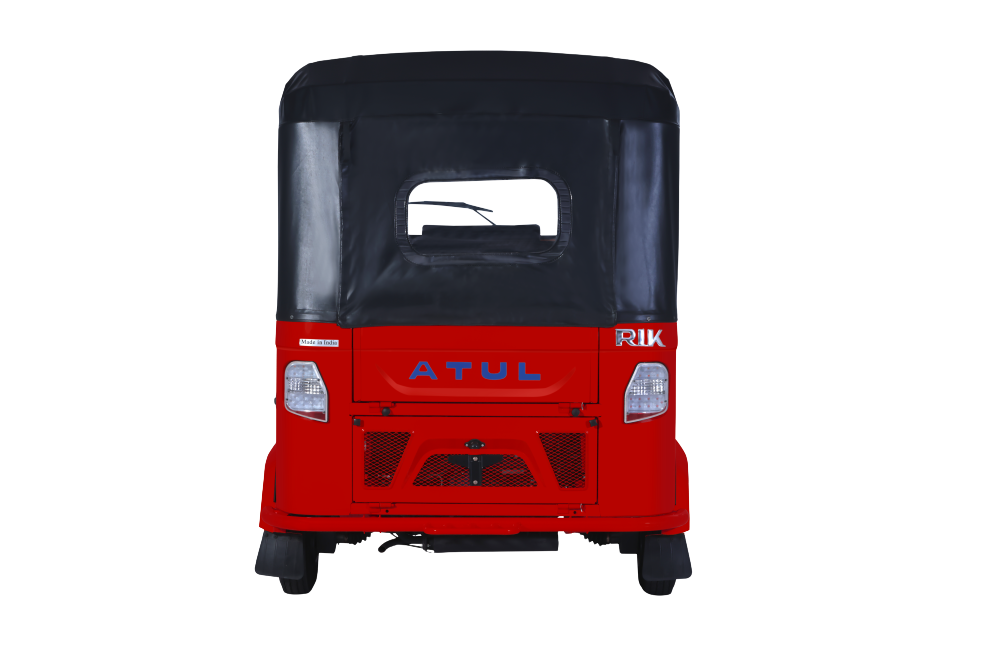

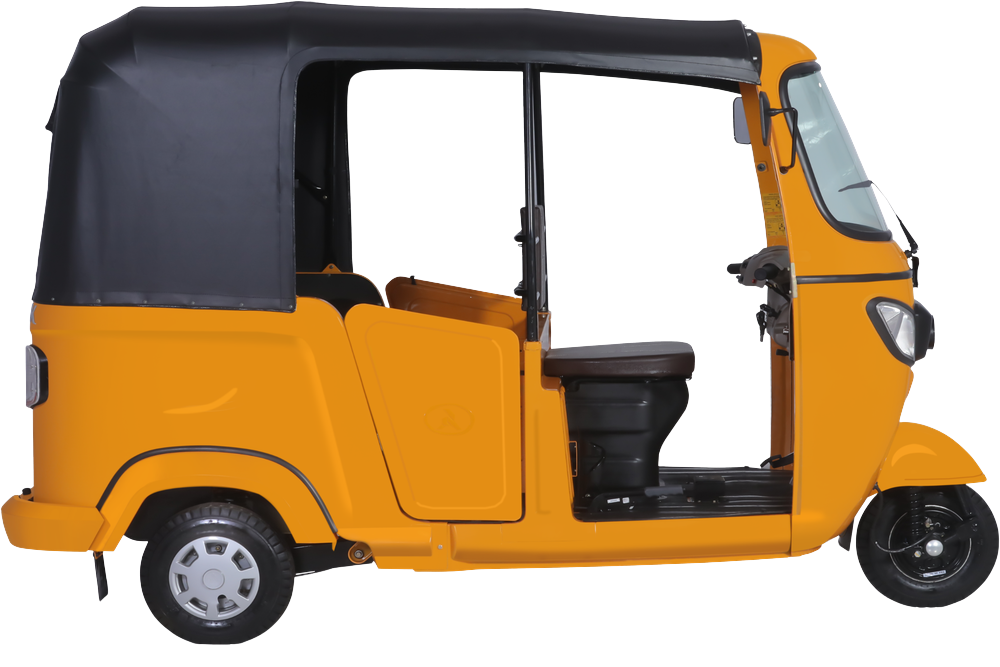

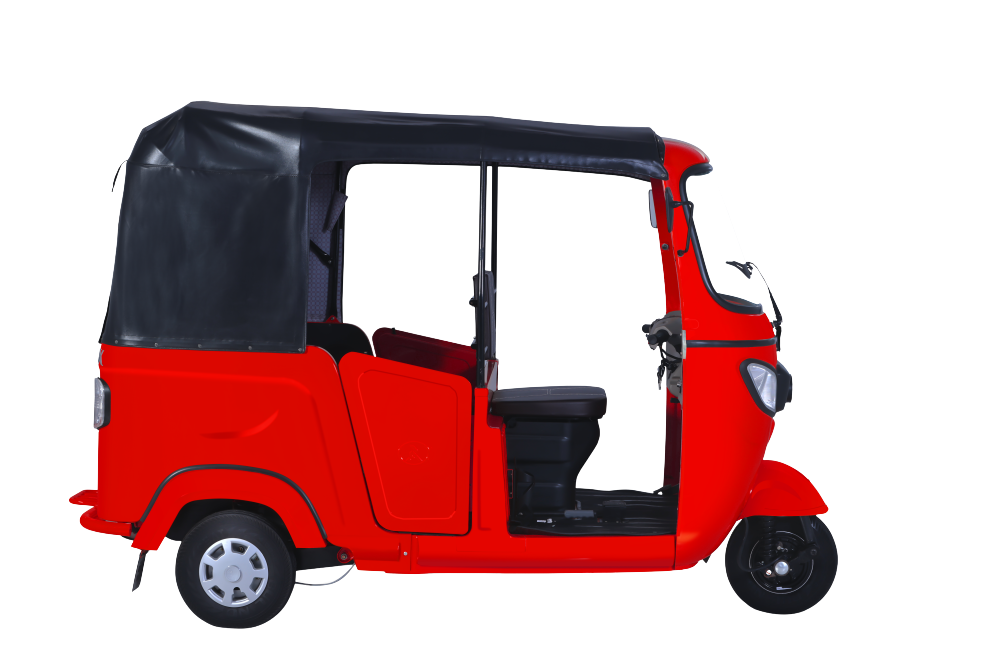

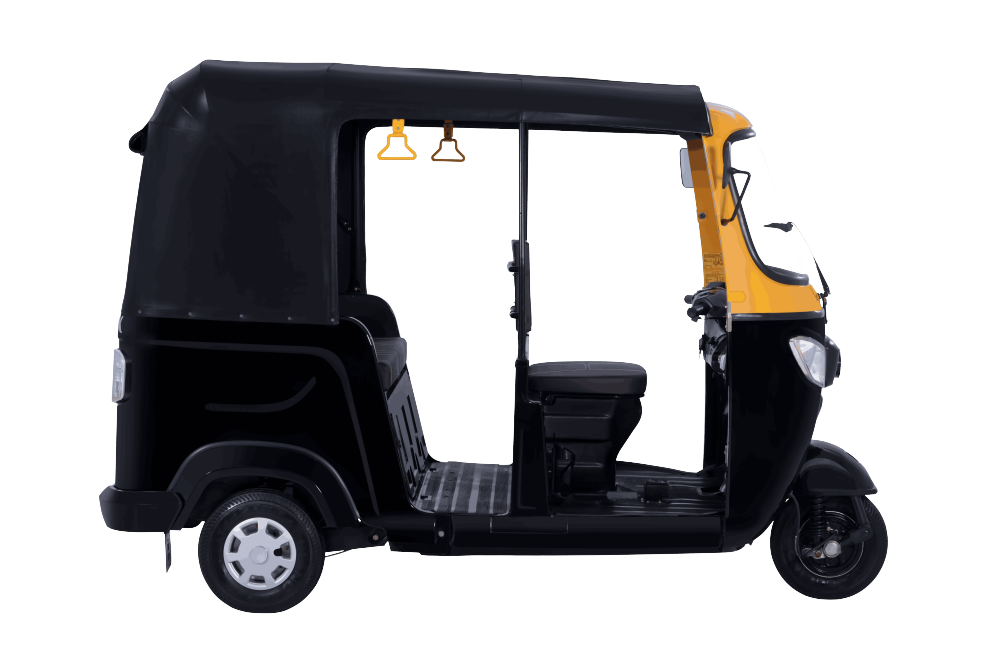

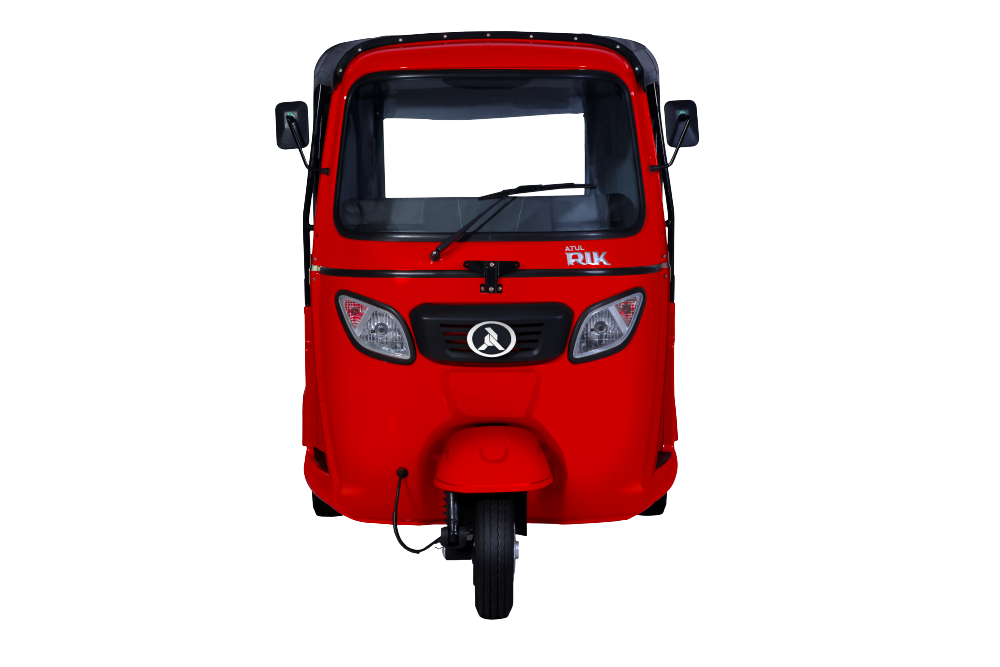

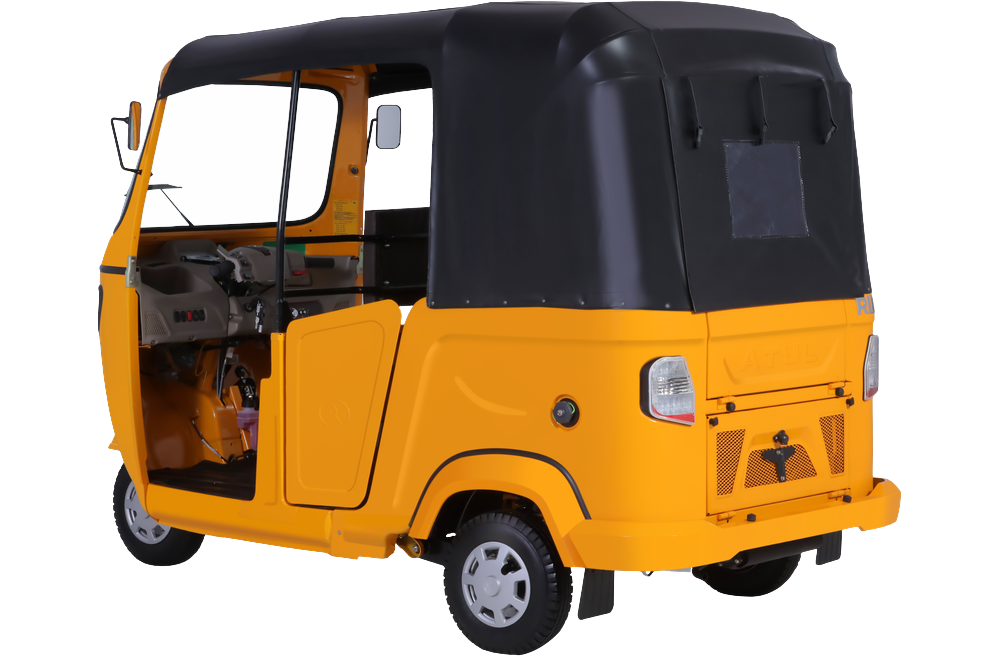

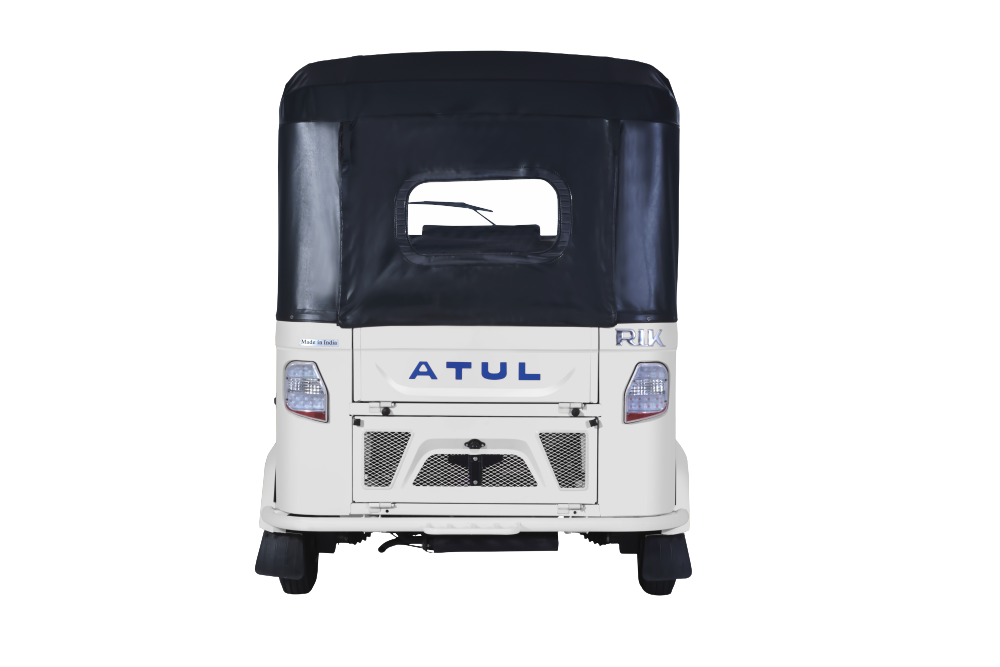

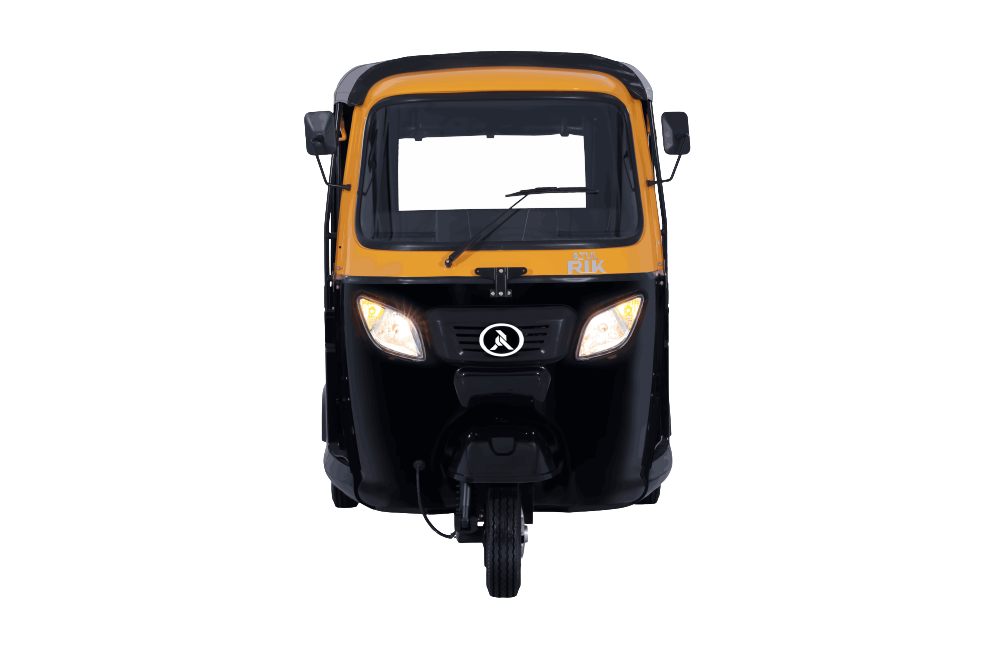

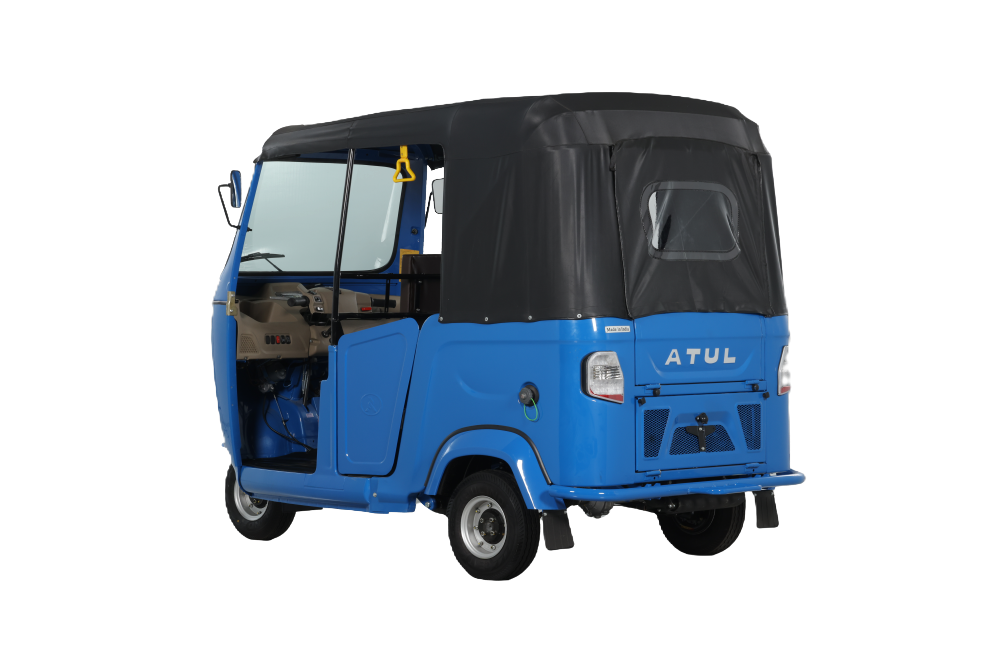

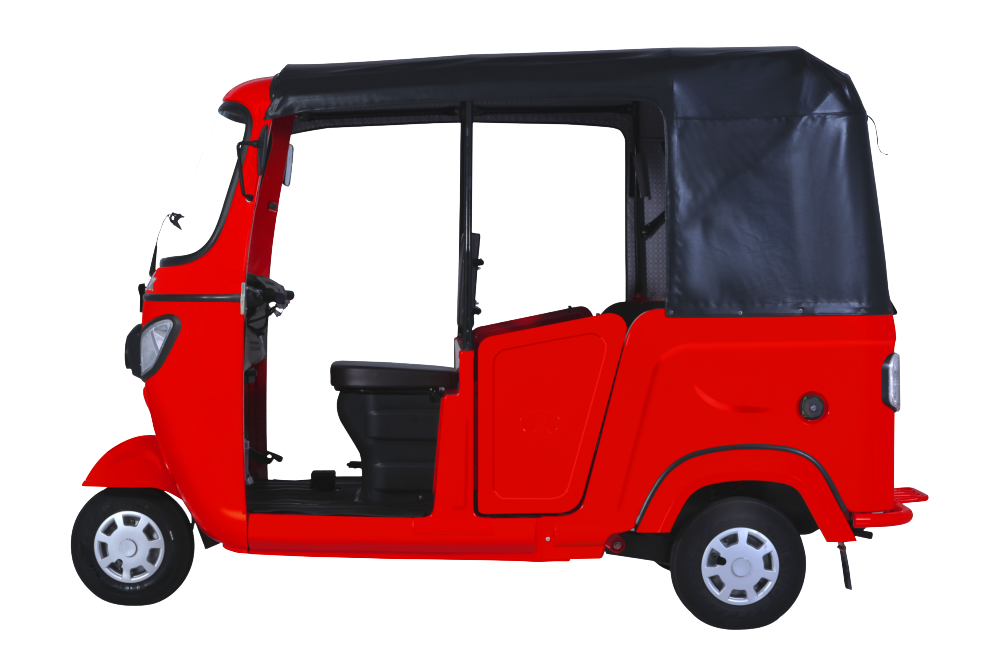

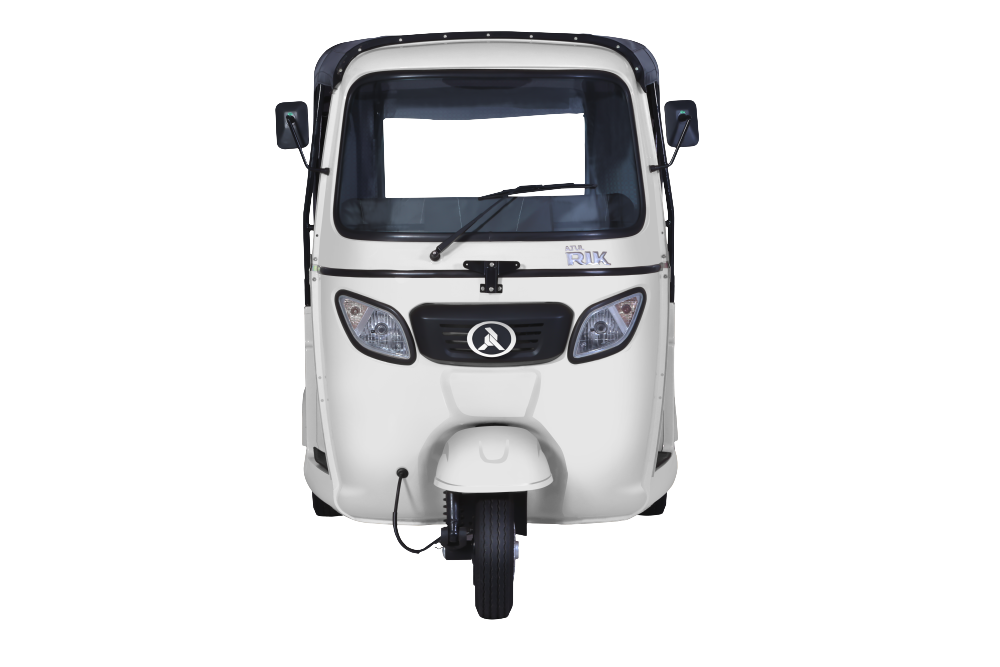

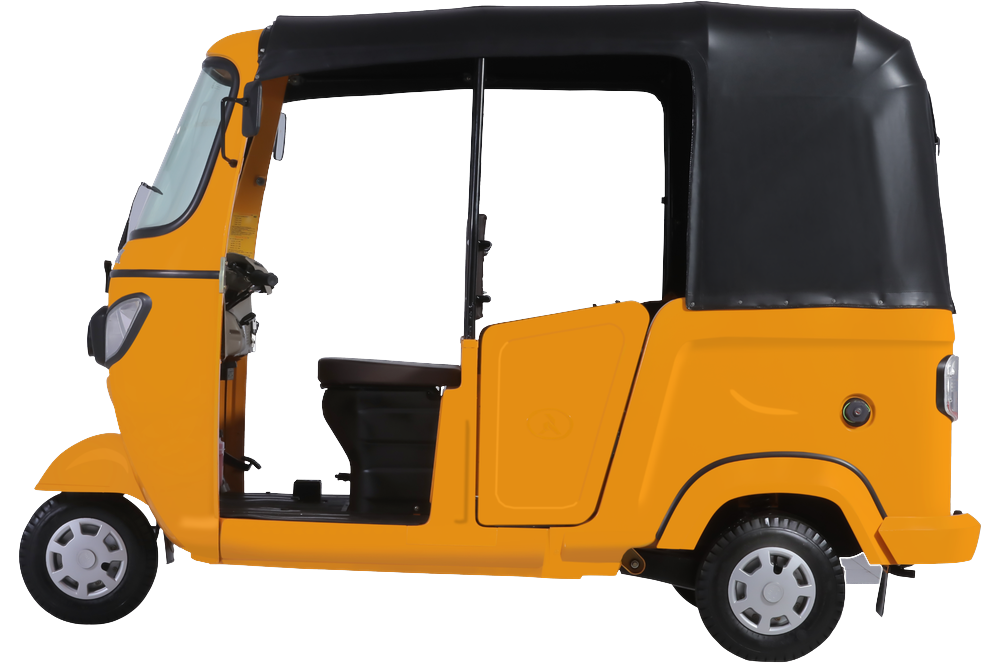

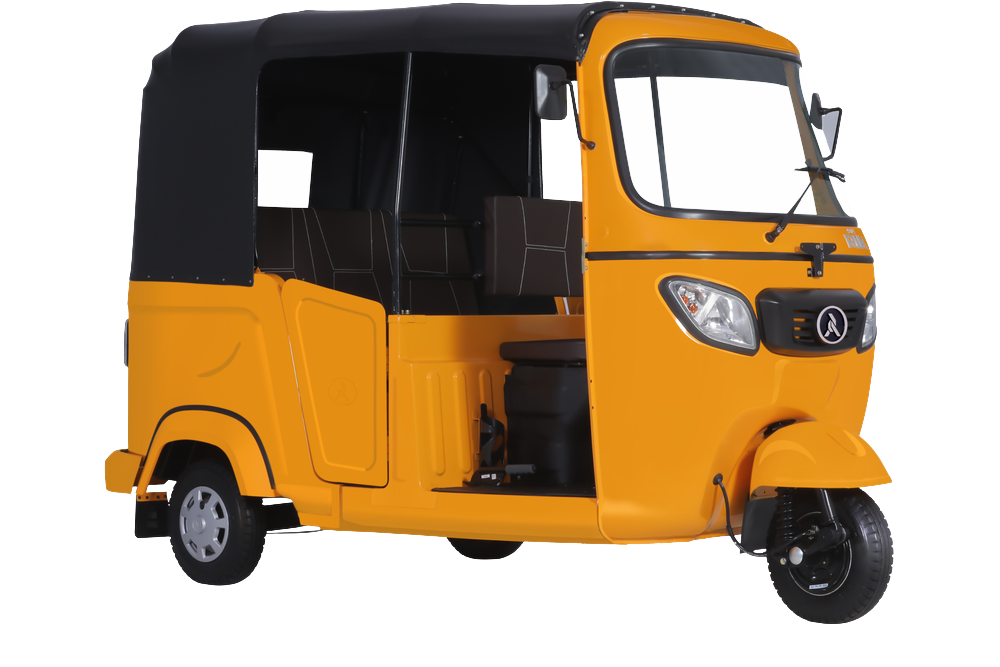

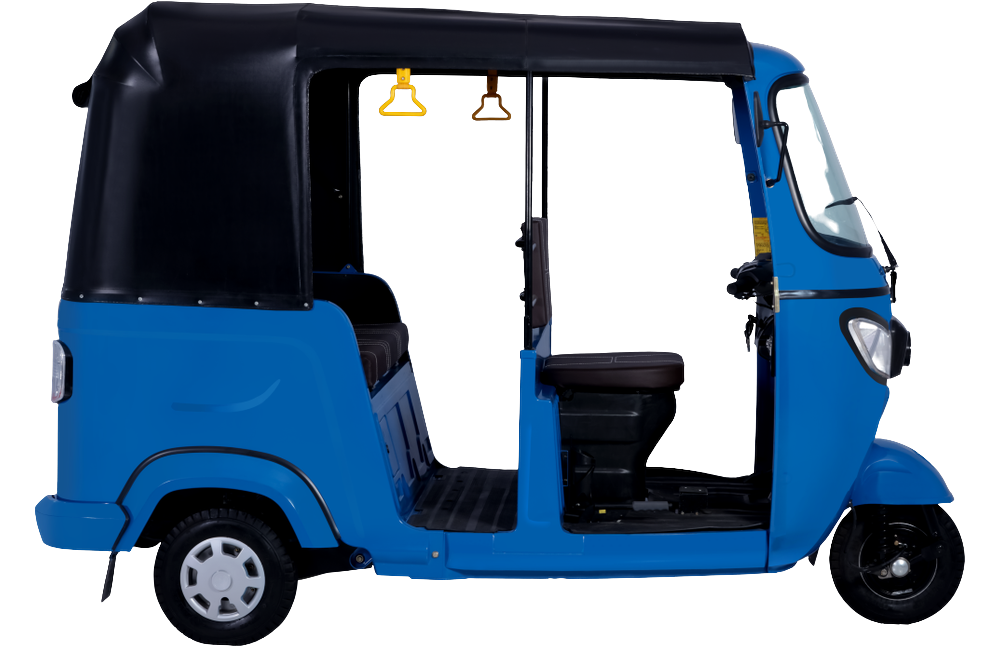

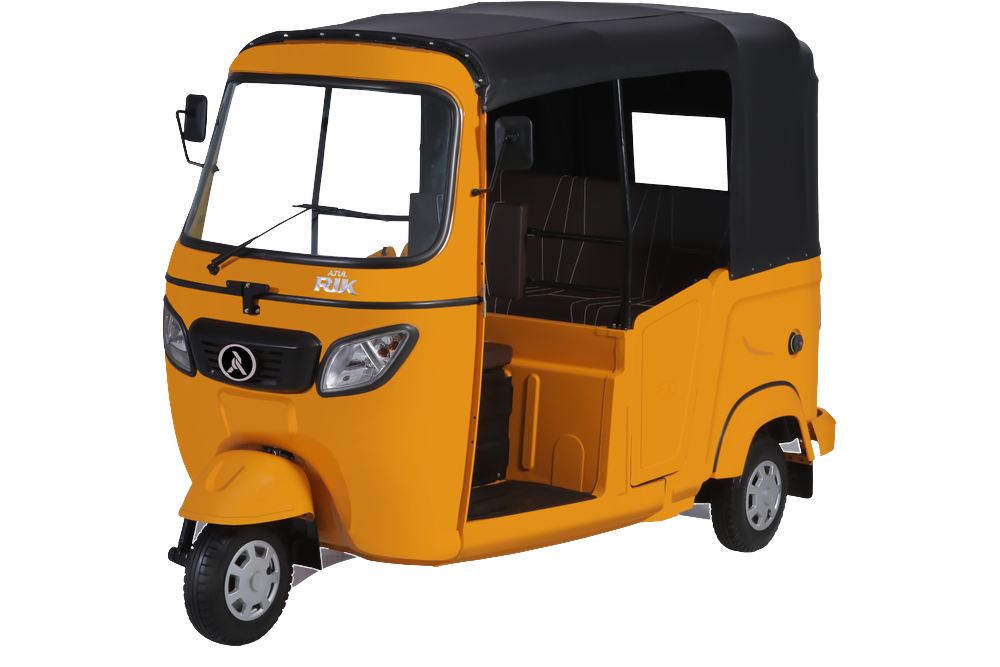

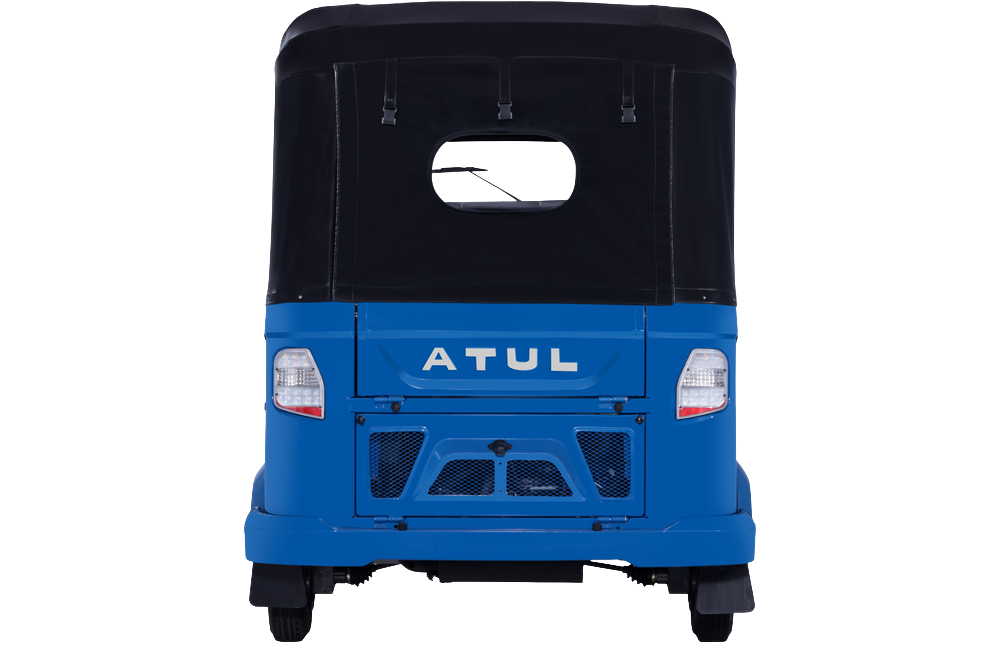

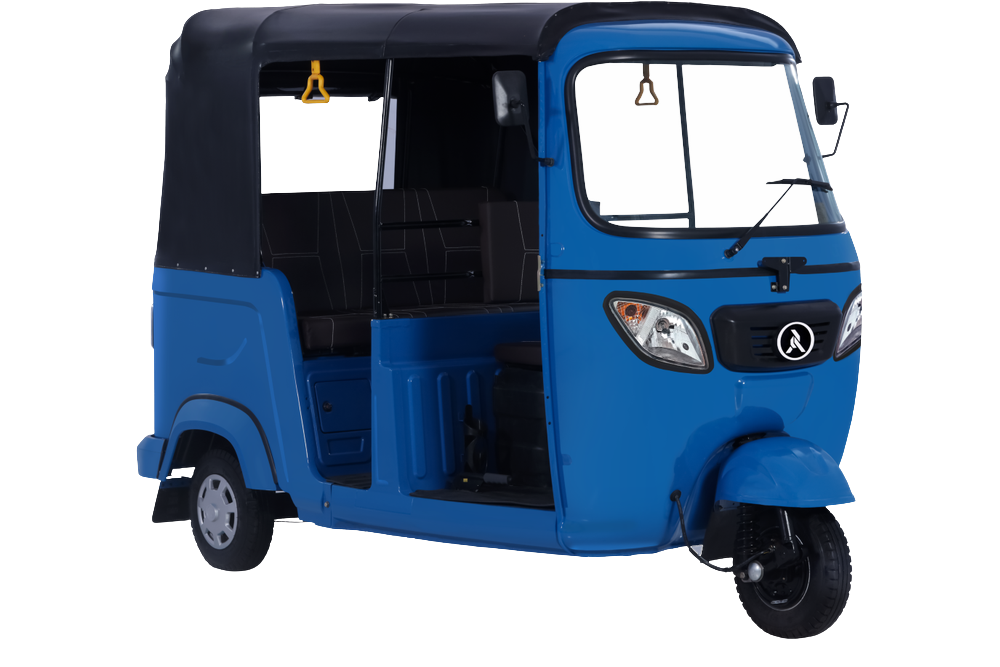

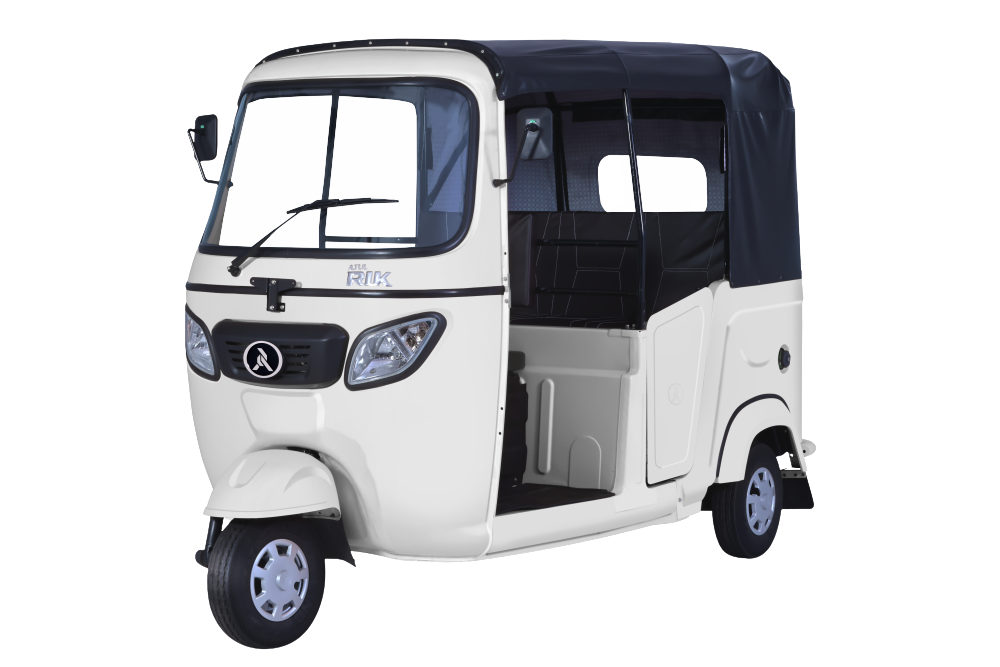

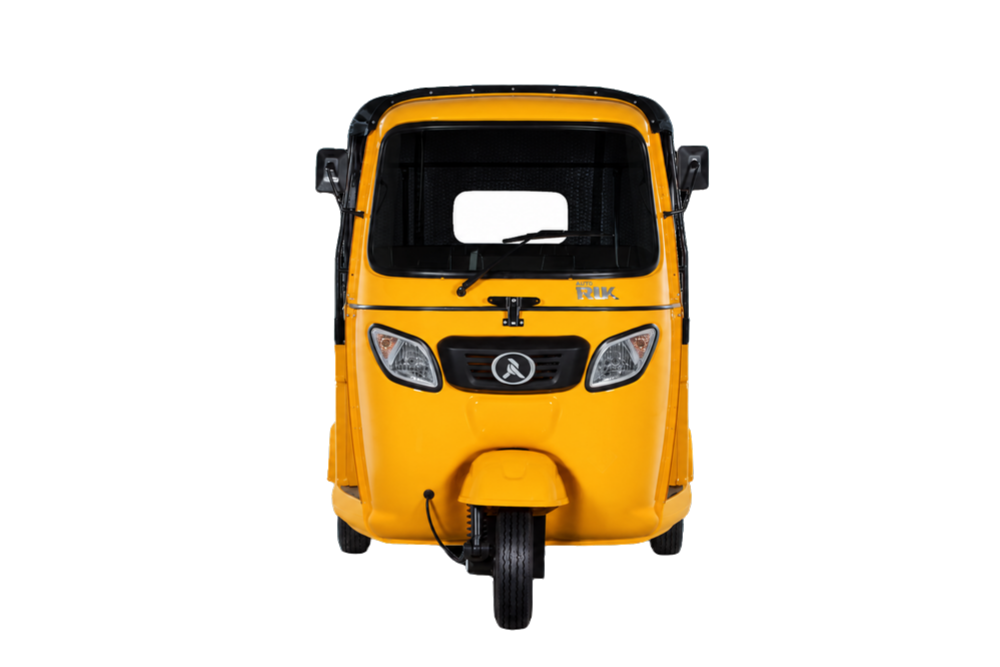

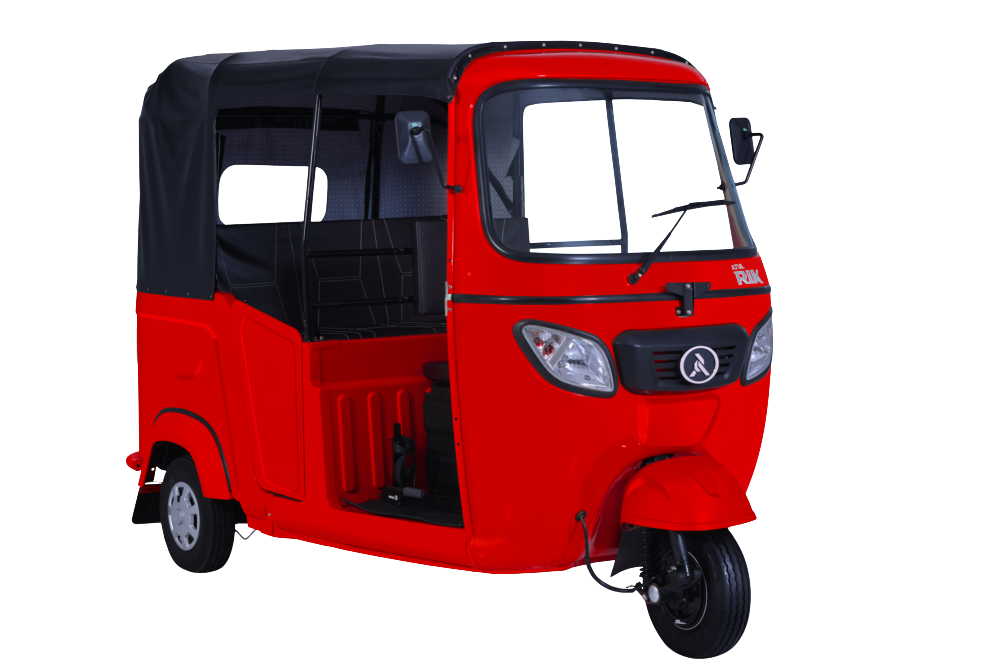

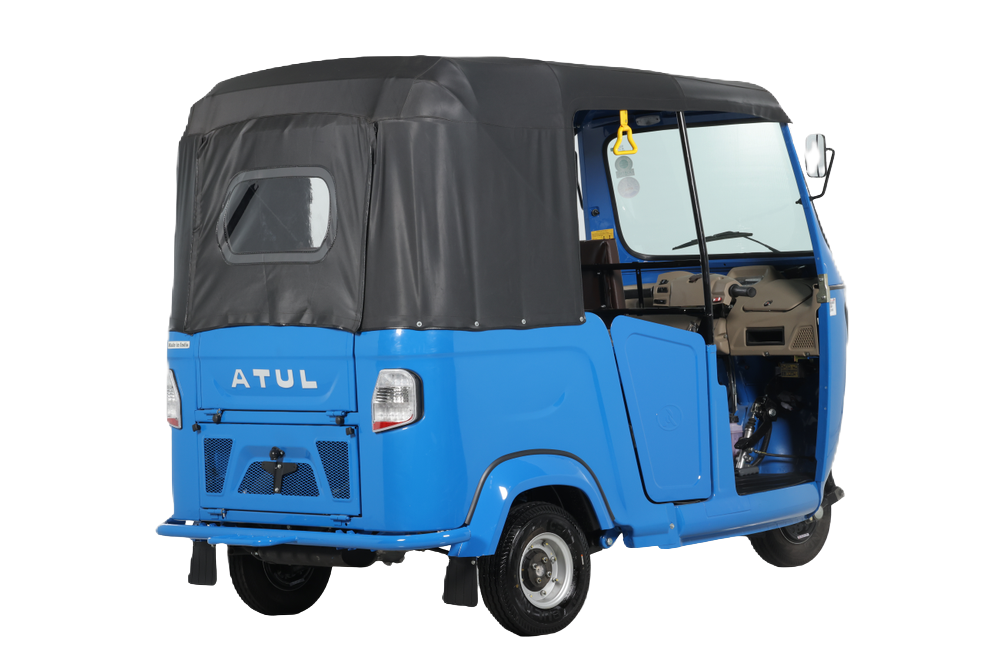

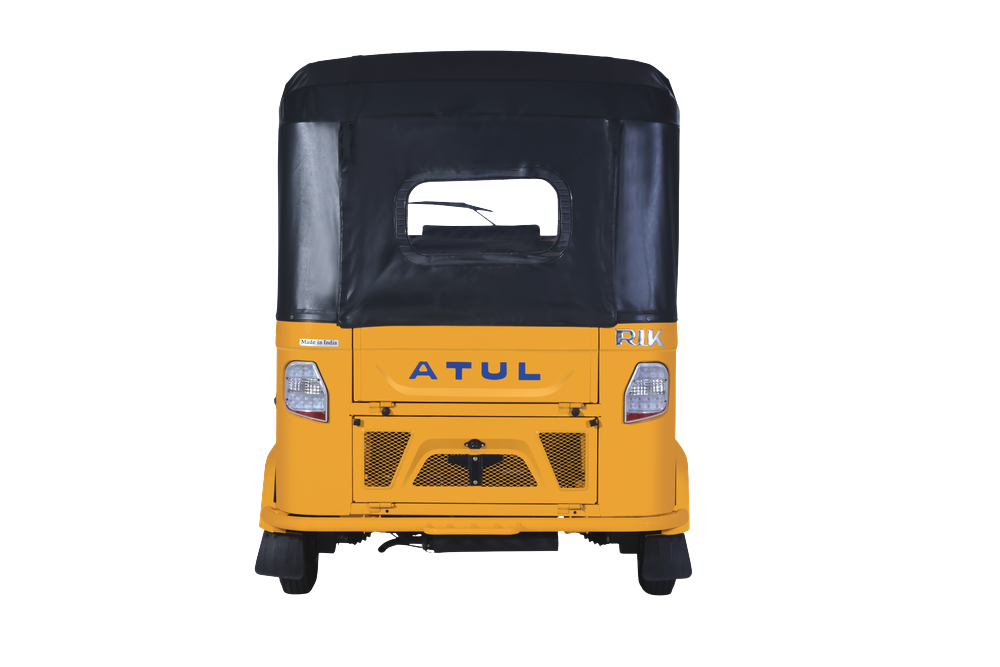

ATUL RIK - Passenger CNG
Fuel Type
CNG
Fuel Tank Capacity
4.5 kg
Engine
Bi-Fuel ,Single Cylinder Four Stroke Spark Ignition - Air Cooled.
Displacement
198.6 cc
Gross Weight
748 kg
Kerb Weight
425 kg
Know More
Download Brochure
ATUL RIK - Passenger CNG specification
Performance
Steering & Suspension
Brakes & Tyre
Electrical system
Dimensions
Body & Weights
Performance
| Engine Type | – | Bi-Fuel ,Single Cylinder Four Stroke Spark Ignition - Air Cooled. |
| Displacement | – | 198.6 cc |
| Max. Engine output (kW @ rpm) | – | 7.4 kW @ 6000 rpm |
| Max. Torque (Nm @ rpm) | – | 13.8 Nm @ 3250 rpm |
| Clutch Type | – | Multi Plate wet type |
| Gear Box | – | Constant mesh |
| No. of gears | – | 4 – Forward & 1- Reverse |

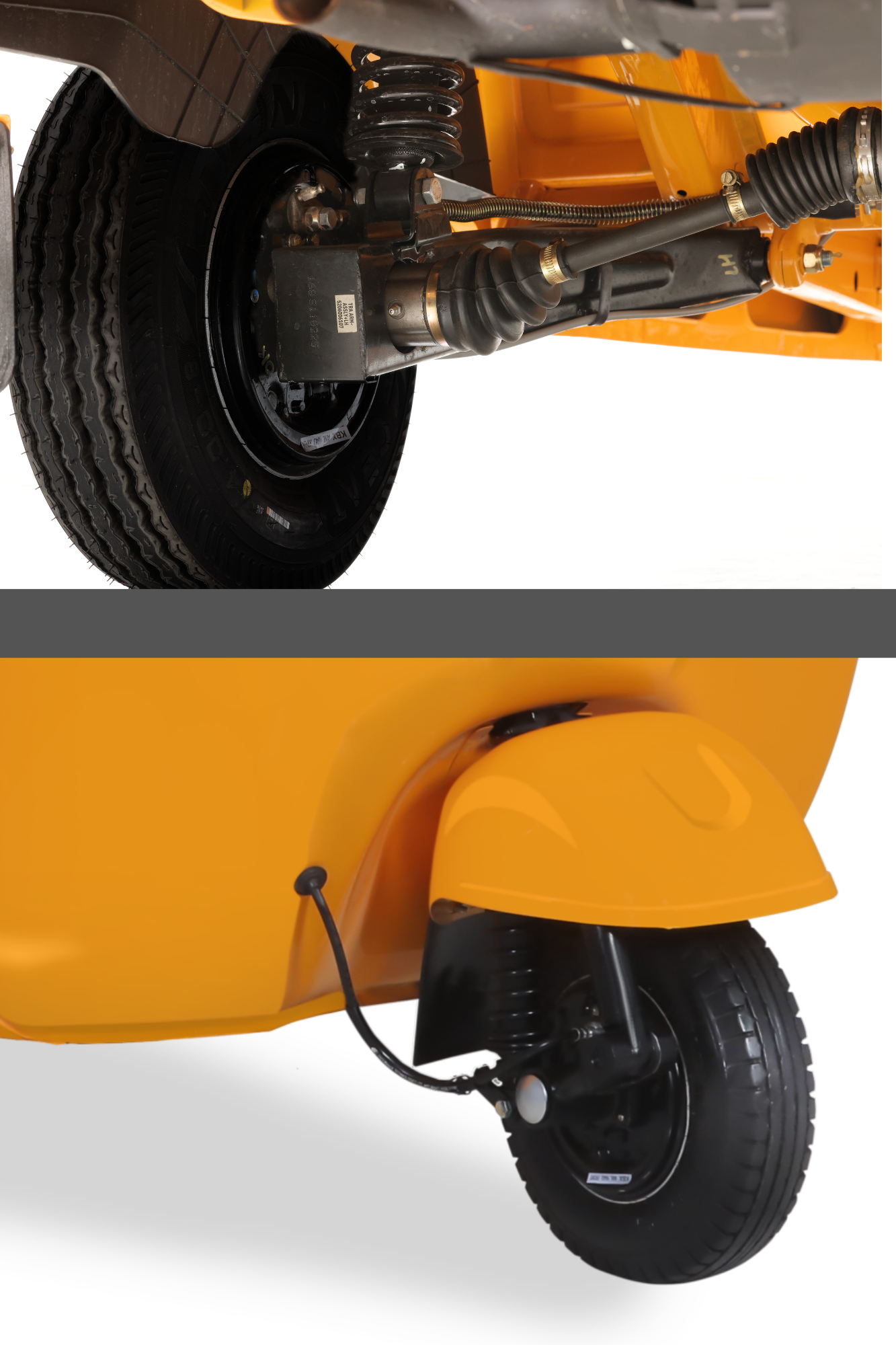

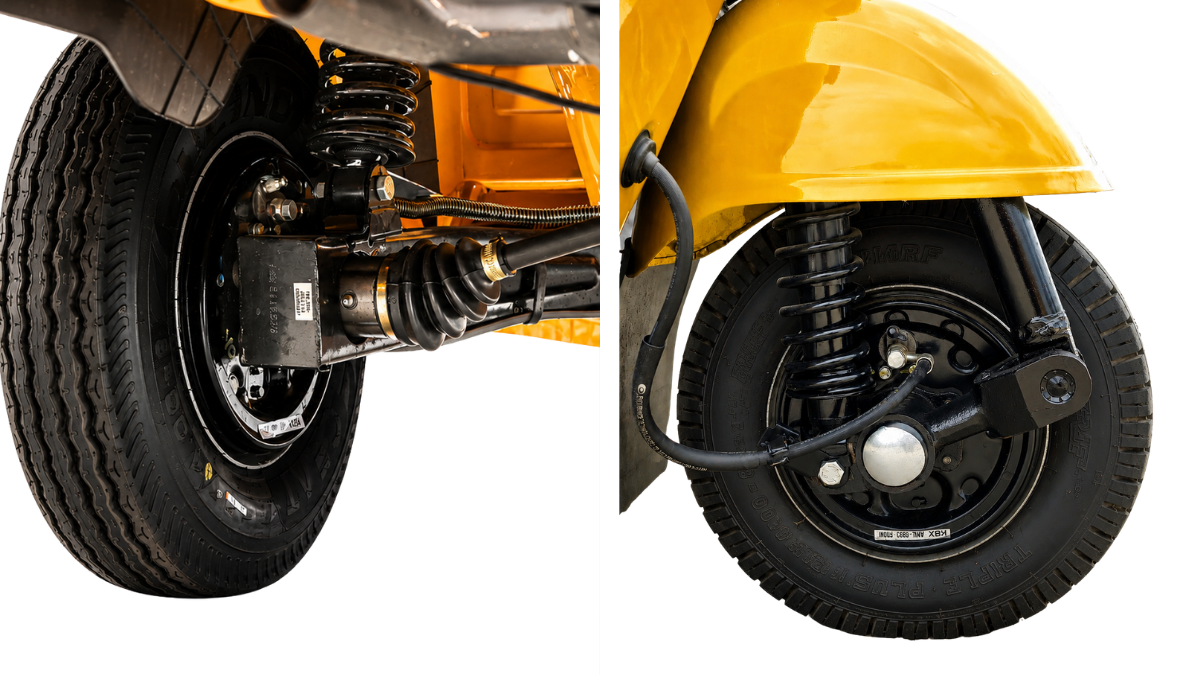

Steering & Suspension
| Suspension type | – | Column and strut type suspension system |
| Front Suspension | – | Helical Compression Spring & Shock Absorber |
| Rear Suspension | – | Helical Compression Spring & Shock Absorber |

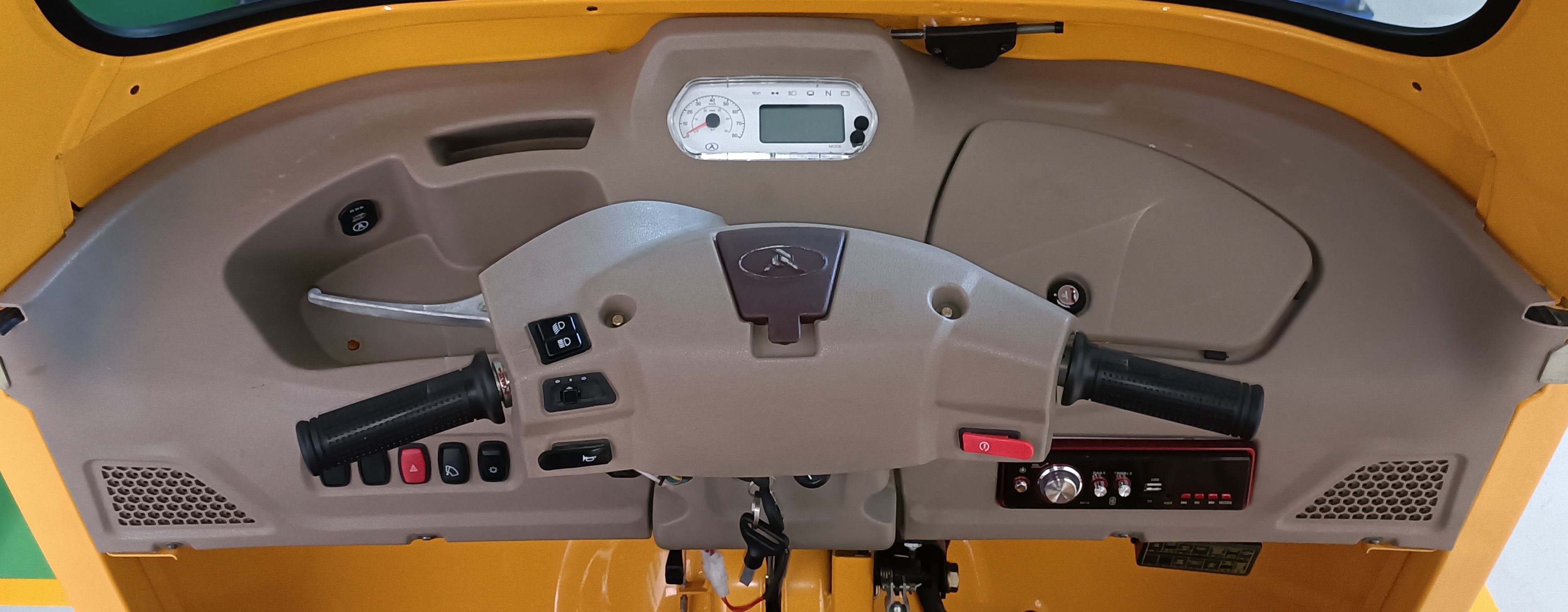

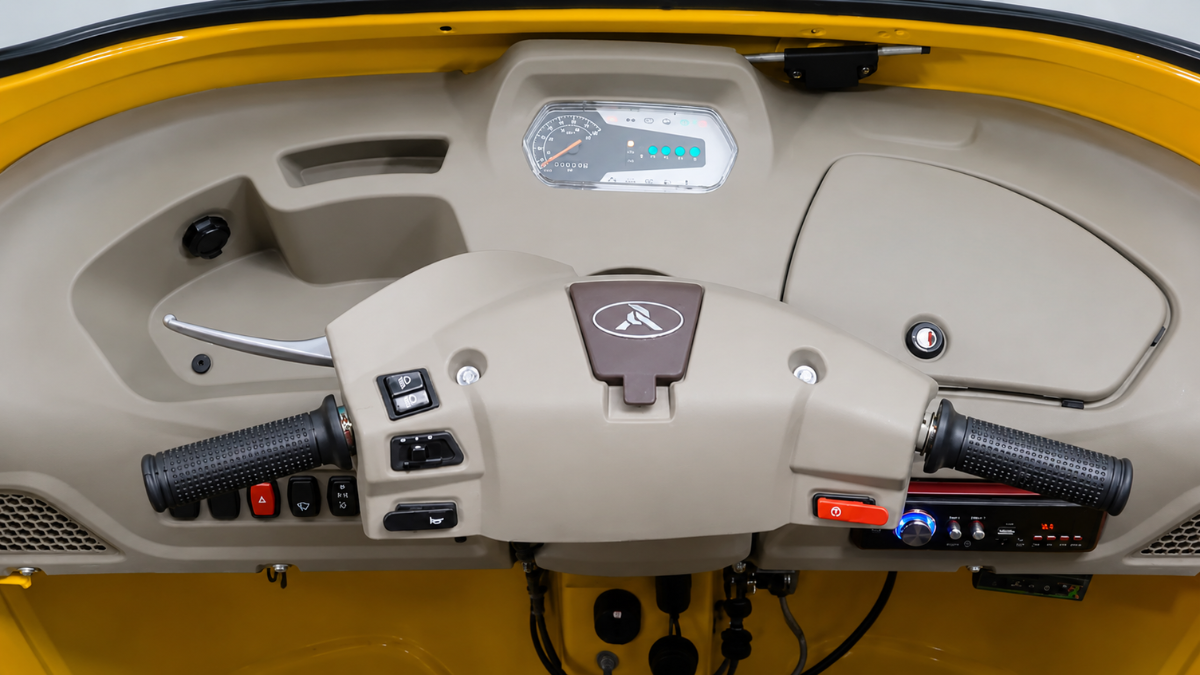

| Steering Type | – | Handle bar |
Brakes & Tyre
| Brake Type | – | Drum Type, Dual Circuit Hydraulic Front & Rear with TMC. |
| Parking brake | – | Hand operated, Ratchet & lever type, acting on rear wheel |

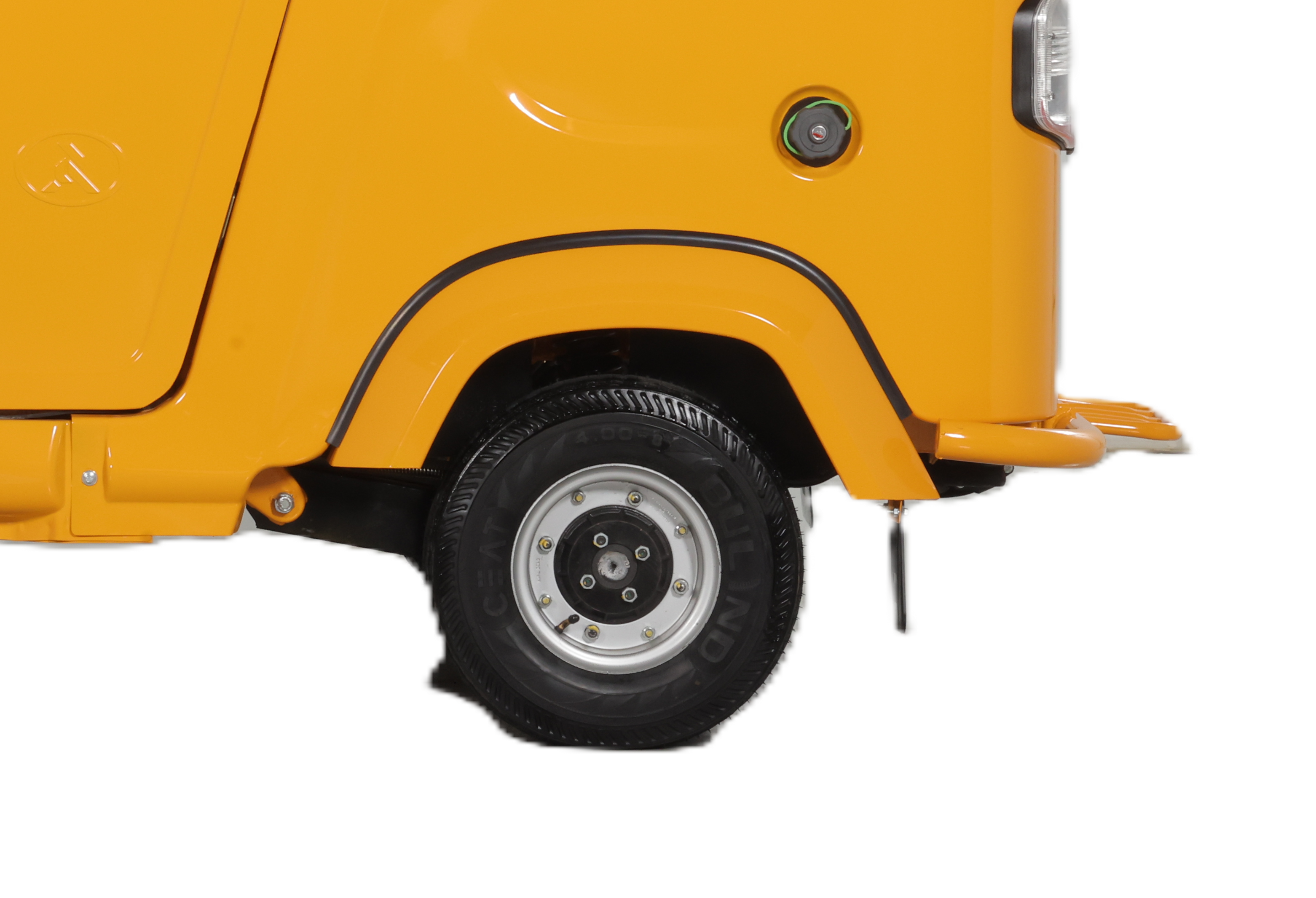

| Tyre size | – | 4 x 8 inch |
| Load index / Load rating | – | 364 kg-f (70) |

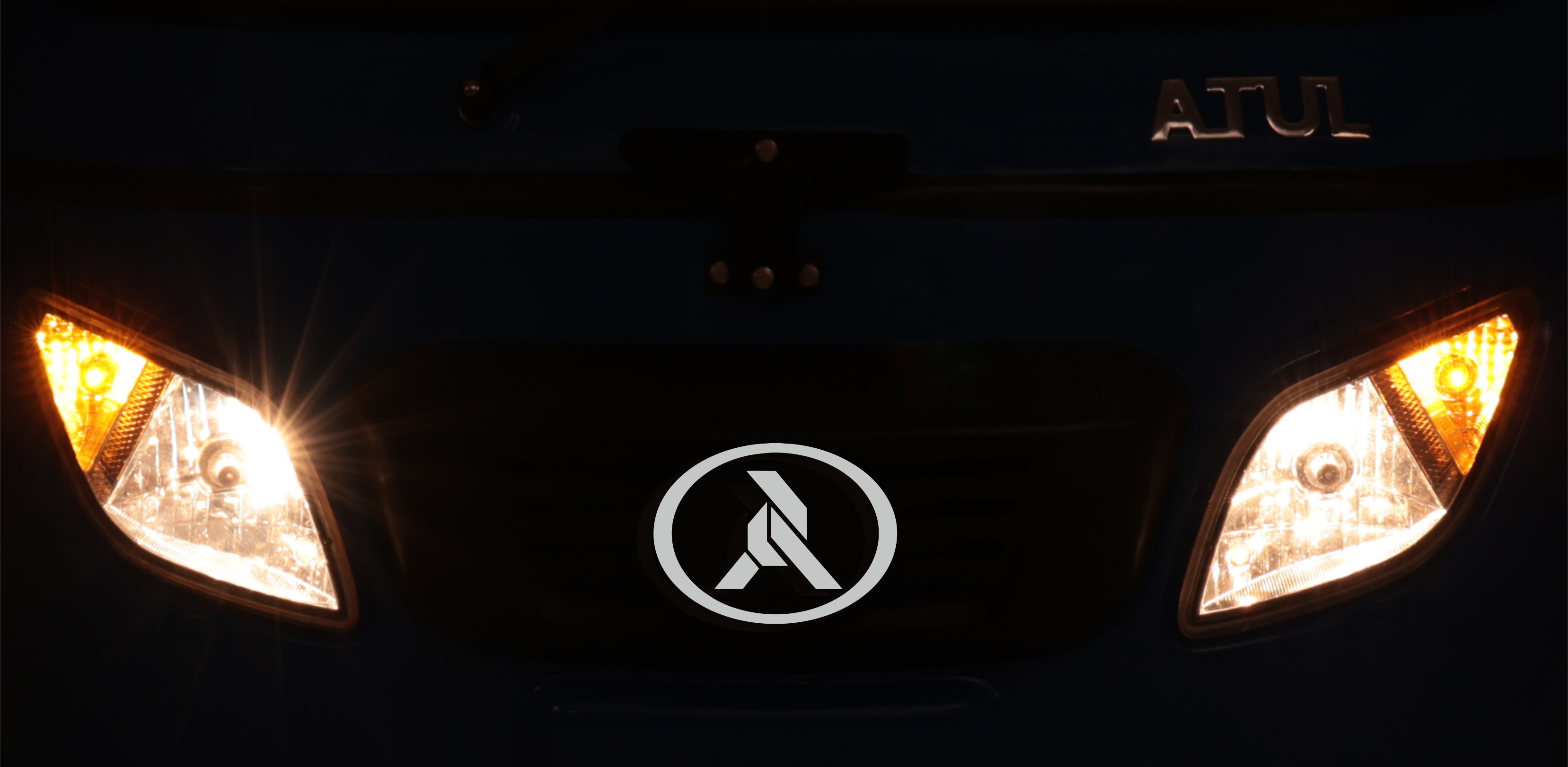

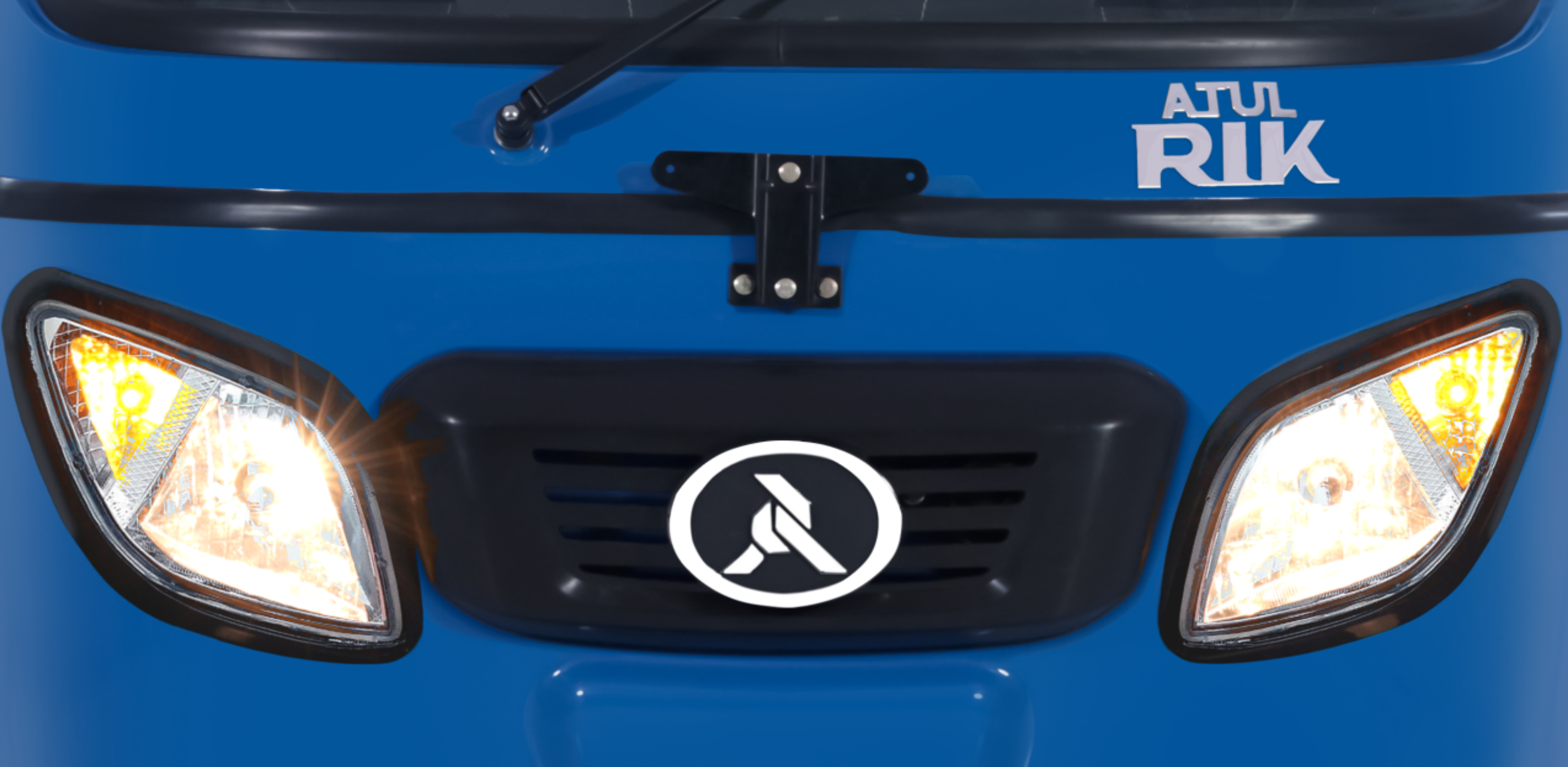

Electrical system
| System voltage (V) | – | 12V |
| Battery rating (Ah) | – | 12 V 35 Ah |
| Wiper motor | – | 12 V, 36W (Single blade) |
| Starter motor | – | 12V , 0.7 kw |

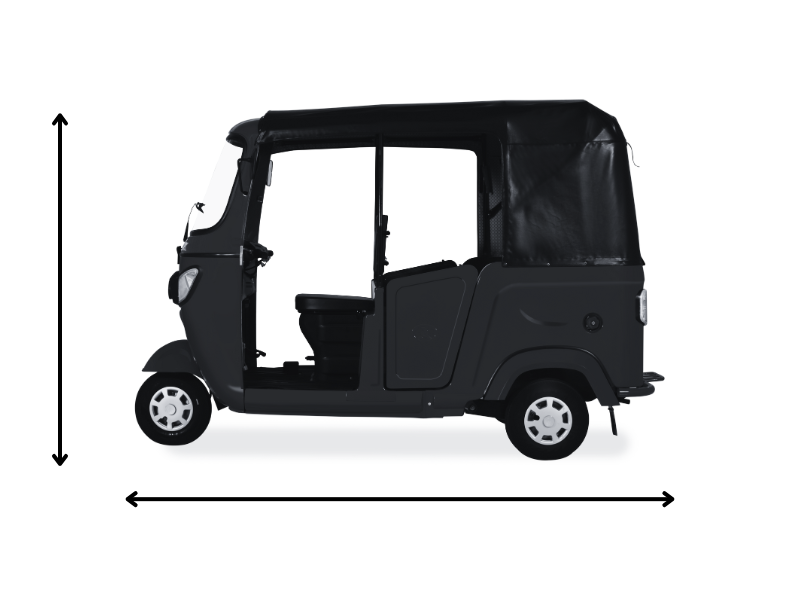

Dimensions
| Wheel base (mm) | – | 1950 mm |
| Overall width (mm) | – | 1420 mm |
| Overall length (mm) | – | 2765 mm |
| Overall height (mm) | – | 1800 mm |

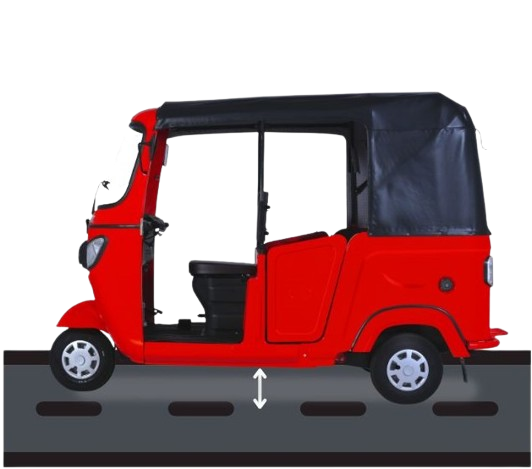

| Min. ground clearance (mm) | – | 185 mm |
| Turning radius (mm) | – | ~3000 mm |

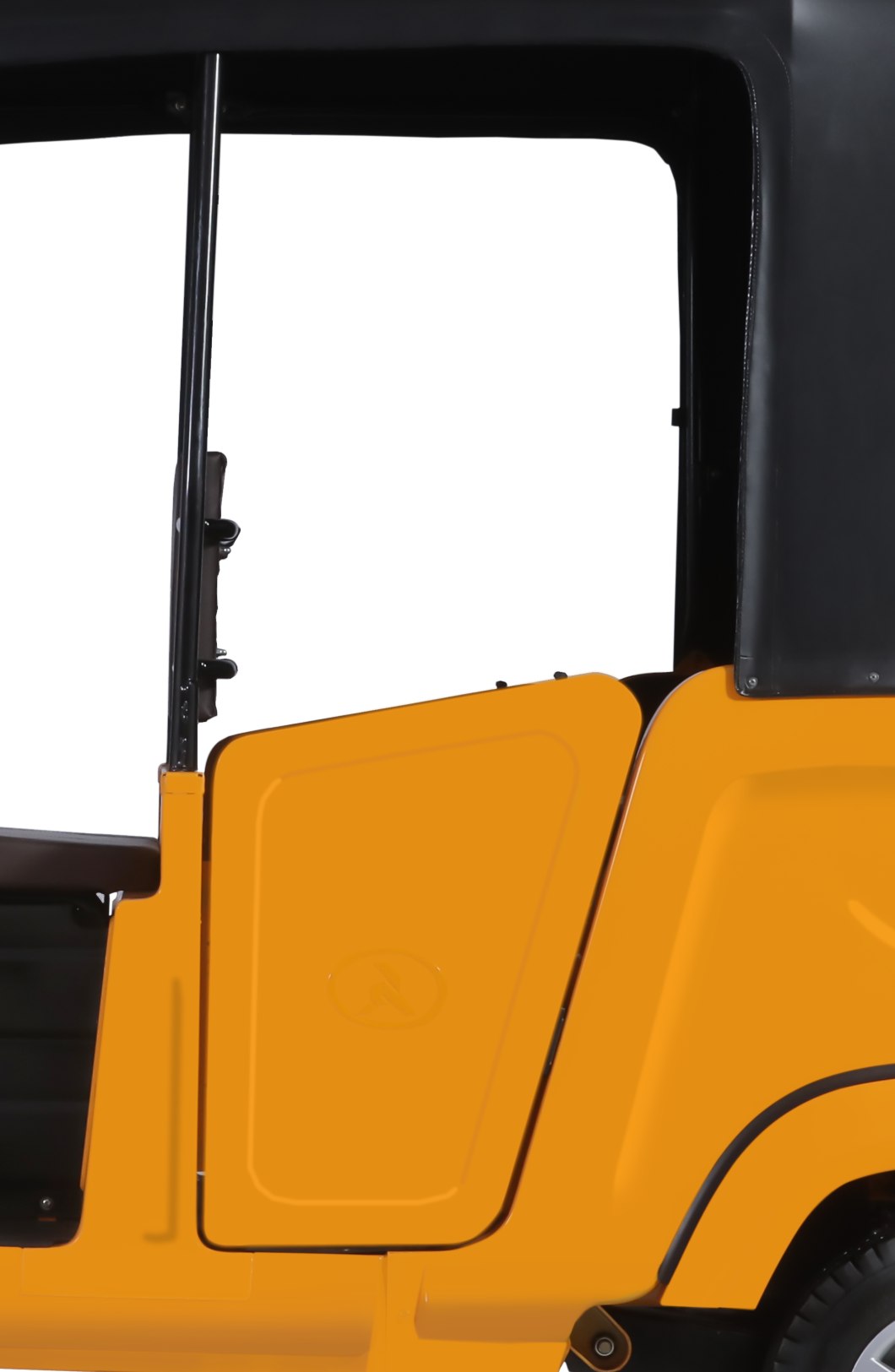

Body & Weights
| Maximum GVW kg (for rigid vehicles) | – | 748 kg |
| Kerb weight | – | 425 kg |
| Fuel Tank Capacity | – | 4.5 Kg : CNG 10.5 Litre : Petrol |
| Gradeability | – | 10.2 Degree |

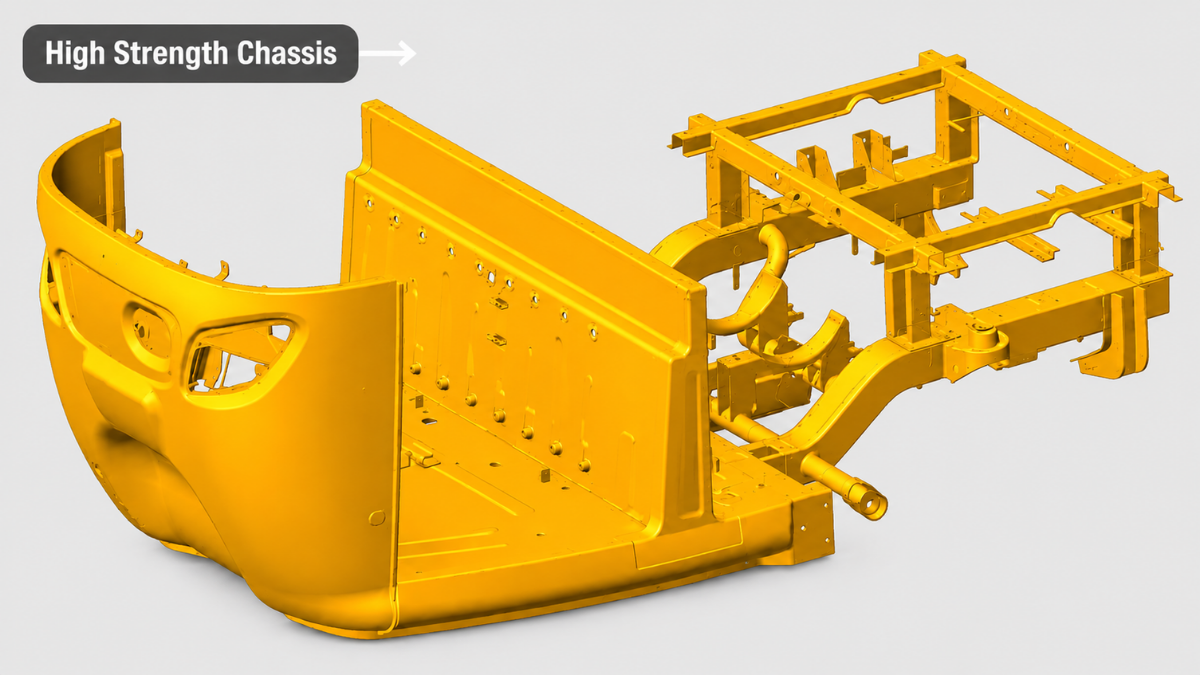

| Chassis Frame | – | Monocoque Type |

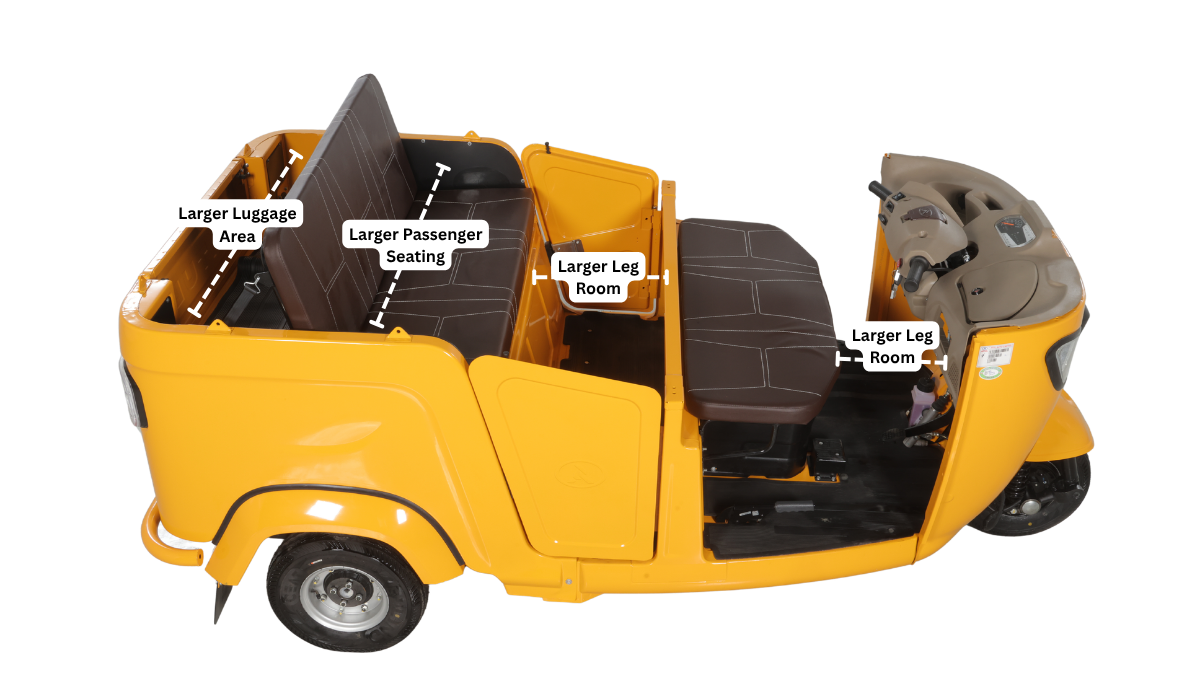

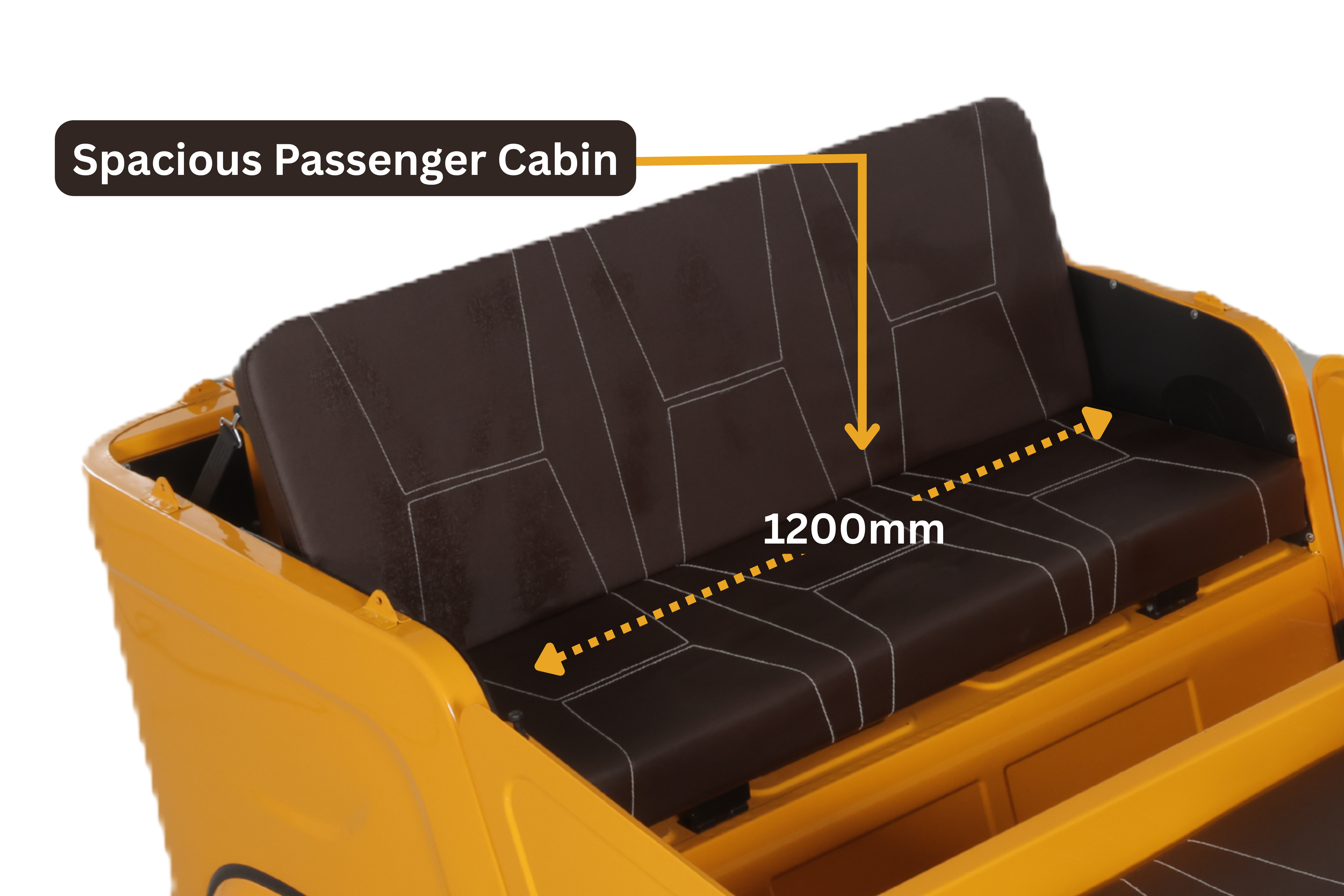

| Seating Capacity | – | 3 Passenger + 1 Driver |
